Vibrant Bar and Plate Intercoolers are designed and built to provide superior cooling efficiency and overall durability compared to tube and fin style intercoolers, resulting in these cores being suitable for even the most extreme racing conditions.Features:
- Air-to-Air Intercooler with End Tanks
- Aluminum, Bar and Plate Construction
- One Year Limited Warranty
- Approx. Flow Rate for this intercooler: 725 CFM at 1.5PSi pressure drop
- Approx. HP Rating for this intercooler: 550 HP
- Inlet/Outlet Neck Location: Center
- Core Width: 22" (Overall Width with End Tanks is 26")
- Core Height: 9.25"
- Core Thickness: 3.25"
- Inlet Diameter: 2.50"
- Outlet Diameter: 2.50"

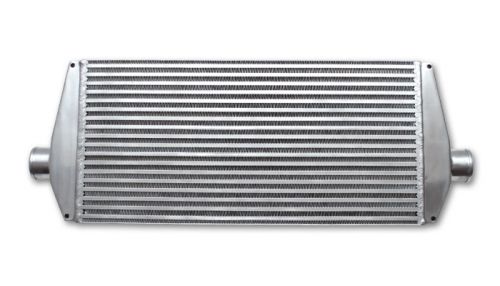

Images may be for reference only
This part does not have vehicle specific fitment
