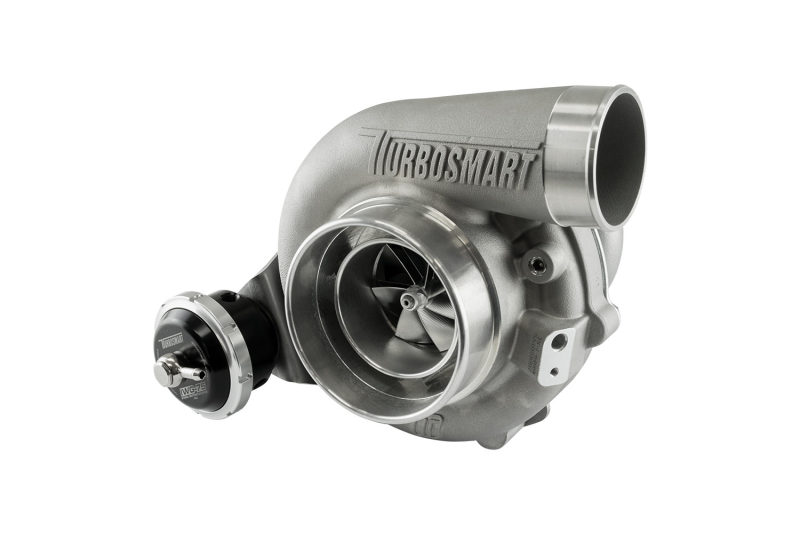

Images may be for reference only
Product Details
| Part Number: | TS-2-6466B-VB082I |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .82 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |
Smaller, Lighter, and Faster – Turbosmart’s turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.
Every Turbosmart turbocharger comes standard with everything you need for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings are included.
The TS-2 series are water and oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide the transient response you never knew possible with the type of performance, quality, reliability, and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds, which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
The TS-2 turbocharger series has taken an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines, while being smaller, lighter, and faster in response than other solutions on the market.
Features:
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-designed housings for optimal A/R’s and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate on the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 64mm
- Turbine Inlet: V-Band (2.25″)
- Turbine Exducer: 66mm
- Turbine AR: 0.82
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.06kg / 13.3lbs
- Horsepower Rating: 825-955HP
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
