Product Details
| Part Number: | TS-2-6262B-VB082I |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .82 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

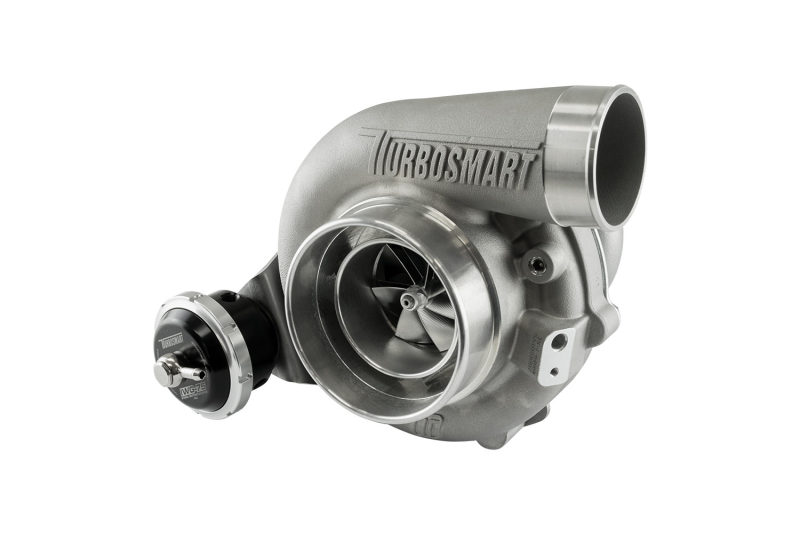

The Turbosmart TS-2-6262B-VB082I turbocharger is engineered for high-performance applications, combining advanced materials and innovative design to deliver smaller, lighter, and faster boosting capabilities. Ideal for motorsport and enthusiast vehicles, this turbocharger features water cooling technology that ensures optimal thermal management during high-stress operation, promoting durability and consistent performance. Its V-Band inlet and outlet connections facilitate secure and efficient installation, reducing setup time and improving reliability across demanding driving conditions.
Constructed with modern manufacturing techniques, the TS-2 series emphasizes weight reduction without compromising strength, making it suitable for a wide range of performance builds. The 0.82 A/R ratio provides a balanced airflow characteristic, promoting rapid spool times and increased responsiveness. Designed for ease of integration, this turbocharger is compatible with various exhaust systems and offers a robust foundation for tuning enthusiasts seeking to maximize their vehicle's power output.
Note that this product is not CARB approved and requires acknowledgment of this status prior to installation. Its compact dimensions and lightweight construction make it an excellent choice for applications where space and weight savings are critical, such as in competitive racing or custom builds. The TS-2 series' proven track record in motorsports underscores its reliability and performance consistency, making it a trusted component for serious tuners and performance shops alike.
Features:
- Water-cooled design for enhanced thermal management
- V-Band inlet and outlet for secure, quick installation
- 0.82 A/R ratio for rapid spool and responsiveness
- Optimized for smaller, lighter, and faster turbocharging needs
- Built with modern materials and manufacturing techniques for durability
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/R’s and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 62mm
- Turbine Inlet: V-Band (2.25″)
- Turbine Exducer: 62mm
- Turbine AR: 0.82
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.06kg / 13.3lbs
- Horsepower Rating: 760-880HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine Inlet and Outlet)
- 2 x V-Band Clamps (Turbine Inlet and Outlet)
- 1 x Oil drain gasket
- 1 x Water Line Fitting Kit
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
