Product Details
| Part Number: | TS-1-7880C-VB124E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | 1.24 A/R |
| Turbine Discharge Flange: | 3.5" V-Band |
| CARB Approved: | No |

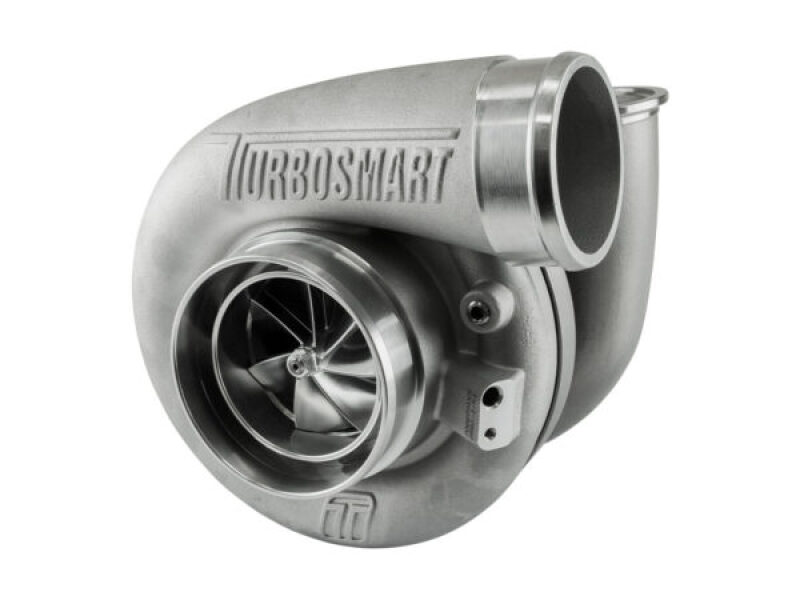

The Turbosmart TS-1 Oil Cooled V-Band External Wastegate Turbocharger is designed for high-performance automotive applications, delivering precise boost control and reliable operation. Featuring an external wastegate with a 1.24 A/R ratio, this turbocharger provides efficient exhaust flow management, ensuring optimal power delivery and responsiveness. The V-Band inlet and outlet connections facilitate easy installation and secure attachment, making this turbocharger suitable for custom setups and racing environments.
Constructed with robust materials, the TS-1 is engineered to withstand the rigors of high-temperature operation, with an oil-cooled design that promotes consistent performance and helps maintain proper operating temperatures. Its external wastegate allows for fine-tuning boost levels, providing versatility for various tuning needs.
Designed by Turbosmart, a trusted name in turbocharging technology, this model is ideal for enthusiasts seeking to enhance their vehicle's performance without compromising reliability. Please note that this product is not CARB approved and requires acknowledgment of this condition before installation. It is not intended for use where emissions compliance is mandated.
Overall, the Turbosmart TS-1 Turbocharger offers a combination of advanced features, durability, and ease of installation, making it a top choice for those aiming to maximize their vehicle's power potential while maintaining control over boost levels and exhaust flow.
Features:
- Oil-cooled design for consistent high-temperature performance
- V-Band inlet and outlet connections for secure, easy installation
- External wastegate with 1.24 A/R ratio for precise boost control
- Robust construction designed to withstand demanding conditions
- Compatible with custom and racing applications
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 78mm
- Turbine Inlet: V-Band (3.00″)
- Turbine Exducer: 80mm
- Turbine AR: 1.24
- Turbine Outlet: V-Band (3.50″)
- Weight: 9.63kg / 21.23 lbs
- Horsepower Rating: 1140-1350HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine Inlet and Outlet)
- 2 x V-Band Clamps (Turbine Inlet and Outlet)
- 1 x Oil drain gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
