Product Details
| Part Number: | TS-1-7675C-VB096E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .96 A/R |
| Turbine Discharge Flange: | 3.5" V-Band |
| CARB Approved: | No |

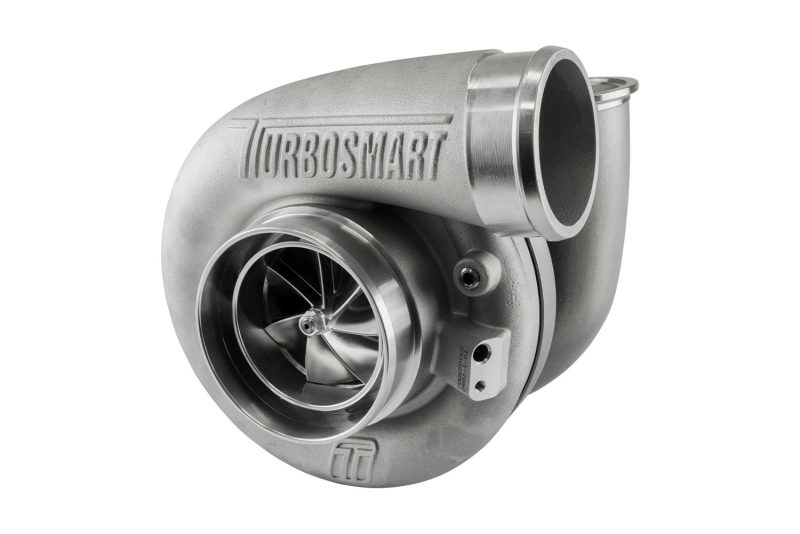

The Turbosmart TS-1-7675C-VB096E turbocharger is engineered for high-performance automotive applications, offering a compact and lightweight design that enhances engine efficiency and power output. Utilizing advanced materials and manufacturing techniques, this turbocharger delivers rapid spool times and improved responsiveness, making it ideal for motorsport and enthusiast builds. Its oil-cooled system ensures consistent thermal management, promoting durability and reliable operation under demanding conditions. The V-band inlet and outlet connections provide secure and straightforward installation, while the external wastegate allows precise boost control for optimized engine tuning. This model is suitable for those seeking a high-quality upgrade that balances performance, durability, and ease of integration. Built with a focus on modern performance needs, the TS-1 series meets strict standards and supports aggressive driving styles. Please note, this product is not CARB approved but requires acknowledgment of compliance for use in specific regions. Its compact size and efficient design make it an excellent choice for boosting small to medium-sized engines with a focus on speed and efficiency. Designed to meet the needs of performance enthusiasts and motorsport competitors, the Turbosmart TS-1-7675C-VB096E turbocharger enhances overall engine capability while maintaining a manageable footprint for installation in a variety of vehicle platforms.
Features:
- Oil-cooled system for consistent thermal management
- V-band inlet and outlet connections for secure installation
- External wastegate for precise boost control
- Compact and lightweight design for improved responsiveness
- High-performance materials for durability under demanding conditions
- Designed for motorsport and enthusiast applications
- Modern manufacturing techniques for optimized efficiency
- Supports aggressive driving styles and tuning flexibility
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 76mm
- Turbine Inlet: V-Band (3.00″)
- Turbine Exducer: 75mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.50″)
- Weight: 9.63kg / 20.23lbs
- Horsepower Rating: 1100-1290HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine inlet and outlet)
- 2 x V-Band Clamps (Turbine inlet and outlet)
- 1 x Oil drain gasket
