Product Details
| Part Number: | TS-1-7675C-T4096E |
| Brand: | Turbosmart |
| Turbo Flange: | T4 |
| Exhaust Housing: | .96 A/R |
| Turbine Discharge Flange: | 3.5" V-Band |
| CARB Approved: | No |

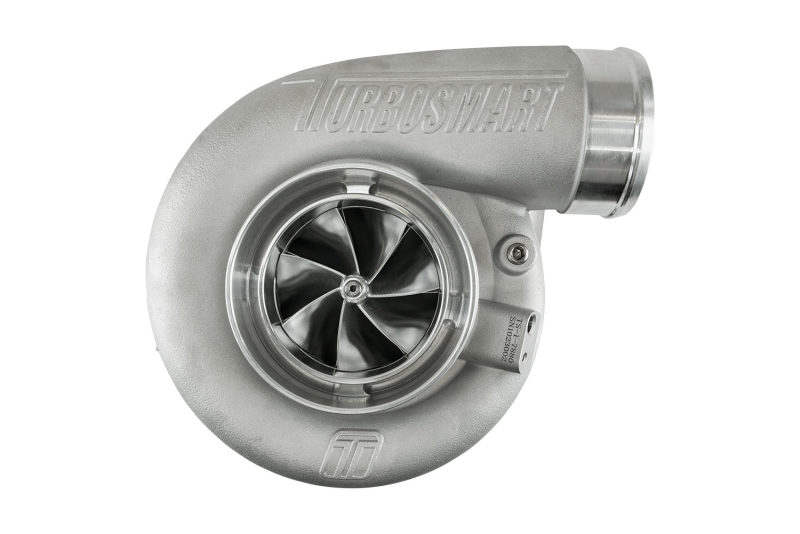

The Turbosmart TS-1-7675C-T4096E turbocharger delivers high performance and reliability for motorsport and enthusiast applications. Designed with modern materials and manufacturing techniques, this turbocharger offers a smaller, lighter, and faster solution for boosting engine power. Its oil-cooled design ensures efficient heat management, contributing to longevity and consistent performance under demanding conditions. The T4 flange inlet combined with a V-Band outlet provides a versatile and secure connection suitable for a range of high-performance setups. The A/R ratio of 0.96 balances spool time and airflow capacity, making this turbo ideal for achieving substantial power gains without sacrificing responsiveness. Crafted for those who demand precision and durability, this turbocharger is a valuable upgrade for turbocharged engines seeking enhanced performance and efficiency. Its compact size and robust construction make it suitable for a variety of motorsport and performance vehicle applications. Engineered to meet the needs of modern enthusiasts, the Turbosmart TS-1 series incorporates advanced design principles to optimize airflow, heat dissipation, and overall turbo response. Whether upgrading an existing setup or building a new high-powered engine, this turbocharger provides the performance edge necessary for competitive racing or spirited driving. The unit is not CARB approved but complies with Prop 65 safety standards, ensuring peace of mind for users concerned with health and environmental regulations. Easy to install and maintain, the TS-1-7675C-T4096E is a reliable choice for performance enthusiasts seeking to maximize their engine's potential.
Features:
- Oil-cooled design for efficient heat management and durability
- T4 flange inlet for versatile installation options
- V-Band outlet for secure and straightforward connection
- A/R ratio of 0.96 for optimal balance of spool time and airflow
- Compact size suitable for a variety of high-performance applications
- Constructed with modern materials for lightweight and high-speed operation
- Designed for motorsport and enthusiast use, balancing power and responsiveness
- Prop 65 compliant, ensuring safety standards are met
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 76mm
- Turbine Inlet: T4
- Turbine Exducer: 75mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.50″)
- Weight: 9.63kg / 20.23lbs
- Horsepower Rating: 1100-1290HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 1 x Weld Flange (Turbine outlet)
- 1 x V-Band Clamp (Turbine outlet)
- 1 x Oil drain gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
