Product Details
| Part Number: | TS-1-6870C-VR096E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .96 A/R |
| Turbine Discharge Flange: | 3.5" V-Band |
| CARB Approved: | No |

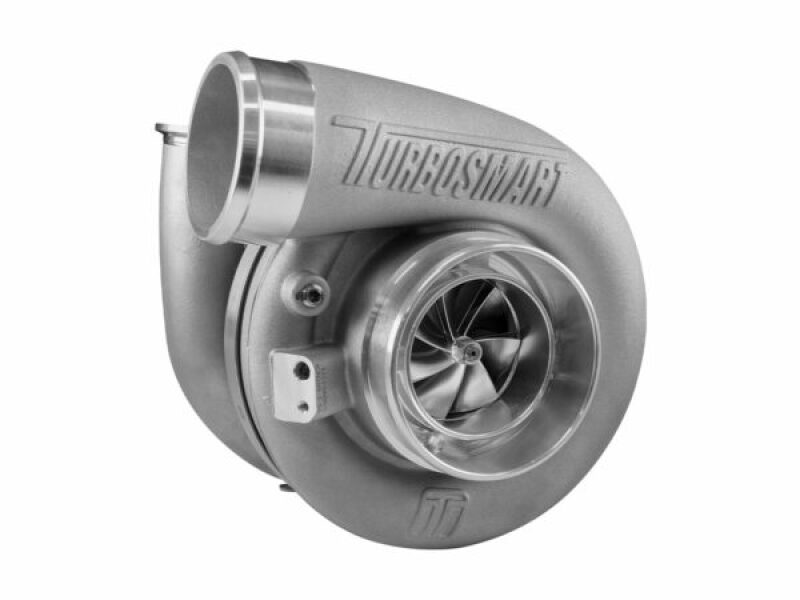

The Turbosmart TS-1 6870C V-Band Reverse Rotation Turbocharger is designed for high-performance automotive applications. Featuring a compact design with a V-Band connection, this turbocharger offers ease of installation and a secure fit. The reverse rotation configuration is ideal for specific engine setups, providing improved boost response and efficiency. The turbine housing has a 0.96 aerodynamic ratio, optimizing airflow for enhanced power output and responsiveness. Constructed with durable materials, the TS-1 series ensures reliable operation under demanding conditions. This turbocharger is suitable for enthusiasts seeking to upgrade their vehicle's performance with a high-quality, externally wastegated setup. It's engineered to deliver consistent power delivery and improved throttle response, making it an excellent choice for street and track applications. The unit is compatible with various engine configurations, offering flexibility for customization and tuning. Please note, this product is not CARB approved and requires acknowledgment of compliance when installed in California or other regions with emissions regulations. Designed with precision engineering, the Turbosmart TS-1 6870C turbocharger provides a significant upgrade over stock components, delivering increased horsepower and torque for a competitive edge and driving excitement.
Features:
- V-Band connection for secure and quick installation
- Reverse rotation design optimized for specific engine configurations
- 0.96 aerodynamic ratio for enhanced airflow and power
- Externally wastegated for precise boost control
- Durable construction for reliable high-performance operation
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/R’s and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
Specifications:
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 68mm
- Turbine Inlet: V-Band (3.00″)
- Turbine Exducer: 70mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.50″)
- Weight: 9.63kg / 20.23lbs
- Horsepower Rating: 875-1035HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine Inlet and Outlet)
- 2 x V-Band Clamps (Turbine Inlet and Outlet)
- 1 x Oil drain gasket
