Product Details
| Part Number: | TS-1-6870B-VR107E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | 1.07 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

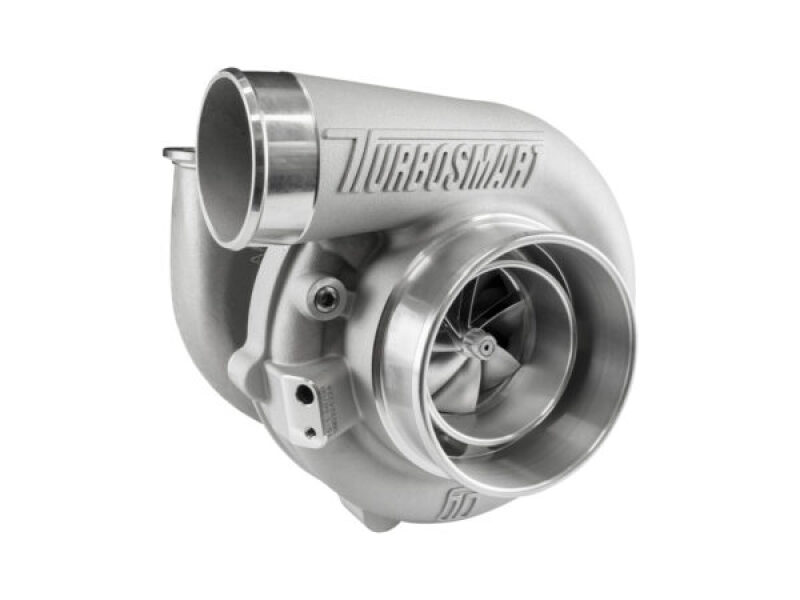

The Turbosmart TS-1 6870B V-Band Turbocharger is engineered for high-performance automotive enthusiasts seeking reliable power delivery. Designed with a reverse rotation configuration, this turbocharger is ideal for engines requiring a clockwise spin, ensuring compatibility with a range of custom setups. The externally wastegated design provides precise boost control, allowing for optimized tuning and enhanced engine response. Featuring a 1.07A/R ratio, this turbo supports efficient airflow and quick spool times, making it suitable for both street and track applications. Crafted with durable materials and precision manufacturing, the Turbosmart TS-1 is built to withstand demanding conditions while maintaining consistent performance. Its V-band connection simplifies installation and maintenance, reducing downtime and ensuring a secure fit. This model is not CARB approved, so it is intended for off-road or racing use only, but it meets all other industry standards for quality and durability. Whether upgrading an existing turbo system or building a custom setup, the Turbosmart TS-1 offers the performance and reliability necessary for competitive racing or high-performance street driving. Installing this turbocharger can significantly improve your vehicle's power output, throttle response, and overall driving experience, making it a valuable addition to your automotive arsenal.
Features:
- Reverse rotation design suitable for specific engine configurations
- V-Band connection for quick installation and secure fit
- Externally wastegated for precise boost control
- Compressor A/R ratio of 1.07 for efficient airflow and quick spool
- Durable construction engineered for high-performance applications
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate on the center housing
Specifications:
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 68mm
- Turbine Inlet: V-Band (2.25″)
- Turbine Exducer: 70mm
- Turbine AR: 1.07
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.43kg / 14.17 lbs
- Horsepower Rating: 850-990HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine inlet & outlet)
- 2 x V-Band Clamps (Turbine inlet & outlet)
- Water Feed Fitting Kit
- 1 x Oil drain gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
