Product Details
| Part Number: | TS-1-6870B-VR096E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .96 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

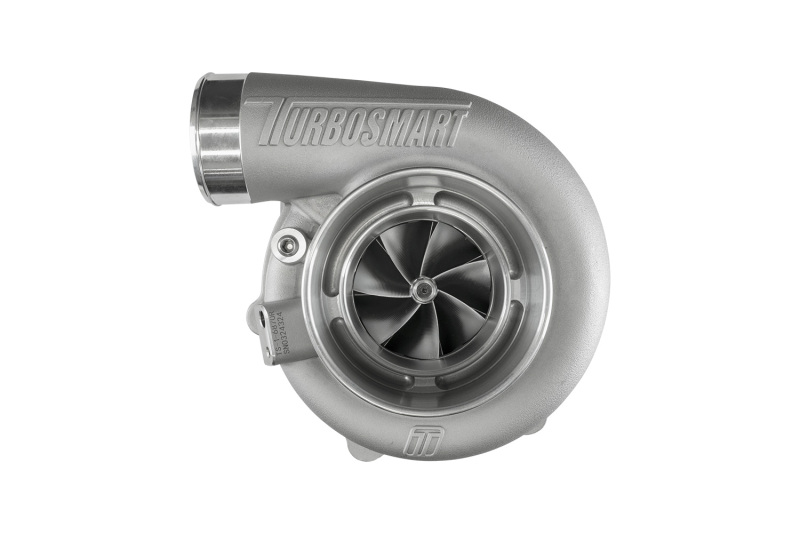

The Turbosmart TS-1 6870B V-Band Turbocharger is engineered for high-performance automotive applications, offering reliable power delivery with a reverse rotation design. Featuring a 0.96 AR compressor housing, this turbocharger delivers efficient airflow and boost response, making it suitable for a range of custom builds and upgrades. The V-band connection ensures a secure and easy installation, while the externally wastegated setup provides precise boost control for optimal performance. Constructed with quality materials, this turbocharger is designed to withstand demanding conditions and provide consistent results. It is ideal for enthusiasts seeking a durable and efficient turbo solution for their vehicle's forced induction system.
Features:
- V-band connection: Provides secure and quick installation and removal
- Reverse rotation design: Optimized for specific engine configurations and performance setups
- External wastegate: Allows precise boost regulation and improved turbo response
- 0.96 AR compressor housing: Balances airflow and boost for increased power output
- High-performance build: Designed for demanding automotive applications and durability
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
Specifications:
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 68mm
- Turbine Inlet: V-Band (3.00″)
- Turbine Exducer: 70mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.43kg / 14.17 lbs
- Horsepower Rating: 850-990HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flange (Turbine inlet and outlet)
- 2 x V-Band Clamp (Turbine inlet and outlet)
- 1 x Oil drain gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
