Product Details
| Part Number: | TS-1-6870B-VB096E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .96 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

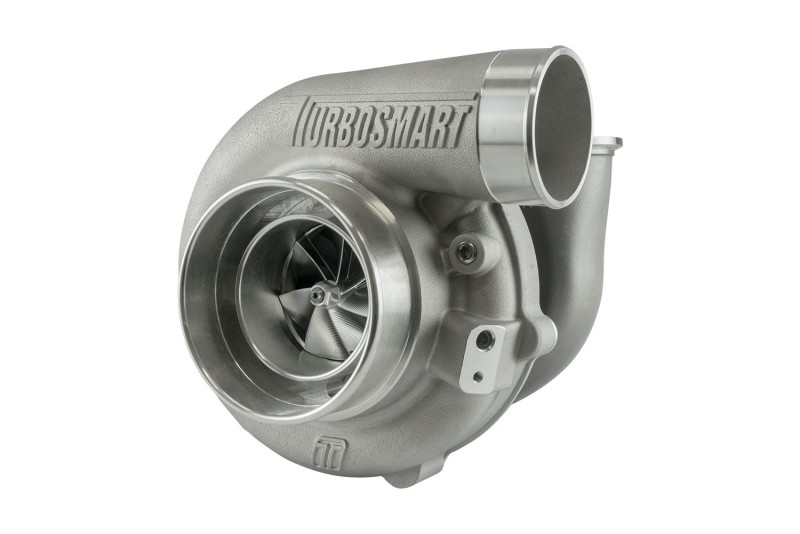

The Turbosmart TS-1-6870B-VB096E turbocharger is engineered for high-performance applications, combining innovative design with modern materials to deliver superior power and efficiency. Ideal for motorsport and enthusiast vehicles, this turbocharger features an oil-cooled system that ensures reliable thermal management under demanding conditions. The compact yet powerful design enables faster spool times and improved boost response, making it suitable for a wide range of high-performance builds.
Constructed with a V-band inlet and outlet, the TS-1 provides a secure and leak-proof connection, simplifying installation and maintenance. The external wastegate allows for precise boost control, enhancing overall engine performance and reliability. This model's aerodynamic A/R ratio of 0.96 balances airflow and exhaust gas velocity, optimizing power delivery across various engine setups. Crafted with high-quality components, the turbocharger is built to withstand intense racing conditions and prolonged use.
Designed with modern manufacturing techniques, the Turbosmart TS-1 is lighter and smaller than traditional turbochargers, reducing stress on engine components without sacrificing performance. Its compatibility with performance upgrades makes it a versatile choice for enthusiasts seeking to maximize their vehicle's potential. The turbocharger's durable construction and efficient cooling capabilities ensure consistent operation, even in extreme environments. Whether upgrading an existing setup or building a new high-powered engine, the Turbosmart TS-1-6870B-VB096E offers a reliable solution to achieve exceptional power gains and responsiveness.
Features:
- Oil-cooled design for efficient thermal management
- V-band inlet and outlet for secure connections
- External wastegate for precise boost control
- Aerodynamic A/R ratio of 0.96 for balanced airflow
- Compact and lightweight construction for performance and space efficiency
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 68mm
- Turbine Inlet: V-Band (3.00″)
- Turbine Exducer: 70mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.43kg / 14.17 lbs
- Horsepower Rating: 850-990HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flange (Turbine inlet and outlet)
- 2 x V-Band Clamp (Turbine inlet and outlet)
- 1 x Oil drain gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
