Product Details
| Part Number: | TS-1-6870B-T4096E |
| Brand: | Turbosmart |
| Turbo Flange: | T4 |
| Exhaust Housing: | .96 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

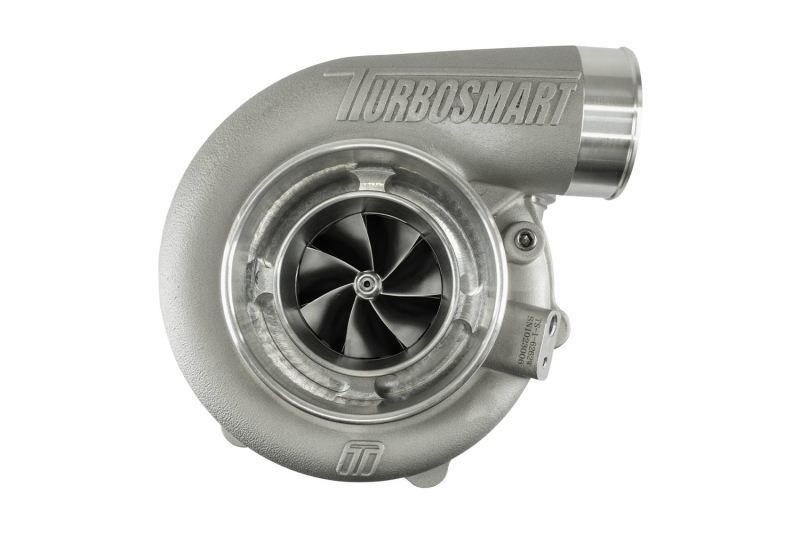

The Turbosmart TS-1 series turbocharger delivers a compact and lightweight solution for high-performance applications, combining advanced materials and innovative design to meet the demands of motorsport and enthusiast markets. Engineered for superior boost and responsiveness, this turbocharger features a precision V-Band outlet and T4 flange, ensuring a secure fit and optimal airflow. Its oil-cooled design enhances durability and thermal management during intense driving conditions, making it suitable for demanding automotive setups. The compact dimensions and reduced weight contribute to easier installation and improved vehicle handling, making it an ideal upgrade for performance-focused builds. Built with modern manufacturing techniques, the TS-1 turbocharger offers reliable power delivery and efficient operation, helping enthusiasts maximize their vehicle's potential.
Features:
- Oil-cooled design for enhanced durability and thermal stability
- V-Band outlet for secure connection and ease of installation
- T4 flange compatible with a wide range of turbo manifolds
- Compact size and lightweight construction for performance applications
- Engineered with modern materials for improved strength and responsiveness
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 68mm
- Turbine Inlet: T4
- Turbine Exducer: 70mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.86kg / 15.1lbs
- Horsepower Rating: 850-990HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 1 x Weld Flange (Turbine outlet)
- 1 x V-Band Clamp (Turbine outlet)
- 1 x Oil drain gasket
