Product Details
| Part Number: | TS-1-6466B-VR082E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .82 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

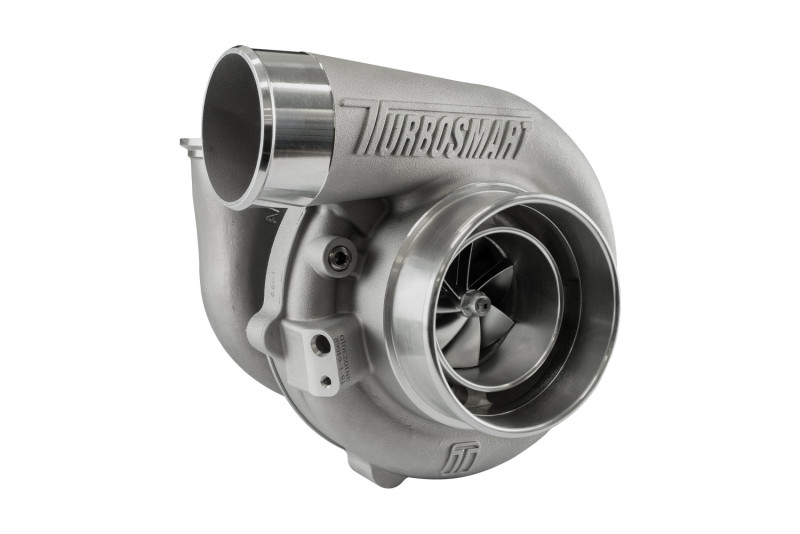

The Turbosmart TS-1-6466B-VR082E turbocharger is engineered for high-performance applications, offering a compact and lightweight design that enhances vehicle power and efficiency. Built with modern materials and manufacturing techniques, this turbocharger is suitable for both motorsport and enthusiast setups seeking reliable and rapid boost response. Its oil-cooled design ensures effective heat management during intense driving conditions, providing consistent performance even under demanding loads. The reverse rotation configuration allows for versatile installation options, making it an ideal choice for custom builds and advanced tuning projects. Featuring a V-band inlet and outlet, the TS-1 series enables easy installation and maintenance, reducing downtime and complexity in your upgrade process. Designed to meet the needs of serious drivers, this turbocharger delivers impressive airflow and boost capabilities, helping maximize engine output without sacrificing reliability. The part is not CARB-approved, and acknowledgment of this is required for compliance, but it adheres to Prop 65 regulations for safety and environmental standards. Whether you're upgrading a race car or enhancing a street machine, the Turbosmart TS-1-6466B-VR082E provides the performance edge needed for competitive and recreational driving alike.
Features:
- Oil-cooled design for efficient heat dissipation
- Reverse rotation configuration for flexible installation
- V-band inlet and outlet for easy mounting and removal
- Compact and lightweight construction for improved vehicle dynamics
- High-quality materials utilizing modern manufacturing techniques
- Designed for motorsport and high-performance automotive applications
- Provides rapid spool and boost response for superior acceleration
- Requires acknowledgment of non-CARB approval for installation
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal AR’s and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 64mm
- Turbine Inlet: V-Band (2.25″)
- Turbine Exducer: 66mm
- Turbine AR: 0.82
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.06kg / 13.3lbs
- Horsepower Rating: 825-955HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine inlet and outlet)
- 2 x V-Band Clamps (Turbine inlet and outlet)
- 1 x Oil drain gasket
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
