Images may be for reference only
Product Details
| Part Number: | TS-1-6262B-VB082E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .82 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

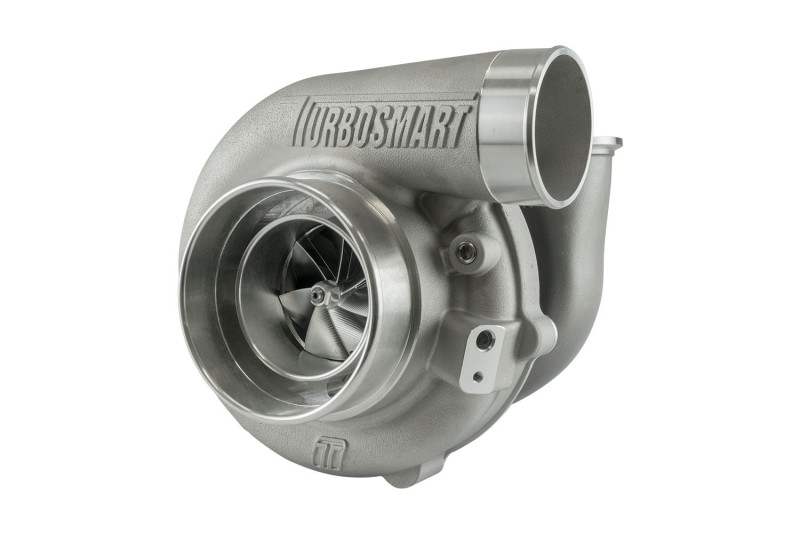

Designed for high-performance applications, the Turbosmart TS-1-6262B-VB082E turbocharger features advanced engineering to deliver rapid spool times and exceptional boost response. This model benefits from modern materials and manufacturing techniques, making it suitable for motorsport and enthusiast use. Its oil-cooled design ensures consistent performance under demanding conditions, extending the lifespan of the turbocharger and maintaining optimal operation. The V-band inlet and outlet connections facilitate quick installation and secure attachment, reducing downtime during upgrades or repairs. Equipped with an external wastegate, this turbocharger offers precise boost control to optimize engine performance across a range of driving scenarios and tuning setups. Crafted by Turbosmart, a trusted name in performance turbocharging, this unit is engineered to meet the rigorous demands of high-performance automotive applications, ensuring durability and reliable operation. Its compact size and lightweight design make it an excellent choice for applications where space and weight are critical considerations. Whether upgrading a performance street build or a competitive motorsport vehicle, the TS-1 series provides a balance of efficiency, power, and durability that meets the needs of enthusiasts and professionals alike.
Features:
- Oil-cooled design for consistent high-performance operation
- V-band inlet and outlet connections for quick installation
- External wastegate for precise boost control
- Modern materials and manufacturing techniques for durability
- Compact and lightweight construction suitable for various applications
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal AR’s and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 62mm
- Turbine Inlet: V-Band (2.25″)
- Turbine Exducer: 62mm
- Turbine AR: 0.82
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.06kg / 13.3lbs
- Horsepower Rating: 760-880HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine inlet and outlet)
- 2 x V-Band Clamps (Turbine inlet and outlet)
- 1 x Oil drain gasket
