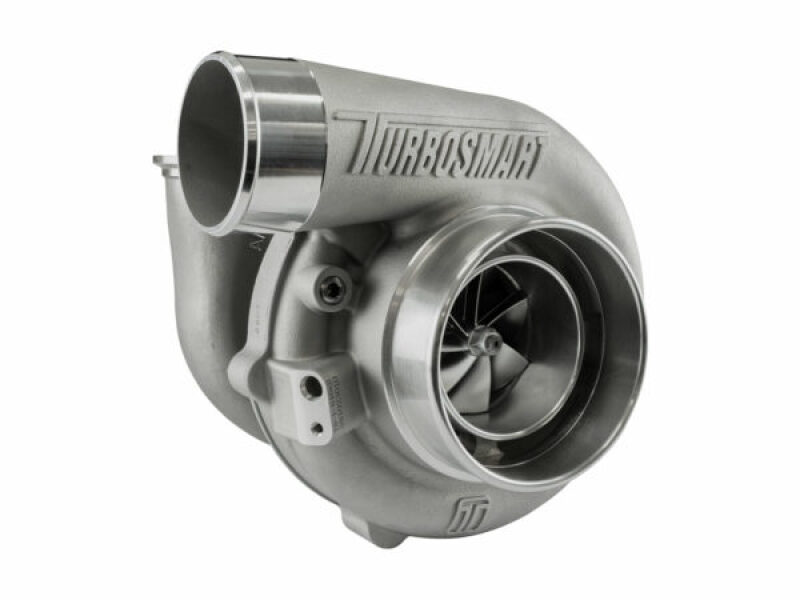

The Turbosmart TS-1 5862V-BR082E turbocharger is engineered for high-performance automotive applications requiring reliable boost and precise control. Featuring a reverse rotation design, this turbocharger is ideal for specialized engine configurations where reverse spin is necessary. Its V-band clamp connection ensures a secure and straightforward installation, minimizing downtime and simplifying maintenance. The externally wastegated setup allows for superior boost regulation, providing enhanced responsiveness and efficiency during demanding driving conditions. Constructed with durable materials, this turbocharger is designed to withstand high temperatures and pressures, ensuring long-lasting performance under extreme operating environments.

Designed with a 0.82 A/R ratio, the TS-1 turbo offers a balanced combination of low-end torque and top-end power, making it suitable for a variety of high-performance vehicles. Its compact dimensions make it adaptable to a range of engine bay layouts, while the external wastegate allows for precise tuning of boost levels. The turbocharger's reverse rotation feature provides compatibility with specific engine configurations, reducing the risk of oil starvation or compressor surge. It is important to note that this product is not CARB-approved and requires CARB acknowledgment for legal use in California. The unit is not intended for air freight shipping and complies with all relevant safety standards for automotive use.

Designed by Turbosmart, a trusted name in turbocharging technology, this TS-1 turbocharger offers a combination of innovative engineering and robust construction. Whether upgrading an existing turbo system or building a custom setup, the TS-1 5862V-BR082E provides the performance and reliability needed for competitive racing, off-road adventures, or street performance enhancements.

Features:

• Reverse rotation design suitable for specific engine configurations
• V-band clamp connection for secure and easy installation
• Externally wastegated for precise boost control
• 0.82 A/R ratio providing a balanced performance profile
• Durable construction capable of handling high temperatures and pressures
• Unparalleled transient response
• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight Aluminium compressor covers
• CFD-driven designed housings for optimal A/Rs and flow
• 713C Inconel turbine wheel for extreme EGTs
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate in the center housing

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 58mm
• Turbine Inlet: V-Band (2.25″)
• Turbine Exducer: 62mm
• Turbine AR: 0.82
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 725-835HP
