Product Details
| Part Number: | TS-1-5862B-VB082E |
| Brand: | Turbosmart |
| Turbo Flange: | V-band |
| Exhaust Housing: | .82 A/R |
| Turbine Discharge Flange: | 3" V-Band |
| CARB Approved: | No |

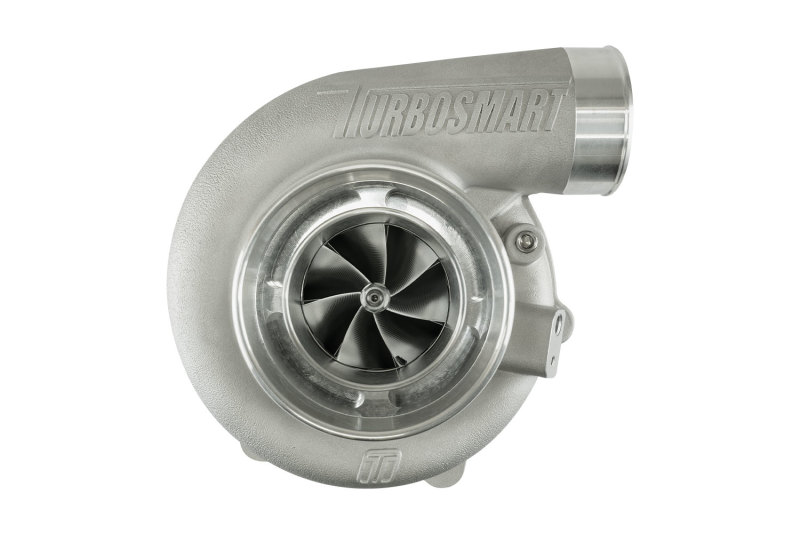

The Turbosmart TS-1-5862B-VB082E turbocharger is engineered for high-performance applications, combining modern materials and advanced manufacturing techniques to deliver reliable power gains. Designed for motorsport enthusiasts and performance aficionados, this turbocharger features an oil-cooled system that ensures efficient heat dissipation during demanding driving conditions. Its compact and lightweight design minimizes installation space and weight, making it suitable for a wide range of high-performance vehicles.
Featuring a V-Band inlet and outlet configuration, the TS-1-5862B-VB082E offers seamless installation and secure connections. The external wastegate provides precise boost control, allowing for tuning tailored to specific engine setups. This model boasts an A/R ratio of 0.82, optimizing airflow for quicker spool times and improved throttle response. Built to withstand the rigors of motorsport, it leverages high-quality materials to ensure durability and consistent performance over time.
Whether upgrading an existing turbo system or building a custom setup, the Turbosmart TS-1-5862B-VB082E provides the performance and reliability needed for competitive racing or street performance enhancement. Its versatile design makes it suitable for various engine configurations, delivering increased horsepower and torque while maintaining efficient operation. Proper installation and tuning are recommended to maximize the benefits of this high-performance turbocharger.
Features:
- Oil-cooled design for efficient heat management during high-performance use
- V-Band inlet and outlet for easy installation and secure fitting
- External wastegate for precise boost regulation
- A/R ratio of 0.82 for optimized airflow and quick spool
- Compact and lightweight construction suitable for motorsport applications
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight Aluminium compressor covers
- CFD-driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGTs
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate in the center housing
- Compressor Inlet: 4″ / 101.6mm
- Compressor Inducer: 58mm
- Turbine Inlet: V-Band (2.25″)
- Turbine Exducer: 62mm
- Turbine AR: 0.82
- Turbine Outlet: V-Band (3.00″)
- Weight: 6.06kg / 13.3lbs
- Horsepower Rating: 725-835HP
Supplied With:
- 1 x Turbosmart Performance Turbocharger
- 2 x Weld Flanges (Turbine inlet and outlet)
- 2 x V-Band Clamps (Turbine inlet and outlet)
- 1 x Oil drain gasket
