Product Details
| Part Number: | TS-0804-1004 |
| Brand: | Turbosmart |
| Color: | Black |
| Size: | -4AN |

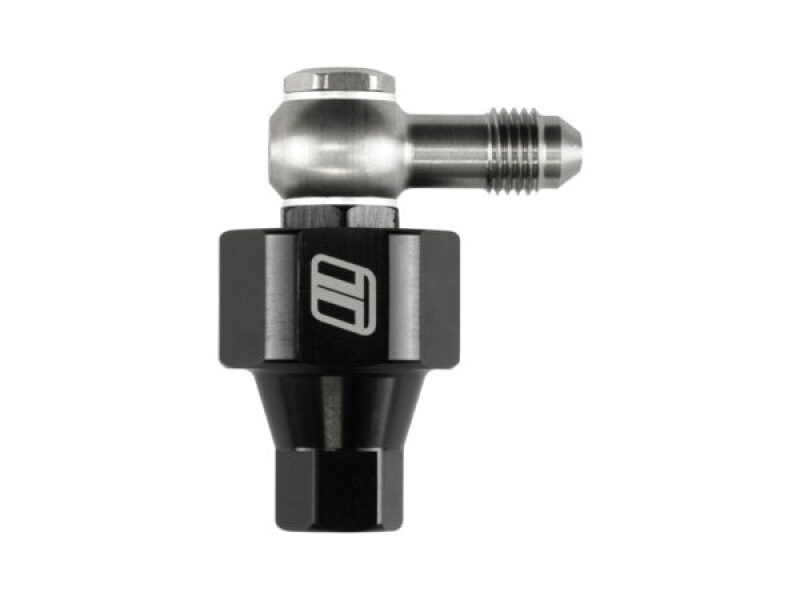

Protect your turbocharger from harmful oil-borne debris with the Turbosmart TS-0804-1004 Turbocharger Direct-Mount Oil Filter. Designed specifically for turbocharger oil-feed systems, this compact filter mounts directly at the turbo oil inlet, providing an additional layer of protection for the turbocharger's sensitive bearing system without requiring a bulky remote filter installation.
The TS-0804-1004 uses a high-flow 44-micron pleated stainless-steel filter element engineered to capture potentially damaging contaminants while minimizing restriction to the turbocharger's oil supply. Unlike disposable filters, the stainless element is washable and serviceable, allowing it to be inspected and cleaned as part of regular oil-change maintenance.
Constructed from 6061-T6 billet aluminum with a hard-anodized finish, the filter is built for demanding performance and motorsport environments. Its integrated -4AN male banjo inlet provides installation flexibility in tight engine bays, while the -4AN female outlet connects directly to the turbocharger oil-feed fitting.
Features
- Genuine Turbosmart turbo oil-management component
- Turbosmart part number TS-0804-1004
- Compact direct-mount turbocharger oil-feed filter
- Designed to mount directly at the turbocharger oil inlet
- 44-micron filtration
- High-flow pleated stainless-steel filter element
- Washable and reusable filter element
- Serviceable design allows regular inspection and cleaning
- Helps prevent oil-borne contaminants from reaching sensitive turbocharger bearings
- Designed for maximum filtration with minimal oil-flow restriction
- -4AN male banjo inlet
- -4AN female outlet
- Banjo-style connection provides installation flexibility in tight engine compartments
- Precision-machined 6061-T6 billet aluminum construction
- Durable hard-anodized finish
- Compact housing minimizes additional oil-feed plumbing
- Excellent protection for high-performance and motorsport turbocharger systems
- Suitable for compatible Turbosmart turbochargers
- Can also be used with other turbocharger brands when the oil-feed connections and requirements are compatible
- Ideal for turbocharged street, drag, circuit, time-attack, and competition vehicles
- Australian-made, motorsport-quality construction
- Replacement/service filter components are available separately
- Includes Turbosmart oil filter assembly and Turbosmart sticker
Compact Direct-Mount Design
- Traditional inline turbo oil filters can require additional hose, fittings, and mounting space. Turbosmart developed the TS-0804-1004 with an extremely compact housing specifically so it can be positioned directly at the turbocharger's oil-feed connection.
- The integrated banjo fitting also allows the feed-line orientation to be adjusted during installation, making the filter particularly useful in crowded engine bays where clearance around the turbocharger is limited.
Serviceable 44-Micron Stainless Element
- Clean oil is critical to turbocharger reliability. The TS-0804-1004 incorporates a 44-micron stainless-steel filter element to help capture debris before it enters the turbocharger.
- Turbosmart recommends cleaning or replacing the internal filter as required in conjunction with engine oil changes. When cleaning the element, Turbosmart instructs that it be returned to the same orientation, with the clean side facing the turbocharger.
Installation & Maintenance
- Correct oil flow is essential to turbocharger operation, so the filter must be installed in the proper direction. Turbosmart specifically notes that the turbo side of the filter must be plumbed toward the turbocharger. After installation, both engine and turbocharger oil pressure should be verified and the system checked carefully for leaks.
- This is a universal performance component, so compatibility should be confirmed with the turbocharger manufacturer's oil-feed requirements before installation. The filter is not intended to correct excessive or insufficient turbocharger oil pressure; an appropriate oil-pressure regulator or restrictor may still be required depending on the turbocharger and engine combination.
For builders looking for an additional level of protection for an expensive turbocharger, the Turbosmart TS-0804-1004 Direct-Mount 44-Micron Oil Filter combines compact packaging, -4AN connections, billet construction, and a reusable stainless filter element in a clean, purpose-built solution.
