Product Details
| Part Number: | TS-0404-1442 |
| Brand: | Turbosmart |
| Color: | Black |
| Size: | -10AN |
| CARB Approved: | No |

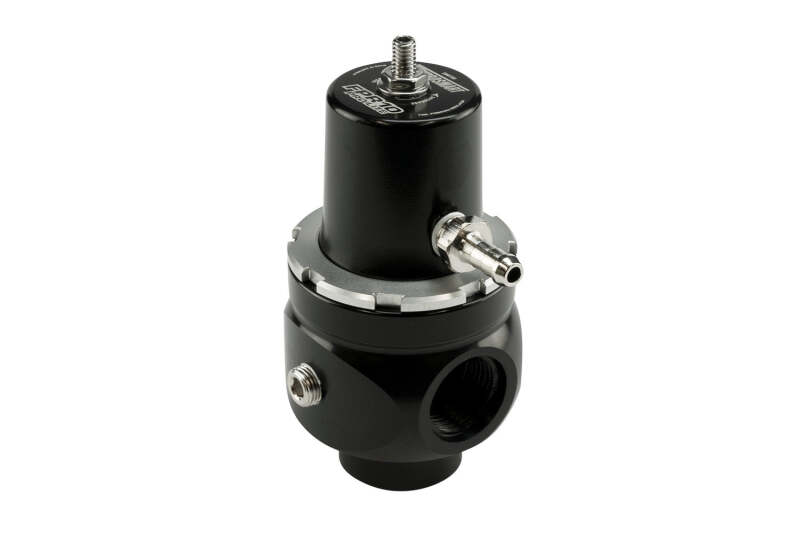

Take control of fuel delivery in high-performance EFI applications with the Turbosmart TS-0404-1442 FPR10 Pro-Lite Fuel Pressure Regulator. Designed for high-flow -10AN fuel systems, the FPR10 Pro-Lite delivers a true 1:1 fuel pressure ratio with excellent response and bypass capacity, making it an ideal choice for high-horsepower street, drag, circuit, and competition builds.
Turbosmart equips the FPR10 Pro-Lite with a stainless-steel valve seat and Mil-Spec diaphragm for reliable operation with a wide variety of fuels, including conventional gasoline, race fuels, and aggressive leaded fuels. Its large -10AN connections provide the flow capacity required by demanding fuel systems, while the adjustable base pressure allows the regulator to be tailored to the engine and fuel-system configuration.
The Pro-Lite configuration provides two -10AN inlet ports and a single -10AN return port, giving builders a straightforward solution for conventional return-style systems. It can also be configured with one inlet and one outlet when used in an appropriate dead-head-style fuel system.
Features
- Genuine Turbosmart FPR10 Pro-Lite fuel pressure regulator
- Turbosmart part number TS-0404-1442
- Designed for high-flow -10AN fuel systems
- Two -10AN inlet ports
- One -10AN fuel return port
- Can be configured with one inlet and one outlet for appropriate dead-head fuel systems
- True 1:1 fuel pressure ratio
- Excellent fuel-pressure response for performance EFI applications
- High-flow and high-bypass-capacity design
- Adjustable base fuel pressure from 50 PSI to 130 PSI
- Stainless-steel valve seat for durability and fuel compatibility
- Mil-Spec diaphragm for dependable pressure control
- Suitable for a broad range of fuel types
- Compatible with race fuel and aggressive leaded fuels
- Integrated 1/8" NPT pressure sensor/gauge port
- Unique locking collar design
- CNC-machined billet aluminum construction
- Precision manufactured and hand assembled by Turbosmart
- Individually tested to help ensure consistent operation
- Designed to maintain smooth, stable fuel pressure from idle through full throttle
- Excellent choice for high-horsepower turbocharged and supercharged applications
- Suitable for naturally aspirated high-performance fuel systems requiring large -10AN plumbing
- Universal design for custom performance fuel systems
- Black finish provides a clean, motorsport-inspired appearance
- Includes mounting bracket
- Includes two M5 mounting screws
- Includes Turbosmart decal
- High-Flow FPR10 Pro-Lite Design
The FPR10 Pro-Lite is designed for applications requiring substantial fuel volume without the additional ports of Turbosmart's larger FPR10 Pro configuration. Its -10AN feed and return connections provide ample capacity for serious performance fuel systems while keeping the installation relatively simple and compact.
For applications requiring additional fuel connections, Turbosmart offers the FPR10 Pro 5-Port EFI TS-0404-1242 and FPR10 Pro M 5-Port TS-0404-1342 as alternatives.
True 1:1 Fuel Pressure Control
- A proper boost-referenced fuel pressure regulator must maintain the correct relationship between manifold pressure and fuel pressure. The FPR10 Pro-Lite provides a true 1:1 ratio, allowing fuel pressure to respond appropriately as manifold pressure changes. This makes it particularly well suited for turbocharged and supercharged engines where accurate differential fuel pressure is critical to consistent injector operation.
- With an adjustable 50–130 PSI base-pressure range, the TS-0404-1442 also provides considerable flexibility for specialized EFI and high-pressure performance fuel systems.
Installation Note
- The Turbosmart TS-0404-1442 is a universal fuel pressure regulator, so the required hoses, AN fittings, fuel-pressure sensor or gauge, and other plumbing components will depend on the vehicle's fuel-system configuration.
- Turbosmart recommends using properly rated fuel lines and high-quality fittings throughout the system. The regulator should also be positioned away from significant heat sources, and the fuel system should be carefully inspected for leaks after installation.
For builders running a serious -10AN EFI fuel system, the Turbosmart TS-0404-1442 FPR10 Pro-Lite delivers the combination of high fuel-flow capacity, true 1:1 pressure control, a stainless valve seat, Mil-Spec diaphragm, and a wide 50–130 PSI adjustment range required for demanding high-performance applications.
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
