Product Details
| Part Number: | TS-0311-1002 |
| Brand: | Turbosmart |
| Color: | Black |
| Size: | 60mm |
| CARB Approved: | No |

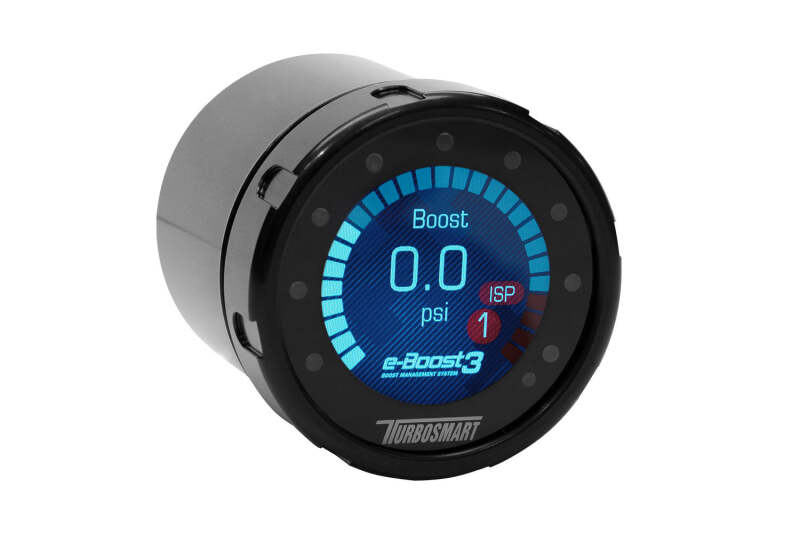

Take complete control of your turbocharged setup with the Turbosmart TS-0311-1002 eBoost3 Electronic Boost Controller. Building on the proven eBoost2 platform, the eBoost3 combines advanced boost-management capabilities with a modern 60mm high-resolution full-color display, billet aluminum housing, and an intuitive rotating click bezel.
More than a conventional electronic boost controller, the eBoost3 functions as a complete Boost Management System. It allows up to six programmable boost stages that can be controlled by gear, engine RPM, time, or a custom input, giving tuners tremendous flexibility for managing traction, power delivery, and boost throughout a run.
The TS-0311-1002 incorporates an onboard 3-bar boost pressure sensor and can display and log important information, including boost pressure, RPM, and input data. For applications requiring additional pressure capability, Turbosmart also allows a higher-range external MAP sensor to be connected through the supplied harness.
Features
- Genuine Turbosmart eBoost3 electronic boost controller
- Turbosmart part number TS-0311-1002
- Complete electronic boost management system
- 60mm gauge-style controller
- Black finish
- Precision billet aluminum housing
- High-resolution full-color LCD display
- Intuitive rotating click bezel for quick menu navigation and adjustments
- Integrated 3-bar boost pressure sensor
- Supports boost pressures up to approximately 43.5 PSI with the integrated sensor
- Supports higher boost ranges with a compatible external MAP sensor
- Up to six programmable boost stages
- Boost stages can be configured based on gear
- Boost control can be programmed according to engine RPM
- Supports time-based boost control
- Supports boost control through a custom input
- Displays and logs RPM, boost pressure, and input data
- Peak boost recall functionality
- Customizable over-boost shutdown for additional engine protection
- Auxiliary outputs can control accessories such as water spray systems
- Can provide auxiliary control for water/methanol injection
- Can be integrated with nitrous systems
- Auxiliary outputs can operate shift lights and warning lights
- Compatible with internal and external wastegates
- Suitable for single- and twin-turbo applications
- Designed to work with a wide range of street and motorsport turbo systems
- Excellent for managing traction and power delivery on high-horsepower applications
- Suitable for street, drag racing, roll racing, circuit, and competition vehicles
- Universal application for appropriately configured turbocharged vehicles
- Kit includes the eBoost3 controller
- Includes Turbosmart boost-control solenoid
- Includes wiring harness
- Includes the required hose and fitting kit
- Includes installation instructions
Advanced Boost Management
- One of the biggest advantages of the eBoost3 is its ability to vary boost instead of simply maintaining one fixed pressure setting. With as many as six programmable stages, boost can be tailored around the vehicle's traction and power-delivery requirements.
- For example, a high-horsepower rear- or front-wheel-drive vehicle can run reduced boost in the lower gears and progressively increase boost as vehicle speed rises. RPM- and time-based strategies provide even more control for drag racing and other applications where managing how quickly power is delivered can be just as important as peak boost pressure.
Full-Color 60mm Display
- The TS-0311-1002 packages its controls and display into a compact 60mm gauge-style housing, allowing the eBoost3 to be positioned where the driver can easily monitor and adjust the system.
- The high-resolution color LCD can display critical information such as boost pressure, RPM, and input data, while the rotating click bezel provides fast access to settings without relying on a conventional array of buttons.
Safety and Auxiliary Control
- Turbosmart incorporates a customizable over-boost shutdown function to provide an additional safeguard against unintended boost pressure. Peak boost recall also makes it easy to review maximum boost after a run.
- The eBoost3's auxiliary outputs further expand its capabilities beyond boost control. Depending on the vehicle's configuration, outputs can be used to trigger equipment such as water/methanol injection, nitrous, intercooler water spray, shift lights, and warning indicators.
Universal Turbocharged Applications
- The Turbosmart TS-0311-1002 is a universal performance component, rather than a vehicle-specific controller. It can be used with appropriately configured turbocharged engines utilizing internal or external wastegates and is suitable for both single- and twin-turbo arrangements.
For builders who need more than a basic electronic boost controller, the Turbosmart TS-0311-1002 eBoost3 3 Bar 60mm Black combines sophisticated boost strategies, data monitoring, auxiliary controls, over-boost protection, and an intuitive full-color interface into one compact boost-management system.
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
