Product Details
| Part Number: | TS-0311-1000 |
| Brand: | Turbosmart |
| Color: | Silver |
| Size: | 60mm |

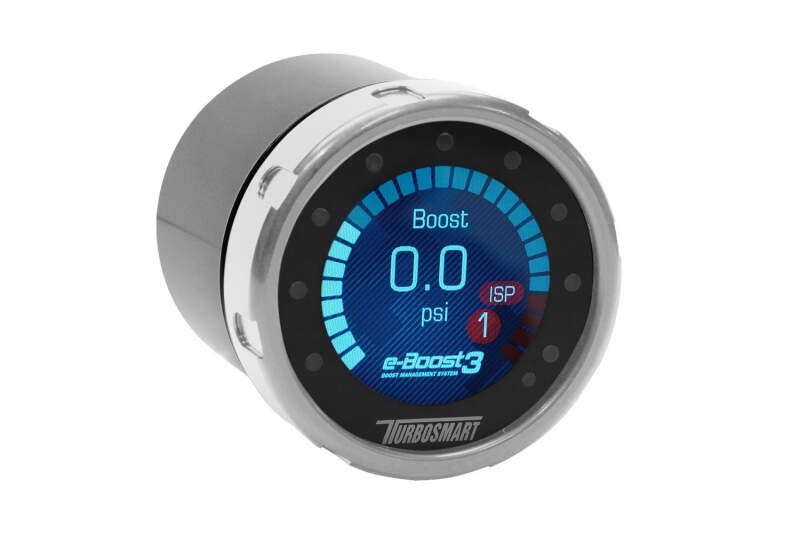

Take precise control of your turbocharged engine with the Turbosmart TS-0311-1000 eBoost3 Electronic Boost Controller. As the latest evolution of Turbosmart's proven eBoost platform, the eBoost3 combines sophisticated boost-management capabilities with a modern 60mm full-color display, billet aluminum construction, and an intuitive rotating click bezel.
Designed for everything from performance street cars to dedicated race vehicles, the eBoost3 allows you to tailor boost delivery to suit traction, engine speed, and driving conditions. Up to six programmable boost stages can be configured according to gear, RPM, time, or a custom input, providing significantly more control than a conventional single-setting boost controller.
The TS-0311-1000 features a silver billet aluminum housing and an integrated 3-bar boost pressure sensor. For applications operating beyond the range of the internal sensor, the supplied harness also supports an appropriate higher-pressure external MAP sensor.
Features
- Genuine Turbosmart eBoost3 electronic boost controller
- Turbosmart part number TS-0311-1000
- Silver finish
- 60mm gauge-style housing
- Precision billet aluminum housing
- High-resolution full-color LCD display
- Intuitive rotating click bezel for quick menu navigation and adjustments
- Integrated 3-bar boost pressure sensor
- Compatible with higher-pressure external MAP sensors when required
- Up to six programmable boost stages
- Programmable boost control based on gear
- Supports RPM-based boost strategies
- Supports time-based boost control
- Supports boost control through a custom input
- Adjustable gate pressure for optimizing turbocharger response
- Adjustable boost-control sensitivity
- Displays critical information including boost pressure and RPM
- Data logging capability for boost, RPM, and input data
- Peak boost recall
- Customizable over-boost shutdown
- Auxiliary output functionality for additional vehicle systems
- Auxiliary output can be used with water spray or water/methanol injection systems
- Can provide output control for nitrous systems
- Can operate shift lights and warning lights
- Supports advanced single- and twin-turbo boost-control configurations
- Suitable for compatible internal and external wastegate systems
- Designed for a typical 12-volt negative-ground automotive electrical system
- Universal application for appropriately configured turbocharged vehicles
- Suitable for street, drag, roll racing, circuit, time attack, and competition applications
- Excellent choice for high-horsepower vehicles requiring progressive boost delivery
- Can help manage traction by reducing boost in lower gears and increasing it as conditions allow
- Designed for in-cabin installation
- Compatible with Turbosmart's optional 60mm dash mounting accessories
- Developed for both street and professional motorsport use
Advanced Boost Management
- Rather than simply setting one target boost pressure, the eBoost3 gives tuners considerably more control over how boost is delivered. Six programmable boost stages allow the system to tailor boost according to gear, RPM, time, or another configured input.
- This is especially useful on high-powered vehicles where maximum boost in the lower gears can overwhelm available traction. The eBoost3 can be configured for reduced boost during initial acceleration and progressively greater boost as conditions permit.
Full-Color 60mm Interface
- The TS-0311-1000 packages its boost-management functions into a compact 60mm gauge-style unit with a high-resolution full-color LCD. A rotating click bezel provides logical menu navigation and allows settings to be accessed and adjusted directly from the controller.
- The billet aluminum housing gives the controller a premium appearance while providing the durability expected in performance and motorsport applications. TS-0311-1000 is the silver version; Turbosmart offers TS-0311-1002 as the corresponding black 60mm 3-bar model.
Safety and Auxiliary Functions
- Turbosmart incorporates a programmable over-boost shutdown function as an additional layer of protection. The controller also provides peak boost recall and can display and log boost, RPM, and other input data. Turbosmart notes that the over-boost feature should be used alongside another form of engine protection, such as appropriate ECU-based fuel or ignition protection.
- The eBoost3's auxiliary output can also be configured to activate additional equipment when predetermined boost or RPM conditions are reached, including water injection, intercooler water spray, warning lights, shift lights, or nitrous control equipment.
Installation Note
- The Turbosmart TS-0311-1000 is a universal electronic boost-management system and should be installed and configured for the specific turbocharger, wastegate, engine, and ECU combination being used. Turbosmart recommends professional installation and advises checking the engine's air/fuel ratio after changing boost pressure.
- The controller itself is not waterproof and should be mounted inside the cabin. Turbosmart supports panel mounting as well as optional 60mm dash, pod, and A-pillar mounting solutions.
For enthusiasts looking for more than a basic boost controller, the Turbosmart TS-0311-1000 eBoost3 3 Bar 60mm Silver delivers advanced boost strategies, real-time monitoring, data logging, auxiliary control, and programmable safety functions in a compact, premium billet package.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
