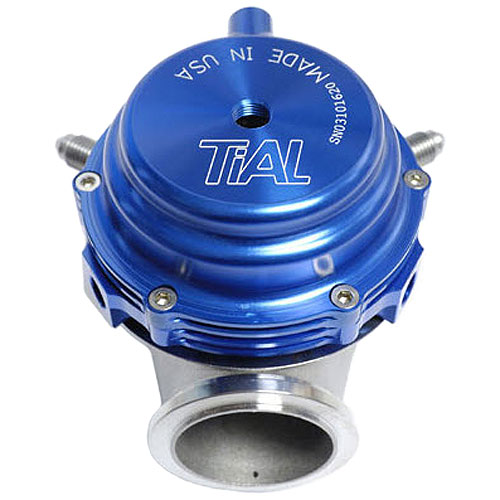

Tial Blue MVS 38mm Wastegate
Part Number: 002952

Tial Blue MVS 38mm Wastegate-A1
Tial Blue MVS 38mm Wastegate-A2
Tial Blue MVS 38mm Wastegate-A3
Tial Blue MVS 38mm Wastegate-A4
Images may be for reference only

Tial Blue MVS 38mm Wastegate
Part Number: 002952

Be the first to review!
Was: $365.60
$354.95 & Free Shipping
Save: $10.65 (3%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 710 reward points. Learn More


10+ In Stock

Product Details

Part Number: 002952
Brand: Tial
Color: Blue
Wastegate Size: 38mm

The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7" in height. The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy!

Specifications

  • High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
  • High temperature silicone Nomex reinforced actuator diaphragm.
  • 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
  • Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
  • All Stainless Steel hardware.
  • Mating weld flanges are 304L
  • Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
  • 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
  • Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today.
  • V-Band inlet and outlet make install easy, flanges and clamps are in the box!
  • Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.

What's Included

  • MV-S Assembly
  • Spring Pressures: .3bar to 1.7bar Included
  • 2 TiAL -4 AN removable water fittings
  • MV-S Valve Seat
  • Inlet V-band clamp & Flange
  • Outlet V-Band Clamp & Flange
  • 2 TiAL Air Fittings
  • Plugs for unused air ports
  • Extra actuator springs

Configuration

  • Flange Materials: 304L Stainless
  • Pipe Size: Inlet Flange: 1.75" OD, Outlet Flange: 1.50" OD
  • Colors: Black, Blue, Red, Purple, Silver
  • Thread: Air Ports (5): M10 x 1.0, Water Ports (2): M8 x 1.0

Water Cooler Actuator Top

  • Patent pending water cooling
  • Two -4AN water ports
  • Coolant passes through actuator bottom and has very little affect on cooling system as a whole.

V-Band Clamps

  • TiAL Designed V-Band Clamps and Flanges are manufacture in house.
  • CNC machined Stainless steel clamps and CNC machined flanges ensure a secure and pressure tight fit.

Valve Stem

  • TiAL's MV-S is equipped with the racing valve stem. The Wear Coating is resistant the the corrosive effects of Lead oxide which is present when running leaded racing fuel.
