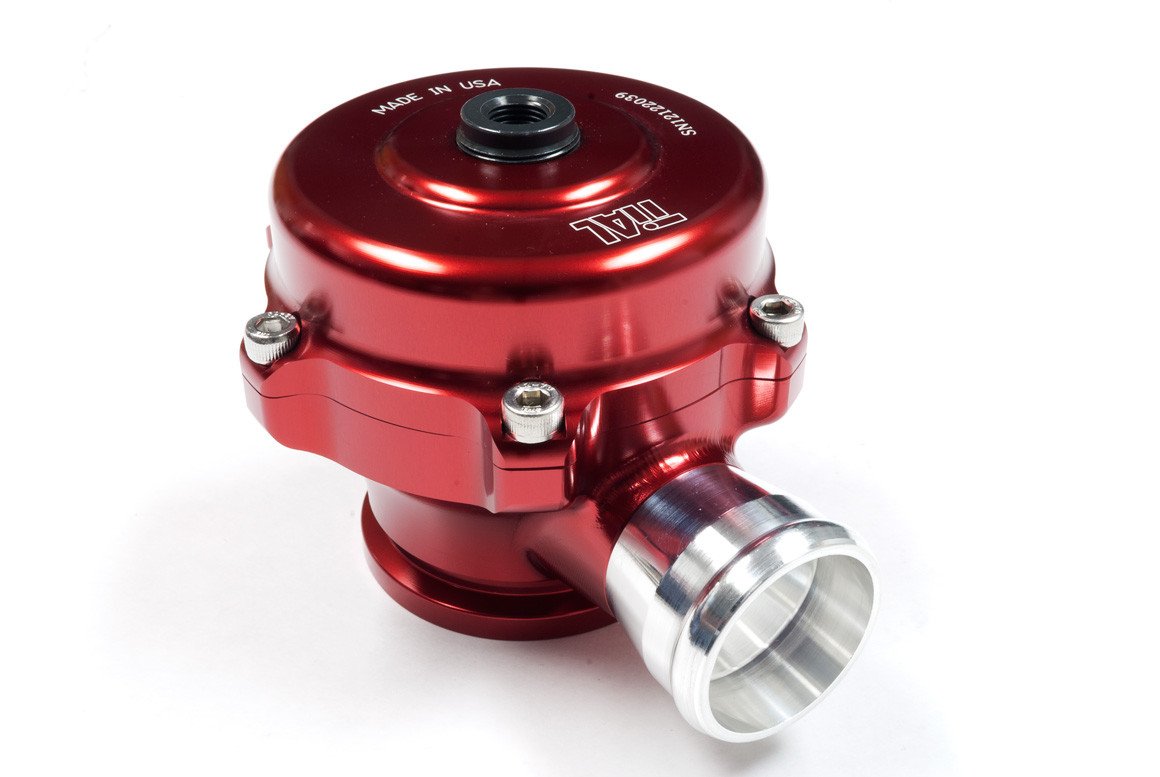

TiAL Red 50mm 8 PSI Spring 1.0" Recirculation Fitting QR Blow Off Valve
Part Number: 002594

Images may be for reference only

TiAL Red 50mm 8 PSI Spring 1.0" Recirculation Fitting QR Blow Off Valve
Part Number: 002594

Be the first to review!
Retail: $287.32
$278.95
Save: $8.37 (3%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 558 reward points. Learn More


1 In Stock

Product Details

Part Number: 002594
Brand: Tial
Color: Red

Tial designed this blow off valve to work correctly with vehicles that rely on recirculating the blow off valve into the intake system before the turbo to maintain factory-quality drivability.

Many factory turbo setups feed blow off valve discharge air back into the intake after the air flow meter. The factory air flow meter is expecting this air to be there, and sends a signal to the ecu to provide enough fuel from the injectors to provide for it. If you upgrade to a non-recirculating blow off valve that dumps to the atmostphere, the discharge air is no longer feeding back into the intake after the air flow meter. This creates a problem because the ecu, and air flow meter do not know that this air is no longer making it back into the system, but its still assuming it is, so it continues to provide more fuel for the air its not actually getting. This creates a "rich" condition where the air fuel ratio gets unbalanced by having too much fuel and not enough air during "off throttle" conditions like shifting or decelerating. This can cause the car to stall, sputter, and decrease drivabilty in general. Even worse, it can cause spark plugs to become fouled, ruining them .

Features:
  • This kit comes with a 1.0" m recirculation fitting
  • For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.
  • The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
  • The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
  • The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
  • An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.
  • A single QR BOV can support up to 600hp
  • Multiple return port options for easy OE fit
