Product Details
| Part Number: | 30130012 |
| Brand: | SPAL |
Improve airflow through your radiator and fan shroud with the SPAL 30130012 Rubber Fan Shroud Flap. Designed for use with SPAL fan shrouds and custom cooling-system installations, this simple but effective vent flap allows additional ram air to pass through the shroud when the electric fan is not operating, helping reduce the airflow restriction that a full-coverage fan shroud can create at vehicle speed.
When the vehicle is moving and the electric fan is off, airflow pressure pushes the flexible rubber flap open, allowing air to flow through the radiator and through the shroud opening. Once the electric fan switches on, the fan's suction pulls the flap closed. This helps prevent the fan from drawing air through the vent opening instead of through the radiator core.

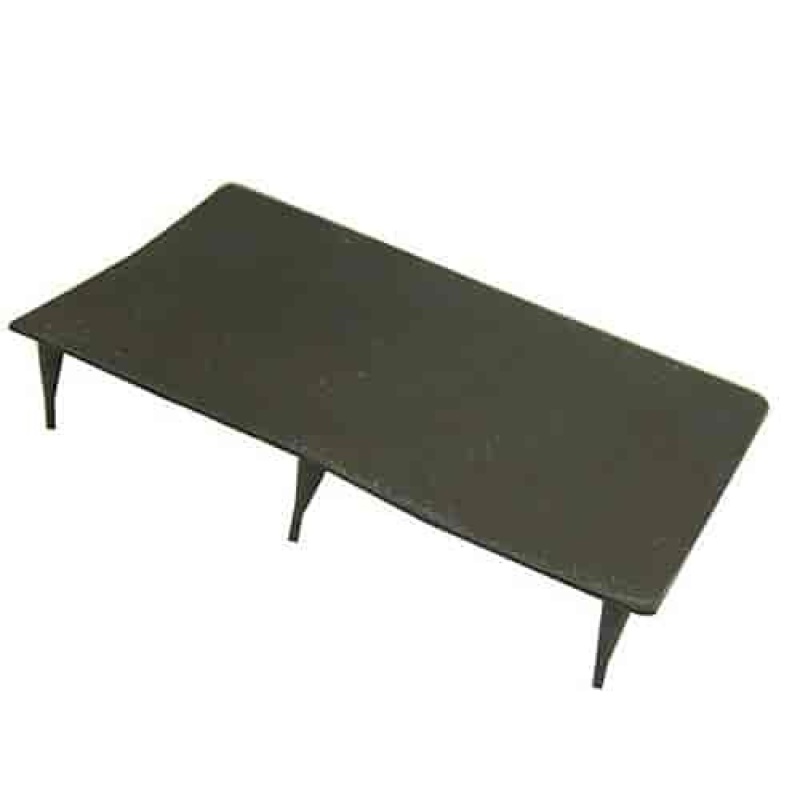

The SPAL 30130012 is manufactured from flexible black rubber and can be used as a replacement flap on compatible SPAL assemblies or incorporated into a fabricated fan shroud.
Features
- Genuine SPAL Automotive cooling-system accessory
- SPAL part number 30130012
- Replacement fan shroud rubber air flap
- Designed to improve airflow through full-coverage radiator fan shrouds
- Allows additional ram air to pass through the shroud when the electric fan is off
- Automatically opens from natural airflow while the vehicle is moving
- Draws closed when the electric cooling fan operates
- Helps prevent air from bypassing the radiator when the fan is running
- Helps maximize the effectiveness of a properly designed fan shroud
- Reduces airflow restriction from solid areas of the fan shroud at road speeds
- Flexible black rubber construction
- Compact, lightweight design
- Excellent for custom aluminum radiator and fan shrouds
- Direct replacement for rubber flaps used in compatible SPAL fan-shroud assemblies
- Can be used individually or with multiple flaps depending on the shroud design
- Passive operation requires no wiring or electrical connection
- Ideal for street cars, race cars, engine swaps, hot rods, restomods, and custom cooling systems
- Useful when fabricating custom shrouds for SPAL puller fans
- Sold individually
How It Works
- A full-coverage fan shroud can improve low-speed and stationary cooling by allowing the electric fan to draw air across a larger portion of the radiator core. At higher vehicle speeds, however, solid areas of the shroud can restrict natural airflow.
- The SPAL 30130012 functions as a simple one-way air door. As the vehicle moves forward, incoming air passing through the radiator pushes the flap open, providing an additional path through the fan shroud.
- When the electric fan activates, negative pressure behind the radiator pulls the flap closed. This forces the fan to draw more of its air through the radiator core, rather than through the shroud vent.
Replacement & Custom Applications
- The SPAL 30130012 is an excellent choice for replacing a damaged or missing flap on a compatible SPAL fan shroud. It can also be incorporated into custom-built radiator shrouds where additional high-speed airflow is desired.
- Multiple flaps can be installed across a larger shroud to increase the amount of natural airflow available when the electric fans are not operating. The number and placement of flaps should be determined by the radiator size, fan configuration, shroud design, and available space.
Installation Note
- The SPAL 30130012 is sold individually, so order the quantity needed for your specific fan-shroud configuration.
- When used in a custom shroud, the flap should be positioned so it opens with forward vehicle airflow and closes when the puller fan creates negative pressure behind the radiator. Make sure the flap has enough clearance to move freely without contacting the radiator core, fan blades, or surrounding components.
The SPAL 30130012 Fan Shroud Rubber Air Flap is a simple and effective solution for combining the low-speed cooling efficiency of a full fan shroud with improved natural radiator airflow at road speed.
