Images may be for reference only
Product Details
| Part Number: | 30102120 |
| Brand: | SPAL |
| Size: | 16 in |

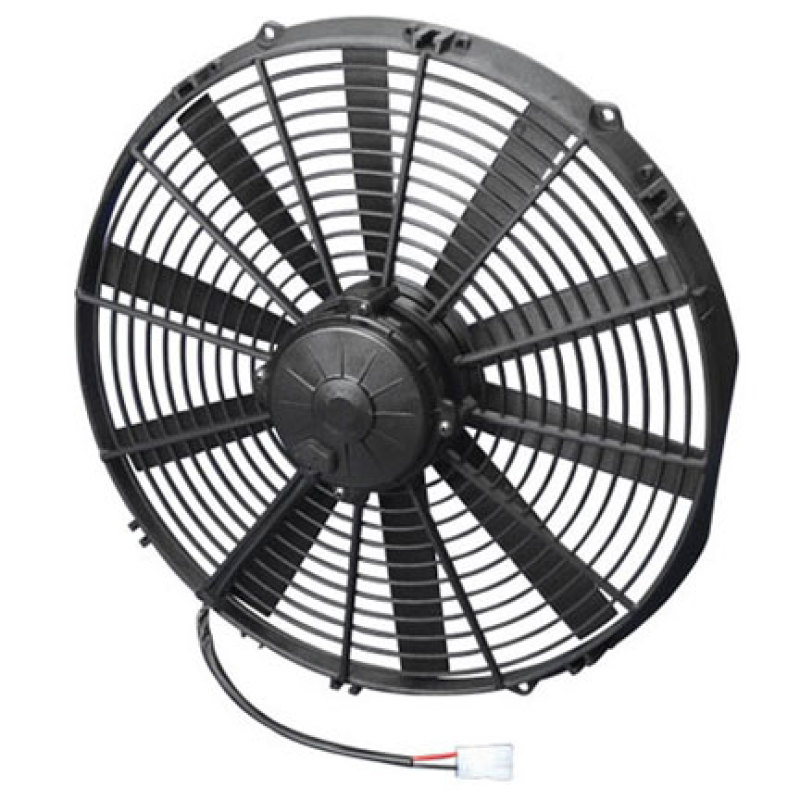

Keep engine temperatures under control with the SPAL 30102120 16-Inch High Performance Electric Cooling Fan. Designed for demanding automotive cooling applications, this powerful 12-volt fan delivers approximately 1,918 CFM of airflow in a single-fan package, making it an excellent choice for performance street cars, engine swaps, race vehicles, hot rods, and custom cooling systems.
The 30102120 is a puller-style fan, meaning it is intended to mount on the engine side of the radiator and draw air through the radiator core. Its large 16-inch diameter and high-performance motor provide substantial airflow for applications where maintaining coolant temperature becomes more challenging due to increased horsepower, limited grille area, air conditioning, or demanding driving conditions.
SPAL equips the 30102120 with straight blades and a rugged black fan shroud. The combination of high airflow and SPAL's purpose-built electric motor makes this fan particularly well suited to performance applications requiring significantly more cooling capability than a typical low-profile electric fan.
Features
- Genuine SPAL Automotive electric cooling fan
- SPAL part number 30102120
- Large 16-inch fan design
- High Performance Series cooling fan
- Delivers approximately 1,918 CFM of airflow
- 12-volt electrical system
- Puller-style configuration
- Designed to mount behind the radiator and pull air through the core
- High-output design for demanding cooling applications
- Straight-blade fan design
- Provides strong airflow at low vehicle speeds and while stationary
- Helps maintain more consistent engine coolant temperatures
- Excellent upgrade for high-performance and modified vehicles
- Ideal for engine swaps, turbocharged builds, supercharged applications, race cars, hot rods, and custom cooling systems
- Suitable for use with aftermarket aluminum radiators
- Can replace mechanical fans in properly configured applications
- Black molded fan and shroud provide a clean, professional appearance
- Integrated shroud helps direct airflow through the fan
- SPAL electric motor engineered for automotive cooling applications
- Designed for durability in demanding under-hood environments
- Universal application allows installation on a wide variety of vehicles
- Can be controlled with an appropriate temperature switch, fan controller, ECU output, or relay system
- Compact single-fan package provides high airflow without requiring a dual-fan assembly
- Professional-grade cooling solution from one of the industry's leading electric fan manufacturers
Specifications
- Specification Details
- Manufacturer SPAL Automotive
- Part Number 30102120
- Product Type Electric Radiator Cooling Fan
- Fan Diameter 16"
- Voltage 12V
- Airflow Approx. 1,918 CFM
- Fan Direction Puller
- Blade Style Straight
- Number of Fans Single
- Shroud Integrated
- Shroud Color Black
- Fitment Universal
High-Performance Puller Design
- Because the 30102120 is a puller fan, it is designed to be installed behind the radiator on the engine side. When activated, the fan pulls outside air through the radiator core and exhausts the heated air toward the engine compartment.
- For most automotive applications where adequate clearance is available behind the radiator, a properly positioned puller fan is the preferred configuration. The 16-inch diameter also allows a single fan to cover a substantial portion of the radiator core.
Ideal for Performance Cooling Systems
- The 1,918 CFM airflow rating makes the 30102120 a strong option for vehicles producing considerably more heat than their original cooling system was designed to manage.
- It can be an excellent match for aftermarket radiators used in Honda and Acura engine swaps, K-series builds, turbocharged applications, muscle cars, hot rods, off-road vehicles, and other custom projects, provided sufficient space is available for the fan's dimensions and motor depth.
Wiring & Installation
- Because this is a high-performance electric fan, it should be wired through a properly rated relay and fuse rather than being powered directly through a basic temperature switch or ECU output. The ECU, controller, or temperature switch should trigger the relay, while the fan's main power circuit receives appropriately fused battery power.
- Wire gauge, relay capacity, fuse size, and connector specifications should be selected according to SPAL's electrical requirements and the length of the vehicle's wiring run.
The SPAL 30102120 16" High Performance Puller Fan is an excellent choice when your cooling system needs a combination of large 16-inch coverage, approximately 1,918 CFM of airflow, high-performance 12V operation, and proven SPAL construction in a single electric fan.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
