Product Details
| Part Number: | 30101505 |
| Brand: | SPAL |
| Size: | 12 in |

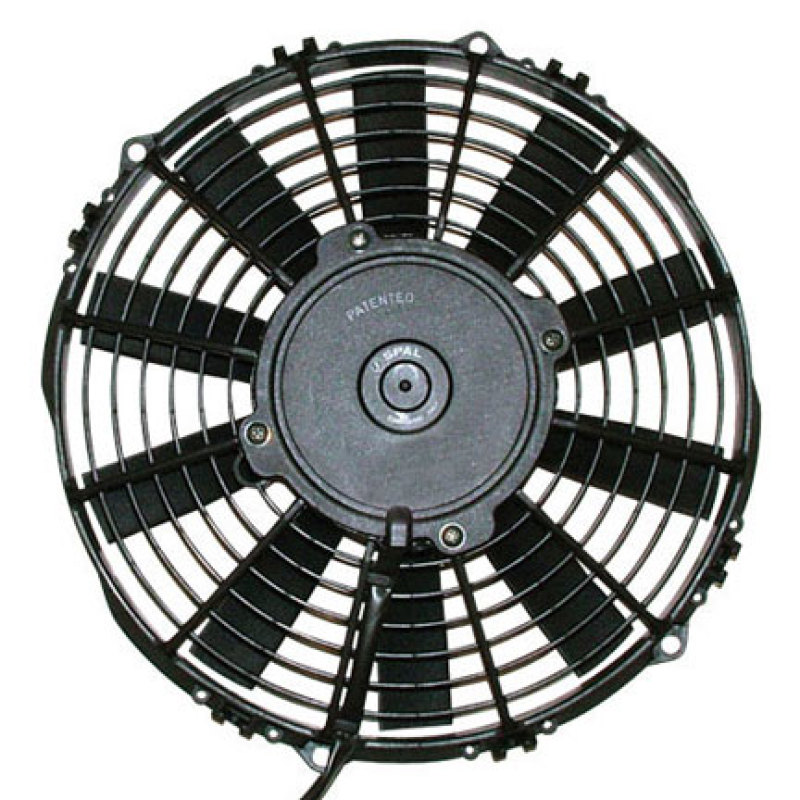

Add powerful, reliable airflow to your cooling system with the SPAL 30101505 12-Inch Medium Profile Electric Pusher Fan. Designed for performance and custom automotive applications, this 12-volt electric fan delivers up to 1,227 CFM of airflow while maintaining a relatively compact profile for installations where space is limited.
The 30101505 is a pusher-style fan, designed to mount on the front side of a radiator, A/C condenser, oil cooler, or other heat exchanger and push air through the core. This makes it an excellent solution when engine-side clearance prevents the installation of a conventional puller fan.
Featuring 10 straight blades, a durable molded shroud, and SPAL's purpose-built electric motor, the 30101505 provides strong airflow for performance street cars, engine swaps, race vehicles, hot rods, off-road applications, and custom cooling systems. SPAL's medium-profile design offers a balance between cooling performance and packaging, making it particularly useful in tight engine bays.
Features
- Genuine SPAL Automotive electric cooling fan
- SPAL part number 30101505
- 12-inch electric fan
- Medium-profile design
- Delivers up to 1,227 CFM of airflow
- Pusher-style configuration
- Designed to mount in front of the radiator or heat exchanger
- Pushes incoming air through the radiator, condenser, or cooler core
- 12-volt operation
- 10 straight-blade fan design
- Straight blades provide strong, directed airflow
- Approximately 2.44-inch overall thickness
- Compact design is ideal for applications with limited mounting clearance
- High-output airflow from a relatively thin fan assembly
- Fully sealed motor rated to IP68 standards
- Waterproof and dustproof motor design for demanding automotive environments
- SPAL patented motor design
- Durable molded plastic fan blades and shroud
- Fan and motor assembly is balanced for smooth, reliable operation
- Excellent for radiators, A/C condensers, oil coolers, transmission coolers, and auxiliary cooling systems
- Ideal for performance street cars, race cars, hot rods, engine swaps, off-road vehicles, and custom builds
- Universal design allows installation on a wide range of vehicles and cooling systems
- Can be used as a primary fan where a pusher configuration is required
- Can also be used as an auxiliary fan to supplement an existing cooling system
- Compatible with SPAL universal mounting brackets and shrouds
- Mounting brackets and hardware are sold separately
- Designed for long-term use in demanding high-temperature environments
- Sold individually
Medium-Profile Design
- The SPAL 30101505 is part of SPAL's Medium Profile fan range. At approximately 2.44 inches thick, it offers more airflow than many shallow-profile fans without requiring the additional installation depth of SPAL's larger high-performance models. SPAL specifically describes its Medium Profile fans as an option for obtaining high airflow where available space is limited.
- This makes the fan particularly useful for engine swaps and custom radiator installations where clearance between the radiator, engine, accessory drive, turbocharger piping, or other components can be extremely tight.
Pusher Fan Configuration
- Unlike a puller fan that mounts behind the radiator, 30101505 is specifically designed as a pusher fan. It mounts on the front side of the radiator or cooler and pushes air through the core toward the engine compartment.
- A pusher configuration can be especially useful when there isn't enough clearance behind the radiator for an electric fan. It can also be used as an auxiliary fan for an A/C condenser or additional heat exchanger.
Wiring & Installation
- The SPAL 30101505 should be wired using a properly sized relay, fuse, and automotive-grade wiring. SPAL's fan-controller documentation lists a 20-amp recommended fuse for 30101505.
- The fan can be controlled by a thermostatic switch, aftermarket fan controller, or an appropriate ECU fan-control output operating through a relay.
- Mounting hardware is not included with the fan. Compatible SPAL mounting options include several universal bracket designs, including the 30130017-style raised mounting brackets you were looking at previously.
The SPAL 30101505 12" Medium Profile Pusher Fan is an excellent choice for applications requiring a combination of strong 1,227 CFM airflow, compact packaging, rugged IP68-sealed construction, and a front-mounted pusher configuration from a trusted name in automotive cooling.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
