Product Details
| Part Number: | 30100364 |
| Brand: | SPAL |
| Size: | 11 in |

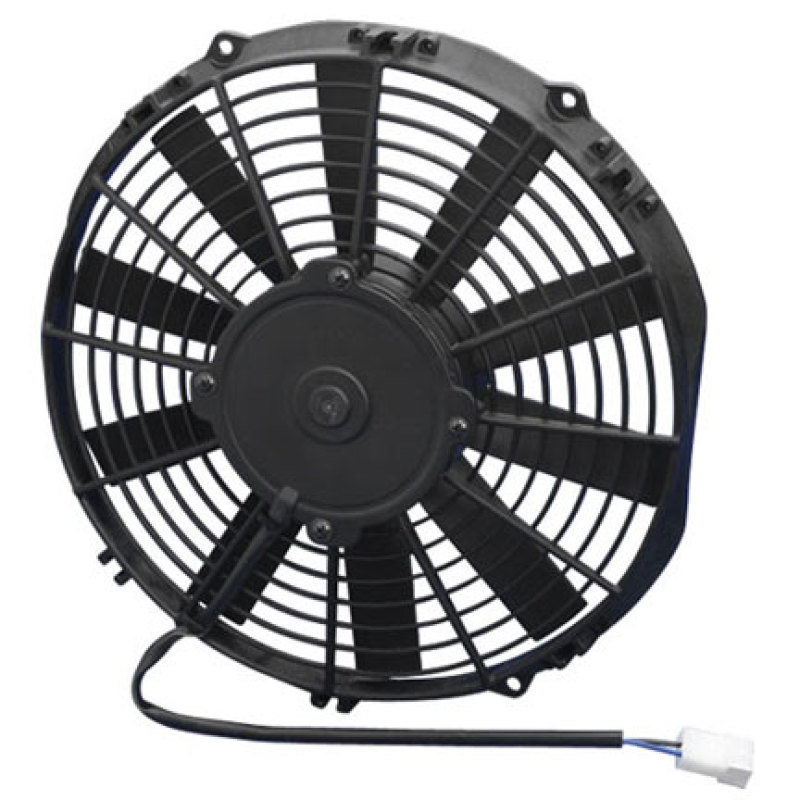

Keep your cooling system performing efficiently without sacrificing valuable engine-bay space with the SPAL 30100364 11-Inch Low Profile Electric Puller Fan. Designed for applications where radiator-to-engine clearance is limited, this compact 12-volt fan combines a slim 2.05-inch maximum depth with approximately 808 CFM of airflow, making it an excellent choice for performance vehicles, engine swaps, custom radiator installations, and auxiliary cooling applications.
The 30100364 is a puller-style fan, designed to mount behind the radiator or heat exchanger and draw air through the core. Its 10 straight-blade design and SPAL electric motor provide dependable airflow, while the low-profile housing makes installation possible in areas where a larger high-performance fan may not fit.
SPAL manufactures its electric fans for demanding automotive environments. The 30100364 uses a closed motor design, sturdy molded components, and an individually balanced fan assembly for dependable operation and long service life.
Features
- Genuine SPAL Automotive electric cooling fan
- SPAL part number 30100364
- SPAL model VA09-AP8/C-27A
- 11-inch fan diameter
- Low-profile design for tight installations
- Approximately 2.05-inch maximum depth
- Rated at approximately 808–810 CFM free-air flow
- 12-volt operation
- Puller-style fan configuration
- Designed to mount behind the radiator or heat exchanger
- Pulls air through the radiator core toward the engine compartment
- 10 straight fan blades
- Patented SPAL motor design
- Closed motor construction
- Fan assembly is individually balanced for smooth operation and extended service life
- Approximately 6.8-amp current draw at 13V under free-air test conditions
- Lightweight construction at approximately 2.5 lbs.
- Black molded fan blades and housing
- Excellent choice where engine-to-radiator clearance is limited
- Ideal for engine swaps, performance street cars, race cars, hot rods, restomods, and custom builds
- Suitable for aftermarket aluminum radiator installations
- Can be used for radiator, oil cooler, intercooler heat exchanger, or other appropriate cooling applications
- Universal design allows installation on a wide variety of vehicles
- Compatible with available SPAL universal mounting accessories
- Mounting brackets and installation hardware are sold separately
- Sold individually
Compact Low-Profile Design
- One of the biggest advantages of the SPAL 30100364 is its compact packaging. SPAL's dimensional drawing shows an approximately 11.57-inch housing dimension, 12.20-inch maximum overall envelope, and only 2.05 inches of maximum depth.
- That shallow depth makes this fan particularly useful for Honda and Acura engine swaps, where clearance between an aftermarket radiator and the engine, intake manifold, accessory drive, turbo system, or exhaust components may be limited.
Puller Fan Configuration
- The 30100364 is specifically a puller fan. It should normally be installed on the engine side of the radiator, where it draws outside air through the radiator core.
- When sufficient space is available, a properly installed puller configuration is an excellent solution for primary radiator cooling because the fan can pull air directly through the heat exchanger while remaining behind the radiator and out of the incoming airflow path.
Proven Airflow Performance
- SPAL's technical data for the VA09-AP8/C-27A shows approximately 810 CFM at zero static pressure and 13 volts, with airflow decreasing progressively as static pressure increases. The same test data lists approximately 6.8 amps at zero static pressure.
- Current U.S. retail documentation rounds the fan's maximum airflow rating to 808 CFM and lists an 8.3-amp draw, so published electrical figures can vary depending on test methodology and catalog source.
Installation Note
- The SPAL 30100364 is a universal electric fan, so vehicle-specific mounting hardware is not included. SPAL offers universal brackets and shrouds that can be used to adapt the fan to a wide range of radiator configurations.
- For electrical installation, the fan should be wired with an appropriately rated fuse, relay, and automotive-grade wiring. A thermostatic switch, aftermarket fan controller, or suitable ECU output can be used to trigger the fan relay.
The SPAL 30100364 11" Low Profile Puller Fan is an excellent cooling solution when space is at a premium, combining a slim 2.05-inch profile, approximately 808 CFM airflow, 10 straight blades, and proven SPAL construction in a compact package.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
