Product Details
| Part Number: | 307-05-9085 |
| Brand: | Skunk2 |
| Color: | Black |

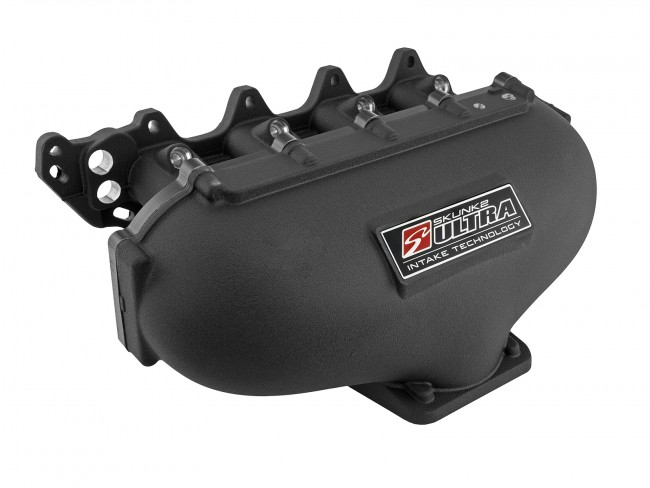

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!
The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
- Modular 3pc. Design w/ Removable Plenum
- 5.0L Plenum Volume**
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- 6.0" Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- Universal Mounting Flange Fits All B VTEC Cylinder Heads
- 3 x 1/8" NPT and 3 x 1/4" NPT Accessory Ports
- Hi-Grade Mounting Hardware
- Thermal Gasket Included
- Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
Fitment:
- 1999 - 2000 Honda Civic (1.6L Si)
- 1994 - 1997 Honda Del Sol (1.6L VTEC)
- 1992 - 2001 Acura Integra (1.8L GS-R/Type R)
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Acura | Integra | GS-R |
| 1993 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | GS-R |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | Type R |
| 1999 | Acura | Integra | GS-R |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
