Product Details
| Part Number: | 307-05-8100 |
| Brand: | Skunk2 |
| Color: | Silver |
| CARB Approved: | No |

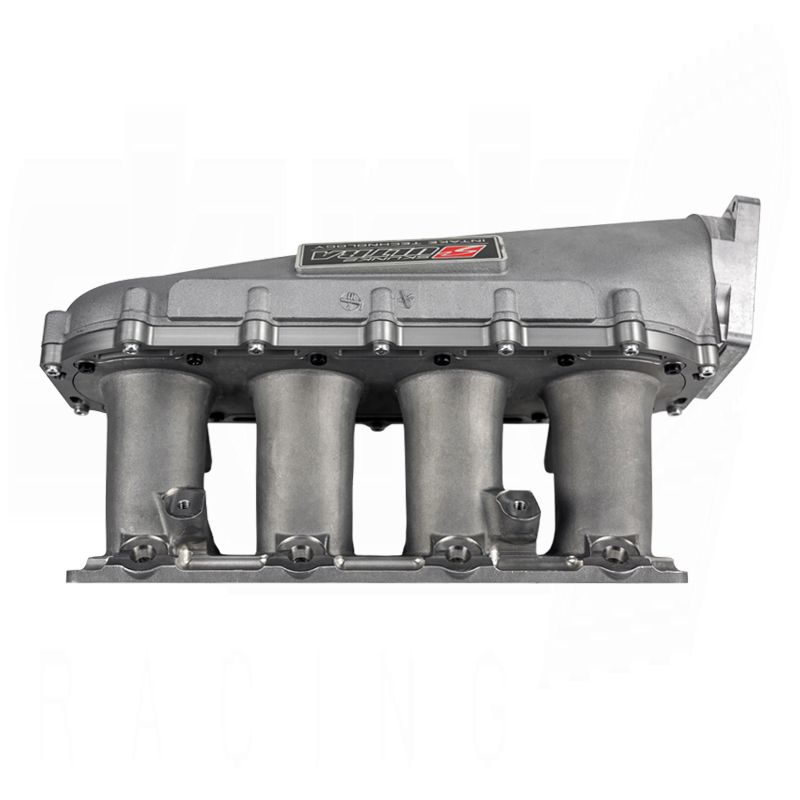

Skunk2 Racing is proud to fill a unique need in the next generation of high-performance intake manifolds for swapped vehicles using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads!
The much-anticipated rear wheel drive Ultra Race Intake Manifold is the result of years' worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software, Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
- Modular 3pc. Design w/ Removable Plenum
- 3.5L Plenum Volume
- Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- 6.0” Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- 4 x 1/8” NPT, 3 x 1/4” NPT, and 1 x 3/8" NPT Accessory Ports
- Hi-Grade Mounting Hardware
- Thermal Gasket Included
- Fits MOST Popular Chassis Configurations - Not Just Race Cars
Specifications:
The K Series Ultra "Street" Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern, but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated throttle body or throttle body adapter.
- RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE
- 3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
- 4.5 Liter > 600-1000HP
- 5.5 Liter > 1,000HP Up
- US Patent: D677700
- Modification required on vehicles using OEM Idler Pulley & Water Pump Housing
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | CR-V | EX |
| 2002 | Honda | CR-V | LX |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | CR-V | EX |
| 2003 | Honda | CR-V | LX |
| 2004 | Acura | RSX | Type-S |
| 2004 | Honda | CR-V | EX |
| 2004 | Honda | CR-V | LX |
| 2005 | Acura | RSX | Type-S |
| 2005 | Honda | CR-V | EX |
| 2005 | Honda | CR-V | LX |
| 2005 | Honda | CR-V | SE |
| 2006 | Acura | RSX | Type-S |
| 2006 | Honda | CR-V | EX |
| 2006 | Honda | CR-V | LX |
| 2006 | Honda | CR-V | SE |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
