Product Details

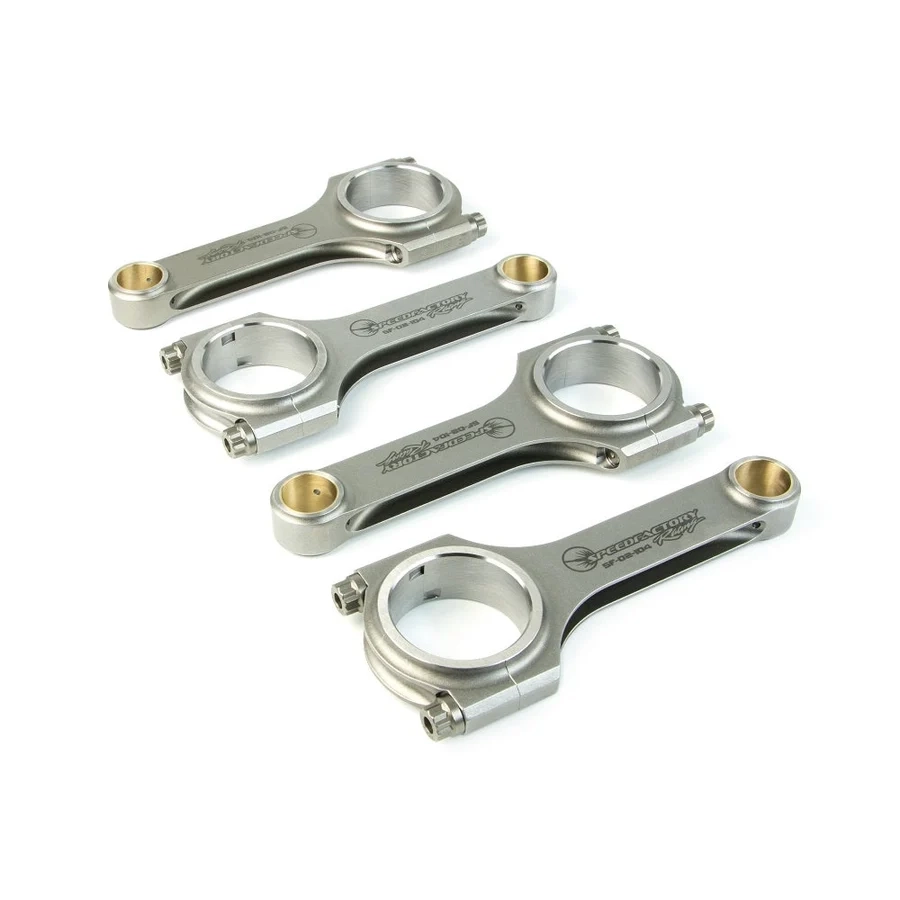

These forged H-beam connecting rods from SpeedFactory Racing are suitable for high-horsepower street and track B-series builds. They are rated for over 225HP per cylinder, or 900+HP total, while remaining lighter than many other H-beam rods on the market. An excellent option for a fully built B18 or B20 bottom-end without breaking the bank.
Forged 4340 chromoly construction provides outstanding durability. Each rod is CNC machined, magnafluxed, heat treated, and shot-peened to relieve stress in the metal. Precision alignment dowels are used to correctly locate the rod caps, maintain big-end bore size, and eliminate cap walk. They feature bronze alloy pin bushings for floating wrist pins and come standard with 220,000 psi rated 3/8” ARP2000 rod bolts.
Not suitable for OEM-style pistons; works with most aftermarket pistons without machining.
Instructions and ARP Lube are included.
Fitment Details
- Honda/Acura B18A/B18B & B20
- *Pin end fits most aftermarket pistons w/out additional machining
- **Does not fit OEM style pistons
Vehicle Fitment
- Integra 1990-1993
- Integra 1994-2001
- CR-V 1997-2001
Technical Data
- Material: Forged 4340 chromoly
- Bolts: 3/8” ARP2000
- Weight: 515 grams
- Each set balanced to +/- 1 gram
- Center to Center Length: 137mm – 5.394”
- Pin End Bore: 21.02mm - 0.828”
- Pin End Width: 21mm – 0.827”
- Big End Bore: 48mm – 1.890”
- Big End Width: 23.75mm – 0.935”
| Part Number: | SFR-02-104 |
| Brand: | Speedfactory Racing |
| Rod (mm): | 137 |
| Rod Weight In Grams: | 515 |
| Rod Style: | H-Beam |
| Rod Bolts: | ARP 2000 |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1988 | Honda | Prelude | 2.0 Si |
| 1988 | Honda | Prelude | 2.0 Si 4WS |
| 1989 | Honda | Prelude | 2.0 Si |
| 1989 | Honda | Prelude | 2.0 Si 4WS |
| 1990 | Acura | Integra | GS |
| 1990 | Acura | Integra | LS |
| 1990 | Acura | Integra | RS |
| 1990 | Honda | Prelude | 2.0 Si |
| 1991 | Acura | Integra | GS |
| 1991 | Acura | Integra | LS |
| 1991 | Acura | Integra | RS |
| 1991 | Honda | Prelude | 2.0 Si |
| 1992 | Acura | Integra | GS |
| 1992 | Acura | Integra | LS |
| 1992 | Acura | Integra | RS |
| 1993 | Acura | Integra | GS |
| 1993 | Acura | Integra | LS |
| 1993 | Acura | Integra | RS |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Honda | CR-V | LX |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Honda | CR-V | EX |
| 1998 | Honda | CR-V | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | CR-V | EX |
| 1999 | Honda | CR-V | LX |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | LS |
| 2000 | Honda | CR-V | EX |
| 2000 | Honda | CR-V | LX |
| 2000 | Honda | CR-V | SE |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | LS |
| 2001 | Honda | CR-V | EX |
| 2001 | Honda | CR-V | LX |
| 2001 | Honda | CR-V | SE |
Engine Fitment
| Engine |
|---|
| Honda 1.8L/1834CC - 4 Cylinder (B18A1) |
| Honda 1.8L/1834CC - 4 Cylinder (B18B1) |
| Honda 2.0L/1972CC - 4 Cylinder (B20B4) |
| Honda 2.0L/1972CC - 4 Cylinder (B20Z2) |
| Honda 2.0L/1958CC - 4 Cylinder (B20A5) |
