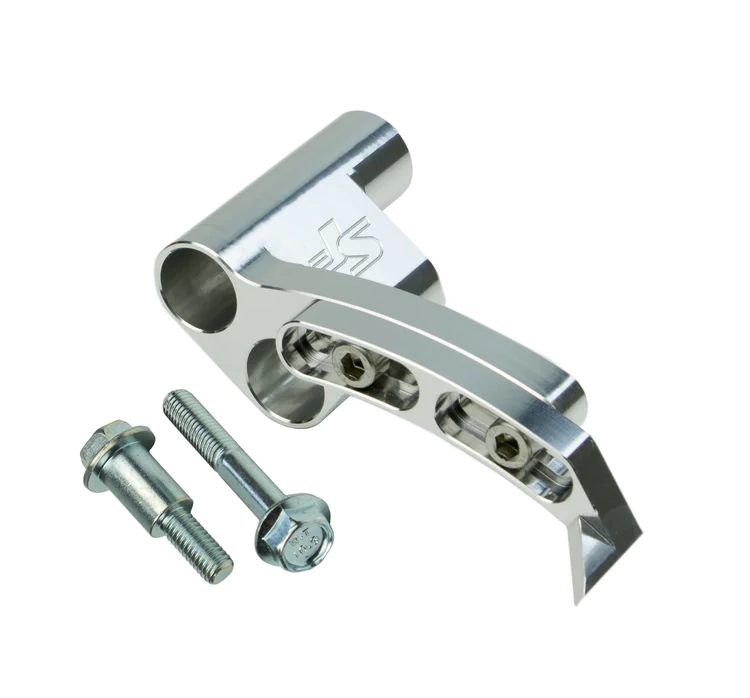

SpeedFactory Racing B-Series Billet Aluminum Timing Pointer
Part Number: SFR-02-026

Images may be for reference only

Product Details

Part Number:	SFR-02-026
Brand:	Speedfactory Racing

We all pour huge amounts of time and effort into building our cars. Setting the base timing ACCURATELY and to PRECISELY THE SAME VALUE when swapping engines is CRITICAL to maintaining consistency in your program. With the state of tune that is run in many of these cars, being even 1* of ignition timing off can cost you big time.

Now it's easy to make sure your base timing is set consistently and accurately every time with the SpeedFactory Racing B-Series Billet Timing Pointer. Precision CNC machined, these have a bright raw finish so that the pointer stands out against the black timing cover and crank pulley and is easy to read clearly.

Features:

Precision CNC machined from 6061-T6 billet aluminum
10 degree range of adjustment
Engraved "SF" logo
Includes quality hardware with vibration resistant thread-locking cap screws and detailed installation instructions.

Applications:

All Acura / Honda B-Series Engines

Notes:

This part is designed for use with an aftermarket high performance crank pulley/harmonic balancer like ATI, as the distance from the tiny OEM timing pointer to the timing mark on the balancer makes it very difficult to see and set timing accurately.
*Will clear any crank pulley with a maximum O.D. of 7.125", including all OEM B20, B18, and B16 variants.

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
1990	Acura	Integra	GS
1990	Acura	Integra	LS
1990	Acura	Integra	RS
1991	Acura	Integra	GS
1991	Acura	Integra	LS
1991	Acura	Integra	RS
1992	Acura	Integra	GS
1992	Acura	Integra	GS-R
1992	Acura	Integra	LS
1992	Acura	Integra	RS
1993	Acura	Integra	GS
1993	Acura	Integra	GS-R
1993	Acura	Integra	LS
1993	Acura	Integra	RS
1994	Acura	Integra	GS-R
1994	Acura	Integra	LS
1994	Acura	Integra	RS
1994	Honda	Civic del Sol	VTEC
1995	Acura	Integra	GS-R
1995	Acura	Integra	LS
1995	Acura	Integra	RS
1995	Acura	Integra	Special Edition
1995	Honda	Civic del Sol	VTEC
1996	Acura	Integra	GS-R
1996	Acura	Integra	LS
1996	Acura	Integra	RS
1996	Acura	Integra	Special Edition
1996	Honda	Civic del Sol	VTEC
1997	Acura	Integra	GS
1997	Acura	Integra	GS-R
1997	Acura	Integra	LS
1997	Acura	Integra	RS
1997	Acura	Integra	Type R
1997	Honda	CR-V	LX
1997	Honda	Civic del Sol	VTEC
1998	Acura	Integra	GS
1998	Acura	Integra	GS-R
1998	Acura	Integra	LS
1998	Acura	Integra	RS
1998	Acura	Integra	Type R
1998	Honda	CR-V	EX
1998	Honda	CR-V	LX
1999	Acura	Integra	GS
1999	Acura	Integra	GS-R
1999	Acura	Integra	LS
1999	Honda	CR-V	EX
1999	Honda	CR-V	LX
1999	Honda	Civic	Si
2000	Acura	Integra	GS
2000	Acura	Integra	GS-R
2000	Acura	Integra	LS
2000	Acura	Integra	Type R
2000	Honda	CR-V	EX
2000	Honda	CR-V	LX
2000	Honda	CR-V	SE
2000	Honda	Civic	Si
2001	Acura	Integra	GS
2001	Acura	Integra	GS-R
2001	Acura	Integra	LS
2001	Acura	Integra	Type R
2001	Honda	CR-V	EX
2001	Honda	CR-V	LX
2001	Honda	CR-V	SE
