SpeedFactory Racing Billet B-Series Crankcase Pressure Port Fitting
Part Number: SFR-02-025

Images may be for reference only

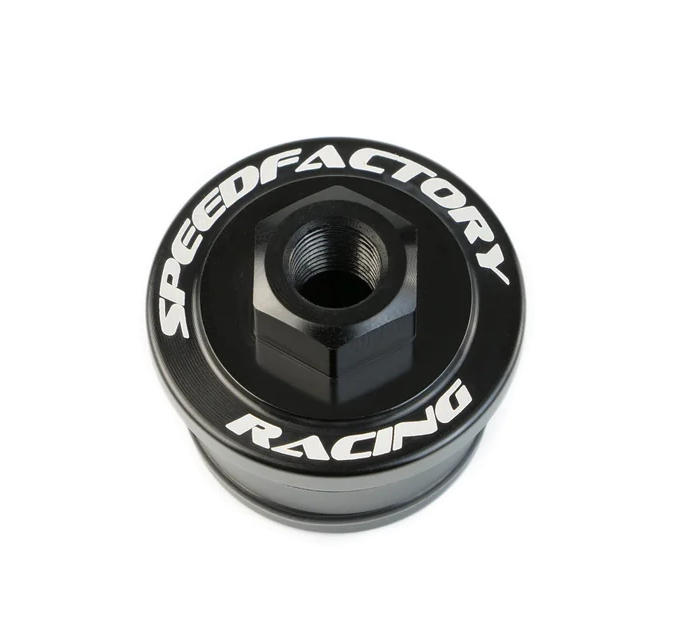

SpeedFactory Racing Billet B-Series Crankcase Pressure Port Fitting
Part Number: SFR-02-025

Be the first to review!
Retail: $30.44
$28.92
Save: $1.52 (5%)

Earn 57 Builders Club Points. Learn More


Out of Stock
Enter your email address to be notified when it is back in stock.

Product Details

Part Number: SFR-02-025
Brand: Speedfactory Racing
Color: Black

Are you monitoring crankcase pressure levels on your race car? If not you should be! Monitoring your crankcase pressure levels gives you valuable information about your engine's state of health & piston ring to cylinder wall sealing, and is highly recommended - especially on turbocharged cars that develop high levels of blow-by and crankcase pressure.

The SpeedFactory Billet B-Series Crankcase Pressure Port Fitting was designed specifically for use on Honda/Acura B-Series engines to plug the OEM "black box" breather port and provide a location that is directly in the crankcase to install a 1/8" NPT pressure sensor, giving accurate pressure readings during engine operation.

Features:
  • Precision CNC machined from 6061-T6 billet aluminum
  • Black Anodized finish adds durability and eliminates corrosion
  • Precise fit w/dual O-rings provides a tight, leak free seal & dampens vibrations to the sensor
  • 17mm wrench provision for easy tightening with integrated 1/8" NPT pressure sensor port
  • Laser-etched SpeedFactory Racing logo
  • You can combo this part with your choice of AEM pressure sensor in the drop down menu above. Sensors come with a 3-wire mating connector with 12" leads for ease of installation. There is no difference in functionality between brass or stainless sensor bodies.
NOTE: All Standalones and most factory based EMS such as Hondata etc support an auxilary 0-5v sensor input such as the commonly used 0-75 and 0-150psig pressure sensors.

Installation Notes: We recommend thoroughly cleaning the port in the block and the fitting with brake cleaner prior to installation, and then liberally coating it with HondaBond or Permatex Ultra Grey and allowing it to cure for 24hrs before use. This will act both as lubricant to facilitate installation and then will setup and bond the fitting into the block so that it doesn't blow out in the case of abnormally high crankcase pressures such as during the event of a piston failure.

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Trim
1988 Honda Prelude 2.0 Si
1988 Honda Prelude 2.0 Si 4WS
1989 Honda Prelude 2.0 Si
1989 Honda Prelude 2.0 Si 4WS
1990 Honda Prelude 2.0 Si
1991 Honda Prelude 2.0 Si
1994 Acura Integra GS-R
1994 Honda Civic del Sol VTEC
1995 Acura Integra GS-R
1995 Honda Civic del Sol VTEC
1996 Acura Integra GS-R
1996 Honda Civic del Sol VTEC
1997 Acura Integra GS-R
1997 Acura Integra Type R
1997 Honda CR-V LX
1997 Honda Civic del Sol VTEC
1998 Acura Integra GS-R
1998 Acura Integra Type R
1998 Honda CR-V EX
1998 Honda CR-V LX
1999 Acura Integra GS-R
1999 Honda CR-V EX
1999 Honda CR-V LX
1999 Honda Civic Si
2000 Acura Integra GS-R
2000 Acura Integra Type R
2000 Honda CR-V EX
2000 Honda CR-V LX
2000 Honda CR-V SE
2000 Honda Civic Si
2001 Acura Integra GS-R
2001 Acura Integra Type R
2001 Honda CR-V EX
2001 Honda CR-V LX
2001 Honda CR-V SE

Engine Fitment

Honda 2.0L/1972CC - 4 Cylinder (B20B4)
Honda 2.0L/1972CC - 4 Cylinder (B20Z2)
Honda 2.0L/1958CC - 4 Cylinder (B20A5)
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
