Images may be for reference only
Product Details
| Part Number: | SF-02-801 |
| Brand: | Speedfactory Racing |
| Color: | Black |
| Size: | -10AN |

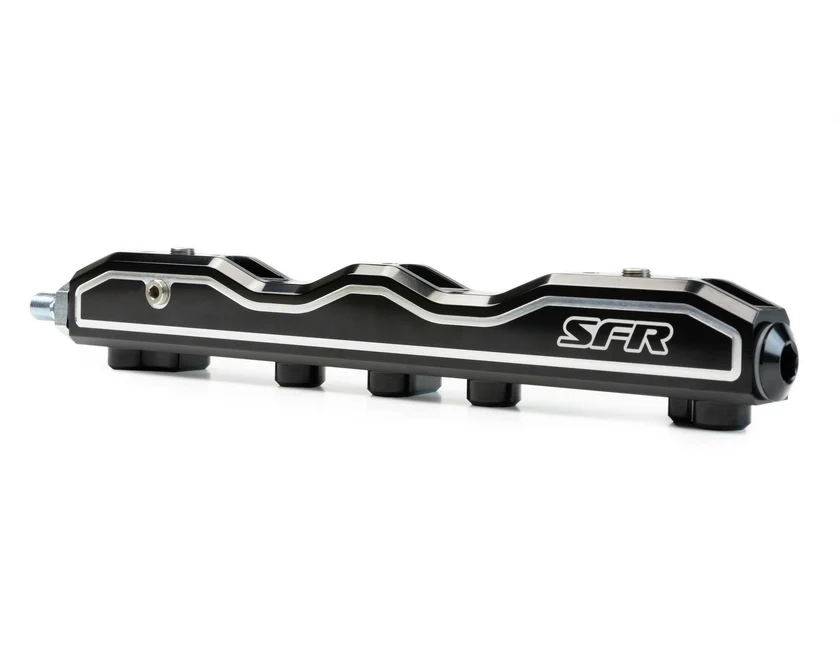

Speed Factory 10AN Mega Flow Fuel rails are CNC machined from 6061-T6 billet aluminum, then add a black anodized finish for improved durability and corrosion resistance. The large bore measures 0.806", which helps dampen pressure from fuel injectors. Combined with the featured -10 ORB inlet/outlets and Viton O-rings, the rails can handle even the most aggressive setups, up to 2000+hp. Angled OEM fuel pressure regulator mounting provision for bolt-on applications that helps with intake manifold runner clearance. Compatible with ethanol and methanol fuels.
Features:
- 0,806" bore
- 6061-T6 billet aluminum
- M6x1.0 threaded holes
Included:
- (1) High-Flow OEM Banjo to -10 ORB adaptor fitting
- (1) -10 ORB Port Plug for use in bolt-on applications
NOTE:
- Always make sure to thoroughly flush out any new fuel system components before use to make sure you do not get debris into your fuel injectors.
- Always check for fuel leaks before starting the engine.
- Replace all crush washers, O-rings, cushion rings, seal rings, and insulators when the fuel rail is disassembled.
- Different combinations of fuel injectors, adaptors, and intake manifolds require various spacers/adaptors/o-rings/etc for proper installation. This is a normal part of setting up your fuel system, and you will need to figure out the appropriate parts for your specific combination.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1990 | Acura | Integra | GS |
| 1990 | Acura | Integra | LS |
| 1990 | Acura | Integra | RS |
| 1991 | Acura | Integra | GS |
| 1991 | Acura | Integra | LS |
| 1991 | Acura | Integra | RS |
| 1992 | Acura | Integra | GS |
| 1992 | Acura | Integra | GS-R |
| 1992 | Acura | Integra | LS |
| 1992 | Acura | Integra | RS |
| 1993 | Acura | Integra | GS |
| 1993 | Acura | Integra | GS-R |
| 1993 | Acura | Integra | LS |
| 1993 | Acura | Integra | RS |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1834CC - 4 Cylinder (B18B1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
