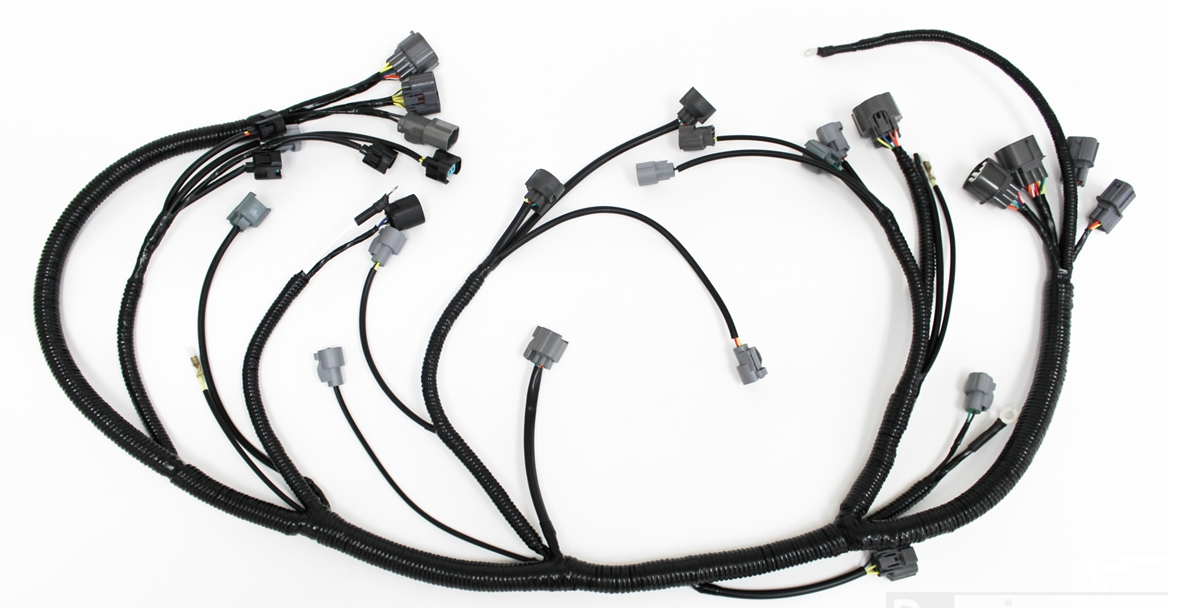

Rywire 92-95 Civic / 94-01 Integra B-Series Engine Harness
Part Number: RY-B2-OEM

Images may be for reference only

Rywire 92-95 Civic / 94-01 Integra B-Series Engine Harness
Part Number: RY-B2-OEM

Be the first to review!
$599.00 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1198 reward points. Learn More

2 In Stock
Ask us a Question

Product Details

Part Number: RY-B2-OEM
Brand: Rywire
Fitment Notes: Does Not Fit RHD Vehicles
The New Rywire OEM based harness is now available for the EG/DC chassis in LEFT HAND DRIVE orientation.

This wire harness is made to replace the engine bay harness in your 92-95 USA model Civics with B series (96-01)swaps and 94-01 Integra's (all models). Think of this harness like an OEM replacement USA model Type R harness. Ideal for Single runner type intake manifolds.

This harness is equipped with the following connectors:
  • Obd2 96-01 Distributor connectors
  • Obd2 96-01 Alternator connector
  • Obd2 96-01 Injector connectors
  • 92-01 spec Air temp sensor (B series Type R top of intake manifold)
  • 92-01 Oil pressure sending unit.
  • Alternator charge cable to fuse box.
  • 96+ spec crank shaft sensor (B series 2 wire oil pump mounted crank sensor) Obd1 ecu cars do not need this.
  • 92-01 knock sensor
  • 92-01 Idle motor
  • 92-01 TPS
  • 92-01 Map sensor
  • 92-01 Purge solenoid (B series Type R firewall side of intake manifold)
  • 92-01 Vtec solenoid
  • 92-01 Vtec solenoid pressure sensor
  • 92-01 Reverse light switch
  • 92-01 Water temp sensor
  • 92-01 Water temp sending unit
  • 92-01 Starter motor
  • 92-01 Fan switch
  • 92-01 Thermostat ground ring
  • 92-01 4 wire O2 sensor
  • 92-01 Speed sensor
  • 92-01 passenger side shock tower plugs
  • 92-01 Drivers side shock tower plugs
Notes:
  • If you are not using the crank shaft sensor or knock sensor please leave those disconnected. You will notice a 3 wire shock tower connector also not needed for all applications.
  • You will be required to use your original donor "power cap" connector from your factory harness. There will be no power to your harness without this cap connector. Easy to identify the 8 position cap with the yellow with black stripe wires running to it.
  • All connectors and materials are new. Each connector is crimped with pneumatic heads to ensure an OEM crimp every time. All heavy interference circuits are protected and grounded with proper wire covering. Our engine harnesses are 100% quality tested pin to pin; And resistance checked to ensure no voltage fluctuations.
  • These harnesses are warrantied and guaranteed to work, however they are non-refundable.

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Does Not Fit RHD Vehicles
Acura Integra
1997 Acura Integra GS
1998 Acura Integra GS
1999 Acura Integra GS
2000 Acura Integra GS
2001 Acura Integra GS
1994 Acura Integra GS-R
1995 Acura Integra GS-R
1996 Acura Integra GS-R
1997 Acura Integra GS-R
1998 Acura Integra GS-R
1999 Acura Integra GS-R
2000 Acura Integra GS-R
2001 Acura Integra GS-R
1994 Acura Integra LS
1995 Acura Integra LS
1996 Acura Integra LS
1997 Acura Integra LS
1998 Acura Integra LS
1999 Acura Integra LS
2000 Acura Integra LS
2001 Acura Integra LS
1994 Acura Integra RS
1995 Acura Integra RS
1996 Acura Integra RS
1997 Acura Integra RS
1998 Acura Integra RS
1995 Acura Integra Special Edition
1996 Acura Integra Special Edition
1997 Acura Integra Type R
1998 Acura Integra Type R
2000 Acura Integra Type R
2001 Acura Integra Type R
Honda Civic
1992 Honda Civic CX
1993 Honda Civic CX
1994 Honda Civic CX
1995 Honda Civic CX
1992 Honda Civic DX
1993 Honda Civic DX
1994 Honda Civic DX
1995 Honda Civic DX
1992 Honda Civic EX
1993 Honda Civic EX
1994 Honda Civic EX
1995 Honda Civic EX
1992 Honda Civic LX
1993 Honda Civic LX
1994 Honda Civic LX
1995 Honda Civic LX
1992 Honda Civic Si
1993 Honda Civic Si
1994 Honda Civic Si
1995 Honda Civic Si
1992 Honda Civic VX
1993 Honda Civic VX
1994 Honda Civic VX
Honda Civic del Sol
1993 Honda Civic del Sol S
1994 Honda Civic del Sol S
1995 Honda Civic del Sol S
1996 Honda Civic del Sol S
1997 Honda Civic del Sol S
1993 Honda Civic del Sol Si
1994 Honda Civic del Sol Si
1995 Honda Civic del Sol Si
1996 Honda Civic del Sol Si
1997 Honda Civic del Sol Si
1994 Honda Civic del Sol VTEC
1995 Honda Civic del Sol VTEC
1996 Honda Civic del Sol VTEC
1997 Honda Civic del Sol VTEC

Engine Fitment

Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
