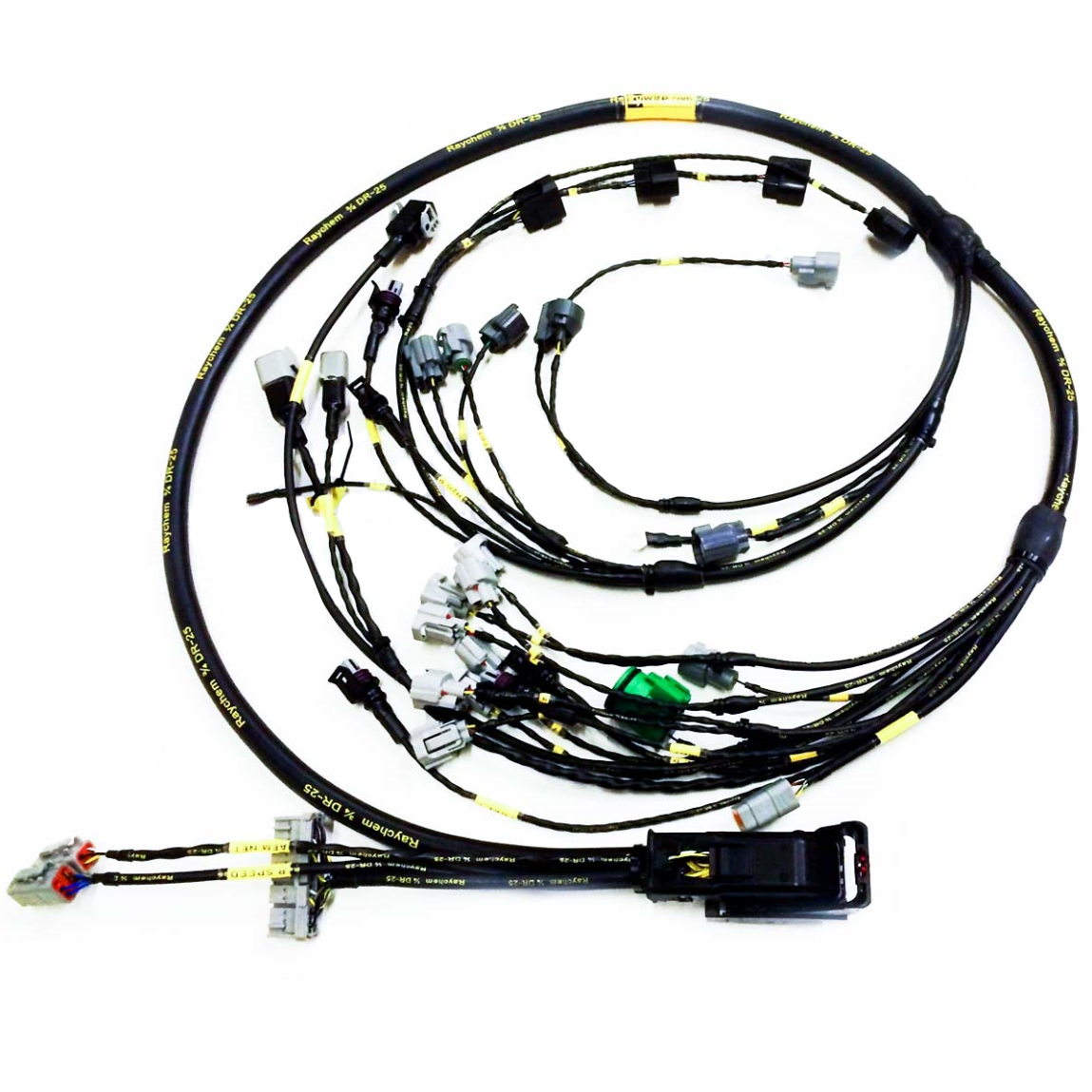

Rywire 96-98 Civic B-Series Infinity 506/508 (6/8h) Mil-spec Engine Harness
Part Number: RY-B-INFINITY-EK-2A

Images may be for reference only

Rywire 96-98 Civic B-Series Infinity 506/508 (6/8h) Mil-spec Engine Harness
Part Number: RY-B-INFINITY-EK-2A

Be the first to review!
$1,734.00 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 3468 reward points. Learn More


Out of Stock
Enter your email address to be notified when it is back in stock.

Product Details

Part Number: RY-B-INFINITY-EK-2A
Brand: Rywire

The Rywire Infinity 506/508 (6/8h) harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front wheel drive Hondas of today!

Rywire Honda B-Series AEM Infinity 508 MS Engine Harness w/K20 Coils/OBD2 Alt/EV14 Inj with Rywire 96-98 Honda Civic (2A) Chassis Specific Adapter for AEM Infinity (Fits LHD & RHD)

If you are building a Front wheel drive race car and need the data and flexibility of the top computers on the market, then this is the harness for you. The AEM Infinity EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. We have worked with some of the fastest front wheel drive race cars in the world and got there feedback. The harness we are offering allows for plenty of expansion, and pre-terminated connectors exactly where you need them.

Pre-terminated for:
  • COMPUTER Infinity 506 or Infinity 508 (AEM Part 30-7106 or 30-7108)
  • Lambda/ Uego Bosch 4.2LSU Wideband O2 sensor
  • AIR TEMP AEM (AEM Part 30-2010)
  • Fuel Pressure AEM (AEM Part 30-2130-100)
  • Oil Pressure AEM (AEM Part 30-2130-150)
  • Exhaust Backpressure (EMAP) AEM (AEM Part 30-2130-50 or 30-2130-75)
  • Manifold Pressure (MAP) AEM (AEM Part 30-2130-50 or 30-2130-75)
  • Throttle Position (TPS) Factory Honda
  • Coolant Sensor (ECT) Factory Honda
  • VTEC Factory Honda
  • Speed Sensor (VSS Hydro) Factory Honda
  • Reverse Lights Factory Honda
  • Starter Trigger Factory Honda
  • Coils Factory Honda K-series (Smart Coils)
  • Ground Ring Terminals for Coils and Computer Factory Honda
  • Knock Sensor Factory Honda
  • Alternator Factory Honda (OBD0/1 or OBD2 styles available)
  • Injectors (8 Injector) EV1,EV14,Nippon, and others. We recommend Injector Dynamics ID 2000 or/and ID 1000
  • Infinity 506 - Up to 6 Low or High Impedance Injectors
  • Infinity 508 - Up to 8 High Impedance Injectors only
  • Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit)
  • Rear speed expansion Rywire (Rywire rear speed kits for MAG or Hall sensors)
  • FLEX FUEL capable Rywire (Rywire flex fuel kit )
  • AUX expansion (Contains power, 5V, sen ground, and 3 AV inputs)
  • Trigger (CAM/CRANK) AEM/T1/Rywire (easily expandable for AEM EPM, T1 trigger, and Rywire CAM/CRANK trigger)
  • CAN BUS connectivity AEM NET (connects devices such as loggers, dashes, and gauges)

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Honda Civic
1996 Honda Civic CX
1997 Honda Civic CX
1998 Honda Civic CX
1996 Honda Civic DX
1997 Honda Civic DX
1998 Honda Civic DX
1996 Honda Civic EX
1997 Honda Civic EX
1998 Honda Civic EX
1998 Honda Civic GX
1996 Honda Civic HX
1997 Honda Civic HX
1998 Honda Civic HX
1996 Honda Civic LX
1997 Honda Civic LX
1998 Honda Civic LX
