Product Details
| Part Number: | RY-B-FUELTECH-550 |
| Brand: | Rywire |

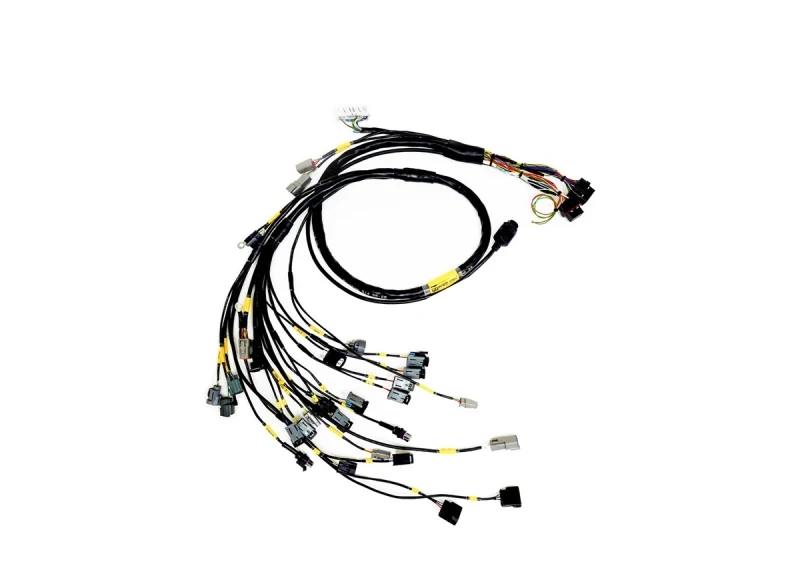

The Rywire Honda B-Series engine harness is designed to provide a reliable electrical connection for your Honda B-Series engine when paired with the FuelTech 550 ECU. The Rywire B-Series Fueltech 550 engine harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front Wheel Drive Hondas of today!
If you are building a Front (or all) wheel drive race car and need the data and flexibility of the top computers on the market, then this is the harness for you. The Fueltech EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. We have worked with some of the fastest Front Wheel Drive race cars in the world and got their feedback. The harness we are offering allows for plenty of expansion, and pre-terminated connectors exactly where you need them.
Features:
- Engine harness designed specifically for Honda B-Series engines
- Includes FuelTech 550 ECU compatibility for advanced engine control
- OBD1 connector for seamless integration with existing Honda systems
- EV14 injector connectors for reliable fuel delivery
- AEM IAT sensor included for precise intake air temperature monitoring
- MAP sensor included for accurate manifold pressure readings
- Durable construction ensuring long-term reliability
- Easy installation with adapter compatibility
Pre-terminated for:
- COMPUTER Plug Selections: Fueltech 550
- Programming Cable Ethernet, or USB-C, depending on computer choice
- Lambda/ Uego FuelTech computers require a NANO wideband unit with a wire harness. Our powered CAN plug can interface with the NANO subharness quite easily.
- AIR TEMP AEM (AEM Part 30-2014)
- OIL TEMP AEM (AEM Part 30-2013)
- Fuel Pressure AEM (AEM Part 30-2130-100)
- Oil Pressure AEM (AEM Part 30-2130-150)
- Exhaust Backpressure (EMAP) AEM (AEM Part 30-2130-50 or 30-2130-75)
- Manifold Pressure (MAP) AEM (AEM Part 30-2130-50 or 30-2130-75)
- Throttle Position (TPS) Factory Honda B series
- Coolant Sensor (ECT) Factory Honda B series
- VTEC Factory Honda (1992+)
- Speed Sensor (VSS Hydro) Factory Honda B series
- Reverse Lights Factory Honda (1992+)
- Starter Trigger Factory Honda
- Coils Factory Honda K-series (Smart Coils)
- Ground Ring Terminals for Coils and Computer Factory Honda
- Knock Sensor Bosch 0261231188 (2 wire EV1)
- Alternator Factory Honda (OBD0/1 or OBD2 styles available) Default is OBD2
- Injectors (8 Injector) Bosch EV14 Default (ID 1050X)
- Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit) DTM 2 pin
- FLEX FUEL capable Rywire (Rywire flex fuel kit ) if wired into the AUX connector.
- 12-pin Engine Bay AUX expansion (Contains power, 5V, sen ground, CAN, and 6 AV/DIG inputs)
- 5-pin Cabin AUX expansion (Contains 5V, sen ground, and 3 AV/DIG inputs)
- Trigger (CAM/CRANK) T1 Trigger sensor Default
- DBW (Drive-By-Wire) capable. We can create an AUX expansion to wire in the DBW T.B. and Pedal
- CAN BUS connectivity, Powered CAN (connects devices such as loggers, dashes, and gauges)
- Our Fuel Tech engine harness is designed to accept:
- T1 Race Development (cam trigger) Plugs directly into the loom labeled “Trigger.”
Chassis Adapter Options:
- This harness can plug and play into any chassis, but we recommend our Rywire standalone RACE fuse box
- This fuse box allows for a quick and easy install into any chassis, off-road car, sand rail, buggy, gutted circuit, or drag race car.
- This harness with the RACE fuse/relay box can also be plug and play with our SWITCH PANEL
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
