Product Details
| Part Number: | XNSPT069MP |
| Brand: | RS-R |
| Front Spring Rate: | 8K |
| Rear Spring Rate: | 9K |
| Front Adjustable Camber: | Yes |
| Rear Adjustable Camber: | No |
| Dampening Adjustment Levels: | 36 Levels |

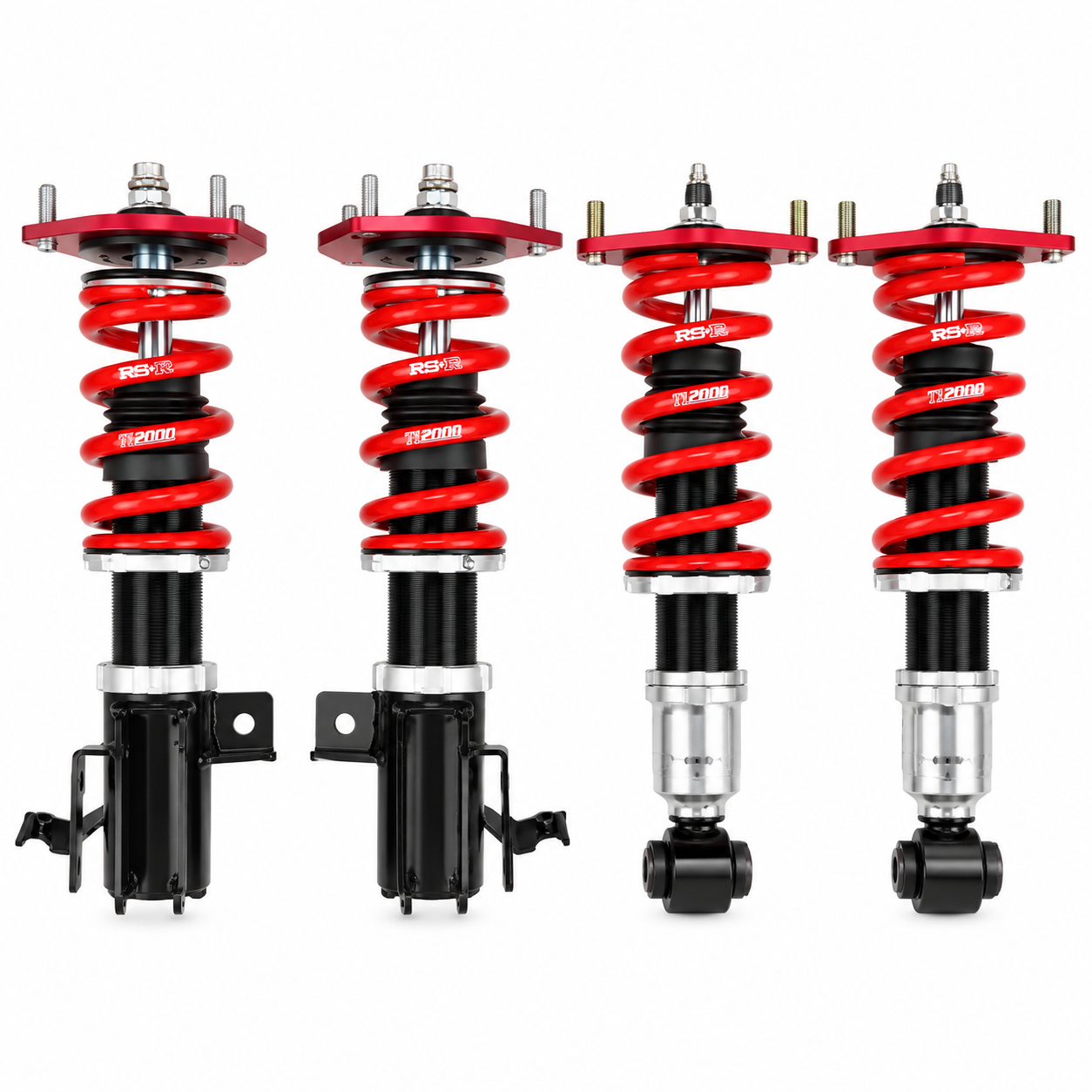

Fine tuned for competition, our RS-R Club Racer Series offers unquestionable performance with its track dedicated setup.
Preset Approximate Height From RS-R:
- Front -20mm to -25mm (-0.8inch to -1.0inch)
- Rear -20mm to -25mm (-0.8inch to -1.0inch)
Maximum Adjustment Ranges:
- Front +10mm to -60mm (+0.4inch to -2.4inch)
- Rear +20mm to -70mm (+0.8inch to -2.8inch)
Recommended Adjustments for Optimal Ride-ability:
- Front 0mm to -40mm (+0inch to -1.6inch)
- Rear +5mm to -40mm (+0.2inch to -1.6inch)
Spring Rates:
- Front 8.00kg/mm
- Rear 8.00kg/mm
Additional Information
- Dampers are 36 way adjustable in the front and 24 way adjustable in the rear
- Warranty: 1 Year / 12,000 miles from the day of purchase
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2013 | Scion | FR-S | Base |
| 2013 | Subaru | BRZ | Limited |
| 2013 | Subaru | BRZ | Premium |
| 2014 | Scion | FR-S | Base |
| 2014 | Subaru | BRZ | Limited |
| 2014 | Subaru | BRZ | Premium |
| 2015 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Limited |
| 2015 | Subaru | BRZ | Premium |
| 2015 | Subaru | BRZ | Series.Blue |
| 2016 | Scion | FR-S | Base |
| 2016 | Subaru | BRZ | Limited |
| 2016 | Subaru | BRZ | Premium |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Limited |
| 2017 | Subaru | BRZ | Premium |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Base |
| 2017 | Toyota | 86 | Special Edition |
| 2018 | Subaru | BRZ | Limited |
| 2018 | Subaru | BRZ | Premium |
| 2018 | Subaru | BRZ | TS |
| 2018 | Toyota | 86 | Base |
| 2018 | Toyota | 86 | GT |
| 2019 | Subaru | BRZ | Limited |
| 2019 | Subaru | BRZ | Premium |
| 2019 | Subaru | BRZ | Series.Gray |
| 2019 | Toyota | 86 | Base |
| 2019 | Toyota | 86 | GT |
| 2019 | Toyota | 86 | TRD Special Edition |
| 2020 | Subaru | BRZ | Limited |
| 2020 | Subaru | BRZ | TS |
| 2020 | Toyota | 86 | Base |
| 2020 | Toyota | 86 | GT |
| 2020 | Toyota | 86 | Hakone Edition |
