Images may be for reference only
Product Details
| Part Number: | XBIH034MA |
| Brand: | RS-R |
| Front Spring Rate: | 8K |
| Rear Spring Rate: | 6K |
| Front Adjustable Camber: | No |
| Rear Adjustable Camber: | No |
| Dampening Adjustment Levels: | 36 Levels |

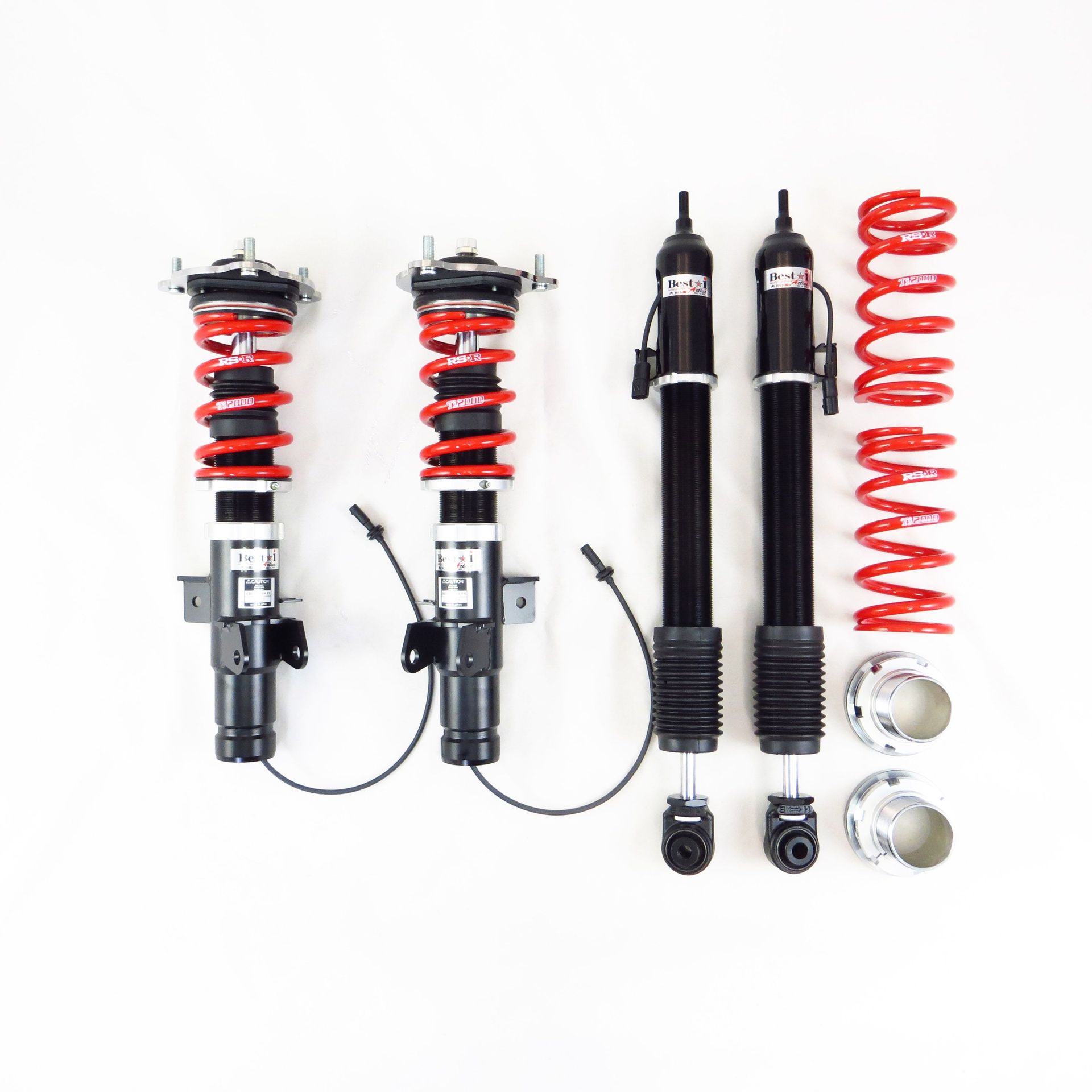

RS-R Honda Civic Type R 2023+ Best*i Active Coilover System
Preset Approximate Height
- Front: -25mm to -30mm (-1.0in to -1.2in)
- Rear: -30mm to -35mm (-1.2in to -1.4in)
Maximum Adjustment Range
- Front: +5mm to -50mm (-0.2in to -2.0in)
- Rear: -10mm to-55mm (-0.4in to -2.2in)
Recommended Adjustment Range
- Front: -5mm to -45mm (-0.2in to -1.8in)
- Rear: -10mm to -55mm (-0.4in to -2.2in)
Spring Rate
- Front: 8.00kg/mm
- Rear: 6.00kg/mm
Additional Information:
- Compatible with the Factory Adaptive Damper System
- Factory rear upper mount needs to be re-used
- Dampers are 36 way adjustable in the front and the rear
- Warranty: 1 Year / 12,000 miles from the day of purchase
- Included but not pictured: hex and allen wrench, rubber and poly seat for rear adjuster, flange nut for rear, zip ties, and harness for rear
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2023 | Honda | Civic | Type R |
| 2024 | Honda | Civic | Type R |
| 2025 | Honda | Civic | Type R |
| 2026 | Honda | Civic | Type R |
