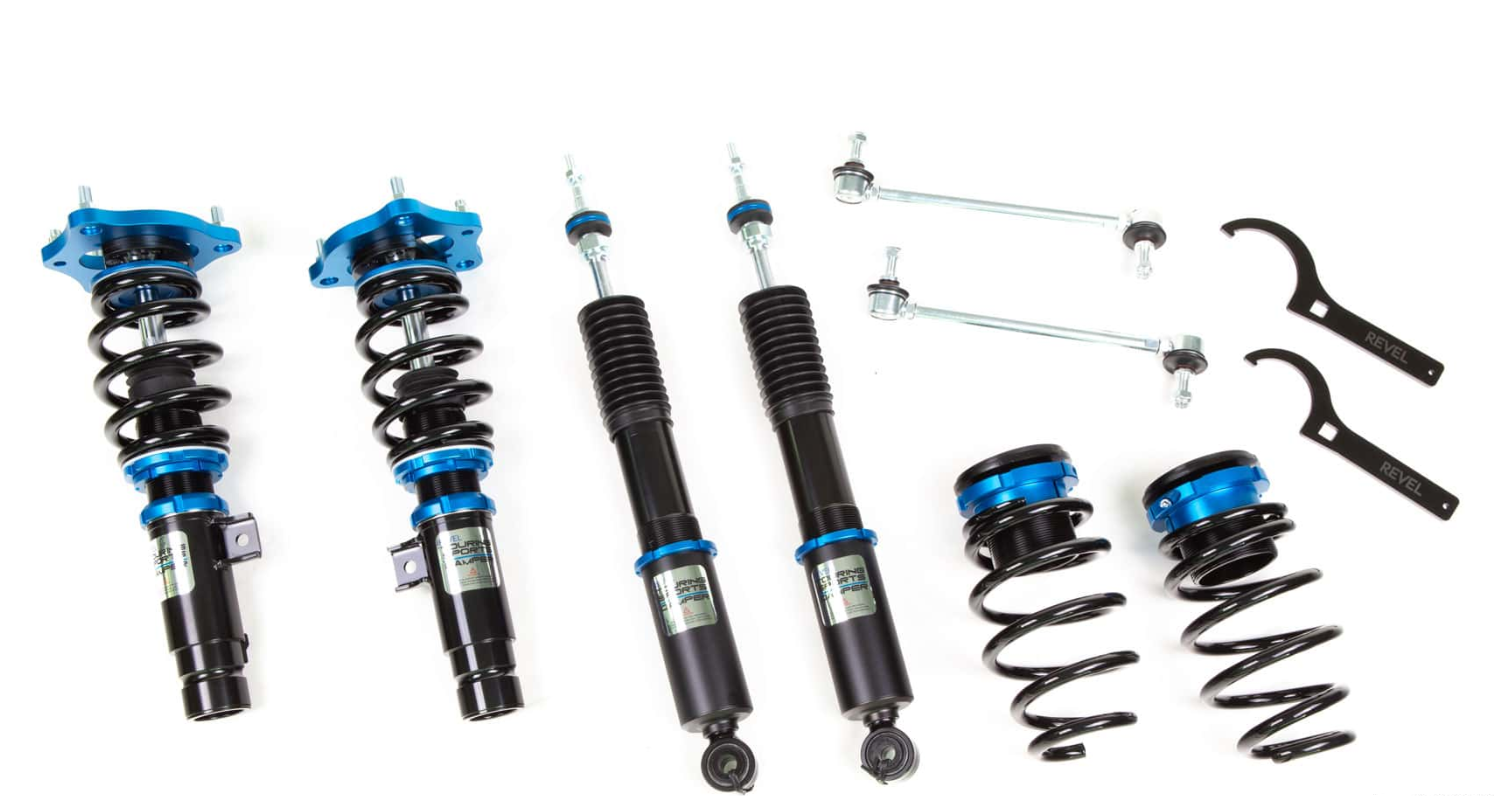

Images may be for reference only
Product Details
| Part Number: | 1TR3CDHN014 |
| Brand: | Revel |
| Front Spring Rate: | 6K |
| Rear Spring Rate: | 5K |
| Front Adjustable Camber: | Yes |
| Rear Adjustable Camber: | No |
| Dampening Adjustment Levels: | 32 Levels |
| Body Type: | Hatchback |
The 32 way adjustable Revel Touring Sports Damper is the ideal solution for the most comfortable ride in a coilover kit while achieving an extremely low ride height and utilizing the perfect balance of dampening forces and spring rates to deliver smooth performance when it is needed.
Features:
- Everyday Performance
- Pillowball Upper Mount
- Radial Bearings
- Coilover Covers
- Perfect Balance
- Monotube Damper
- Front Spring Rate: 6K
- Rear Spring Rate: 5K
- 32-Way Adjustable
EVERYDAY PERFORMANCE
The 32 way adjustable Revel Touring Sports Damper is the ideal solution for the most comfortable ride in a coilover kit while achieving an extremely low ride height and utilizing the perfect balance of dampening forces and spring rates to deliver smooth performance when it is needed.
PILLOWBALL UPPER MOUNT
Pillowball upper mounts give the driver greater driving feedback when compared to OEM rubber upper mounts. A spherical bearing is used in place of a rubber bushing and an adjustable camber plate is utilized on certain applications which aid in achieving improved tire traction and alignment.
RADIAL BEARINGS
Radial bearings are included on kits with MacPherson type struts*. These radial bearings isolate spring movement from the coilover assembly, thus eliminating more noise that is typically associated with aftermarket coilover systems.
COILOVER COVERS
Coilover covers are included on all Revel Touring Sports Damper coilover kits to offer an added layer of protection against harsh road and weather conditions. Made out of Neoprene material, the coilover covers protect the springs, shock shaft, and seals, from dirt and other debris. The zipper allows the cover to be installed securely and without the need to remove the coilover assembly.
PERFECT BALANCE
Spring rates are perfectly balanced between comfort and sport like feel for optimum ride quality. Full length thread body with independant preload allows for max lowering.
MONOTUBE DAMPER
Larger piston valves and oil capacity allows for a faster reacting dampening force and efficiency through all temperature ranges. High strength and rigidity brackets ensure the driver has the utmost confidence for all driving types
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim | Notes |
|---|---|---|---|---|
| 2016 | Honda | Civic | EX | Hatchback |
| 2016 | Honda | Civic | EX-L | Hatchback |
| 2016 | Honda | Civic | LX | Hatchback |
| 2017 | Honda | Civic | EX | Hatchback |
| 2017 | Honda | Civic | EX-L | Hatchback |
| 2017 | Honda | Civic | LX | Hatchback |
| 2017 | Honda | Civic | Sport | Hatchback |
| 2017 | Honda | Civic | Sport Touring | Hatchback |
| 2018 | Honda | Civic | EX | Hatchback |
| 2018 | Honda | Civic | EX-L | Hatchback |
| 2018 | Honda | Civic | LX | Hatchback |
| 2018 | Honda | Civic | Sport | Hatchback |
| 2018 | Honda | Civic | Sport Touring | Hatchback |
| 2019 | Honda | Civic | EX | Hatchback |
| 2019 | Honda | Civic | EX-L | Hatchback |
| 2019 | Honda | Civic | LX | Hatchback |
| 2019 | Honda | Civic | Sport | Hatchback |
| 2019 | Honda | Civic | Sport Touring | Hatchback |
| 2020 | Honda | Civic | EX | Hatchback |
| 2020 | Honda | Civic | EX-L | Hatchback |
| 2020 | Honda | Civic | LX | Hatchback |
| 2020 | Honda | Civic | Sport | Hatchback |
| 2020 | Honda | Civic | Sport Touring | Hatchback |
| 2021 | Honda | Civic | EX | Hatchback |
| 2021 | Honda | Civic | EX-L | Hatchback |
| 2021 | Honda | Civic | LX | Hatchback |
| 2021 | Honda | Civic | Sport | Hatchback |
| 2021 | Honda | Civic | Sport Touring | Hatchback |
