Revamp Your Ride: Drop-In Fuel Pump Hanger

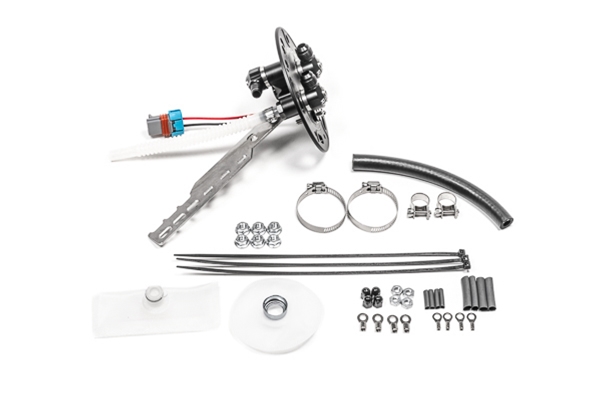

Experience seamless performance upgrades with the Radium Engineering Fuel Hanger. Designed to effortlessly replace your stock fuel pump assembly, this innovative solution eliminates the need for cutting or modifying your vehicle's sheet metal or fuel tank.

Engineered for Optimal Protection

The factory collector bowl positioning ensures fuel starvation protection, keeping your engine running smoothly. The anodized aluminum construction promises both durability and top-tier performance.

User-Friendly Connections

Featuring pre-tapped outlets:

• Fuel Pump Outlet: Equipped with 8AN ORB (3/4"-16) female threads. The preinstalled -6AN male fitting allows for an aftermarket feed line or connects effortlessly to the plumbing kit listed below.
• Return Inlet: Optimized with 6AN ORB (9/16"-18) female threads. The included -6AN male fitting permits an aftermarket return line or connects seamlessly to the specified plumbing kit.

All fittings are machined low to perfectly clear trunk sheet metal, eliminating installation hassles.

Advanced Electrical Reliability

Our custom-designed anti-rotation stainless steel electrical studs expertly manage high current demands. These serviceable connections are hermetically sealed and resistant to both standard and exotic fuels. Provided with non-conductive anodized aluminum acorn nuts to prevent accidental short-circuiting, the in-tank wiring uses chemically resistant ETFE insulation.

Key Features

• Drop-In Installation - No modifications required.
• Anodized Aluminum Construction - Built to last.
• Merged 8AN ORB Female Pump-Out Port - For enhanced connectivity.
• Fittings for Aftermarket Fuel Lines - Versatile and adaptable.
• Capable of 2 Pumps with Add-On - Expandable performance options.
• Compatible with Various Pumps - Including Walbro models.
• Included Fuel Pump Filter Sock - Ready out-of-the-box.
• High Current Electrical Hardware - Reliable under pressure.
• Stainless Steel Hardware and Clamps - Premium quality components.
• Gasoline, Methanol, and E85 Compliant - Flexible fuel compatibility.
• Anti-rotation Electrical Terminals - Secure and stable connections.
• Optional Dual Pump Kit - 20-3792 is available to add a second fuel pump

Supported Fuel Pump Models

Compatible with the following fuel pumps:

• Walbro F90000267
• Walbro F90000274
• Walbro F90000285
• Walbro F90000295
• Ti Automotive E5LM (brushless)
• Protec 11928 (brushless)
• Fuelab 49614 (brushless)
• Deatschwerks DW440 (brushless)
• Deatschwerks DW810 (brushless)

Ready to Transform Your Vehicle?

Elevate your fuel system effortlessly – Add to Cart now and drive at peak performance.
