Product Details
| Part Number: | 20-1095-05 |
| Brand: | Radium Engineering |
| CARB Approved: | No |
The Radium Engineering 20-1095-05 Fuel Hanger Plumbing Kit is designed for the 2023 and newer Honda Civic Type R FL5 equipped with the Radium in-tank fuel pump hanger. This comprehensive fuel system upgrade includes the plumbing components needed to create a reliable, organized fuel delivery setup while supporting performance-focused builds and demanding driving conditions.

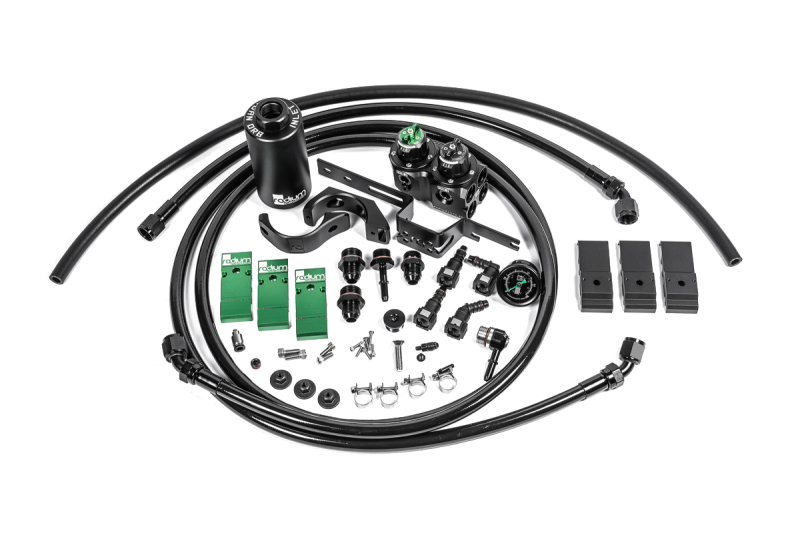

The kit includes PTFE fuel lines, a fuel filter with a microglass filter element, a fuel pressure regulator, mounting brackets, and the necessary fittings for installation. PTFE construction provides excellent resistance to modern fuels and helps support long-term durability. The included microglass filter helps capture contaminants before they reach sensitive fuel system components, while the pressure regulator helps maintain consistent fuel delivery.
In addition to factory direct injection applications, the Radium Engineering 20-1095-05 can be used with engines running aftermarket port injection alongside the original direct-injection system. The included brackets and fittings help simplify installation with the compatible Radium in-tank fuel pump hanger. Refer to the installation instructions available from Radium Engineering for vehicle-specific procedures and recommended routing.
This automotive fuel plumbing kit is intended for racing and off-road performance applications and is not emissions-certified for street-legal use. Professional installation is recommended to ensure proper fuel-line routing, fitting engagement, regulator setup, and leak inspection before operation.
Features:
- Drop-In Installation
- Aluminum and Stainless Construction
- Merged 10AN ORB Female Pump-Out Port
- Compatible with Various Pumps
- Brushless Fuel Pump Capable
- Capable of Running 1-3 Fuel Pumps
- Three 1-way Fill Valves in Collector
- Anti-Rotation Electrical Terminals
- High Current Electrical Hardware
- Gas, Methanol, and E85 Compliant
Includes:
- DFPR Fuel Pressure Regulator
- 0-100psi Fuel Pressure Gauge
- 6 or 10 micron fuel filter (-03 Stainless, -05 Microglass)
- 8AN Fuel Filter Adapter Fittings
- Fuel Brake Line Retainers (x3)
- 8AN PTFE Fuel Feed Hoses
- SAE Quick Connect Adapters
- Stainless Steel Hardware
- 5/32" Vacuum Tubing
- Misc Adapter Fittings
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2023 | Honda | Civic | Type R |
| 2024 | Honda | Civic | Type R |
| 2025 | Honda | Civic | Type R |
| 2026 | Honda | Civic | Type R |
Engine Fitment
Honda 2.0L/1996CC - 4 Cylinder (K20C1)
