Product Details
| Part Number: | 20-0484-12 |
| Brand: | Radium Engineering |
| Size: | -12AN |

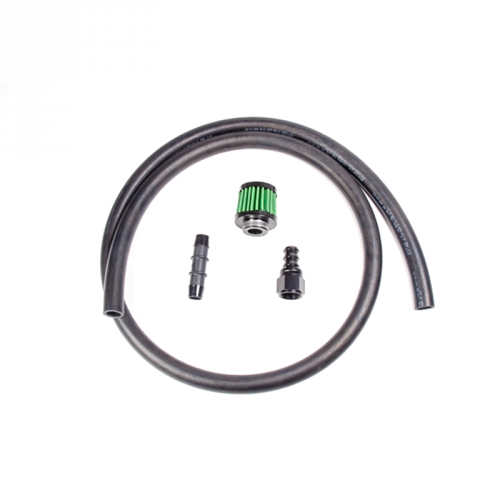

The Radium vent permits air to escape as the fuel cell is filled and it also allows the tank to breath to avoid pressurization during normal operation.
- This high flow kit is typically used for quick-fill systems that commonly use a dry break with a dump can.
- Includes an air filter
- 3/4" fuel vent hose
- Requires a 12AN male vent fitting.
NOTE: This can be used with Radium 20-0462 DSV, 12AN ORB to 12AN Male, Quick Fill
Important steps to properly route the vent line and prevent unwanted fuel loss:
- From the cell, the hose must first run upwards allowing any fuel captured in the vent line to drain back down into the cell.
- After ascending vertically, the line should briefly route towards the front of the vehicle to prevent fuel from sloshing out.
- Vertical loops should be added to act as a "make-shift" expansion chamber and allow air to escape and any fuel to drop to the bottom of the loops.
- Depending on the application, the overall vertical height of the vent hose should be at least 12".
- For remote fuel fill applications, the vertical loops must be higher than the fill point.
- The vent hose should terminate outside of the cabin and away from the exhaust system.
- The vent hose should terminate below and behind the fuel cell.
- Utilizing an expansion chamber that is larger than the vent hose diameter will further aid in preventing liquid fuel from escaping
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
