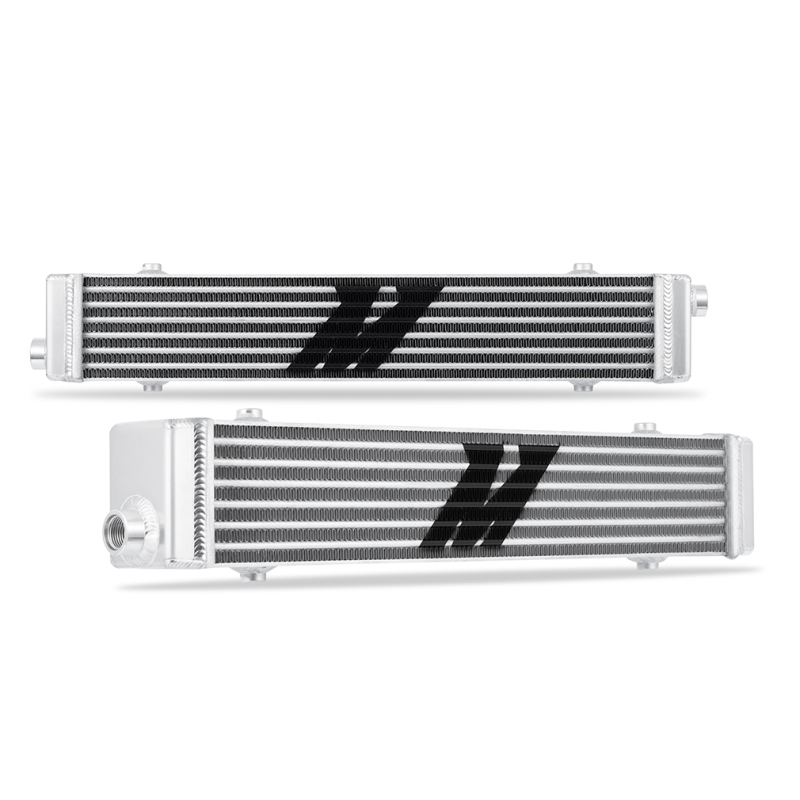

The Mishimoto MMOC-TF589-N universal tube-and-fin crossflow performance oil cooler is designed to regulate engine oil temperature and protect critical engine components in high-performance applications. Its lightweight tube-and-fin construction supports effective heat dissipation while helping maintain lubrication and reliable performance.

Rounded leading edges allow incoming air to pass smoothly through the core, while louvered fins direct airflow across the cooling surface to improve heat transfer. Turbulators inside the tubes increase surface contact and agitate the oil, promoting more efficient cooling throughout the core.

Full-aluminum TIG-welded end tanks support leak-free performance in demanding environments. Universal M8x1.25 mounting bosses on the top and bottom of the core simplify installation in a bumper or front cooling stack. The -10 ORB inlet and outlet are compatible with many widely available -AN adapters, including Mishimoto -10 ORB to -10AN and 3/4-inch fittings.

Pair the cooler with Mishimoto PTFE or CPE braided steel lines and -AN fittings for a complete oil cooling solution. The Mishimoto MMOC-TF589-N includes a Mishimoto Lifetime Warranty for long-term performance support.

Features:

• Tube-and-fin construction: Provides lightweight and effective oil cooling.
• Extruded tubes: Increase strength and support improved airflow through the cooler.
• Louvered fins: Direct airflow through the core to improve heat transfer.
• Turbulated tubes: Agitate the oil and increase tube surface contact for efficient cooling.
• TIG-welded aluminum end tanks: Support leak-free performance in demanding environments.
• Universal mounting bosses: M8x1.25 mounting bosses are located on the top and bottom of the core.
• -10 ORB ports: Inlet and outlet ports are compatible with many widely available -AN adapters.
• Lifetime Warranty: Includes the Mishimoto Lifetime Warranty.
