Product Details
| Part Number: | MMOC-CTR-23TSL |
| Brand: | Mishimoto |
| Color: | Silver |
| Size: | -10AN |
The 2023+ Honda Civic Type R is built to excel on the street or track, but even the most spirited drives can push engine oil to its limits. With the FL5 CTR's high-revving 2.0L turbocharged engine, extended hard driving can raise oil temperatures, risking performance and longevity. The Mishimoto Oil Cooler Kit for the 2023+ Honda Civic Type R is designed to keep oil temps in check while increasing system capacity, giving enthusiasts the confidence to push their Type R harder and longer.
Our oil cooler kit increases total oil capacity by 12 percent over stock and features a 19-row bar-and-plate cooler strategically positioned to receive maximum airflow. This cooler is also thermostatic to help bring oil up to optimal temperature for daily driving, and testing showed 5°F cooler oil temperatures compared to stock.
Installation is straightforward with all direct-fit components included. Black nylon oil lines connect seamlessly, and our billet oil line separator aligns hoses cleanly while keeping them clear of belts. The horn is relocated using the existing horn bracket, ensuring wiring harness integrity and maintaining horn position. Velcro line sleeves are included to protect all critical routing points, and minimal trimming of a plastic trim piece is required to properly install the lines.
This kit combines performance, durability, and thoughtful design to maintain oil temperatures during spirited driving sessions. Backed by the Mishimoto Lifetime Warranty, the 2023+ Civic Type R Oil Cooler Kit provides a reliable solution for enthusiasts who want more cooling, more capacity, and more peace of mind behind the wheel.
Features:
- Robust 19-row stacked plate cooler positioned for maximum airflow
- 12% increase in oil capacity over stock for improved thermal management
- Proven to keep oil temps 5°F cooler than stock during demanding driving conditions
- Direct-fit design allows for simple and clean installation
- Billet oil line separator keeps routing organized and secure
- Relocates the horn using existing bracket location with no wiring modifications needed
- Black nylon-sheathed stainless-steel lines ensure strength and reliability
- Mishimoto Lifetime Warranty

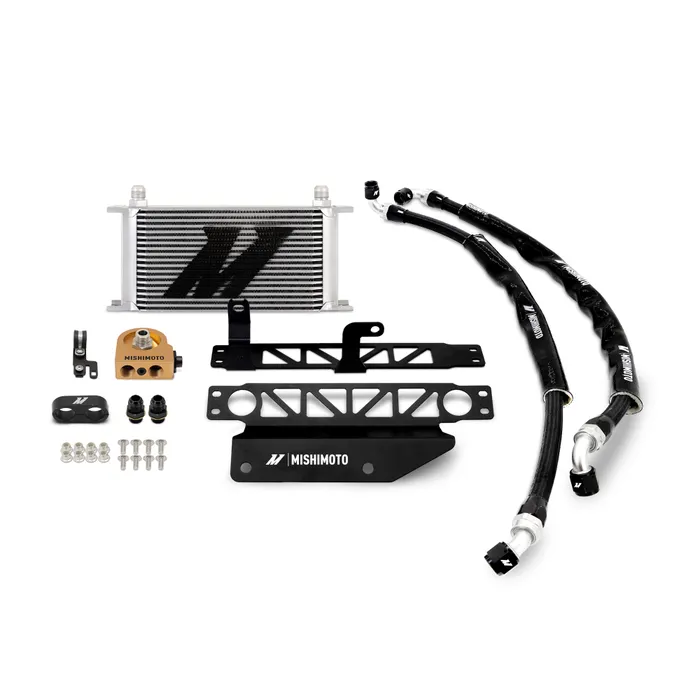

Includes:
- (1) 19 Row Oil Cooler
- (1) Bracket Kit
- (1) Hardware Kit
- (1) Oil Line Kit
- (1) Line Separator
- (1) Sandwich Plate Kit
Specifications:
- Inlet: AN 10
- Outlet: AN 10
- Core Construction: Stacked Plate
- Rows: 19
- Core Length (in): 11
- Core Height (in): 5.43
- Core Thickness (in): 1.97
- Overall Height (in): 9.98
- Overall Length (in): 12.99
- Overall Width (in): 5.37
- Weight (Pounds): 12
- Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
- Fluid Capacity (qts): 0.65 Quarts
Notes:
- Installation requires trimming or removal of the factory duct piece (71336-T20-A00). Trimming/removal of this piece will not affect performance.
- The FL5 Civic Type R DOES NOT have a factory oil temperature sensor. The oil temperature readings given by the vehicle display are an inferred value and are no longer accurate once an oil cooler is added.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
Honda Civic
2023 Honda Civic Type R
2024 Honda Civic Type R
2025 Honda Civic Type R
2024 Honda Civic Type R
2025 Honda Civic Type R
Engine Fitment
Honda 2.0L/1996CC - 4 Cylinder (K20C1)
Honda 2.0L/1996CC - 4 Cylinder (K20C1)
