Features:

19 Rows, Dual Pass

Overall Size: 14.80" x 8.27" x 1.77"

Core: 11.81" x 7.80"

Core Thickness: 1.42"

Tube & fin w/ cut & weld end tanks

.79 Quarts (.75L) Fluid Capacity

Limited Lifetime Warranty

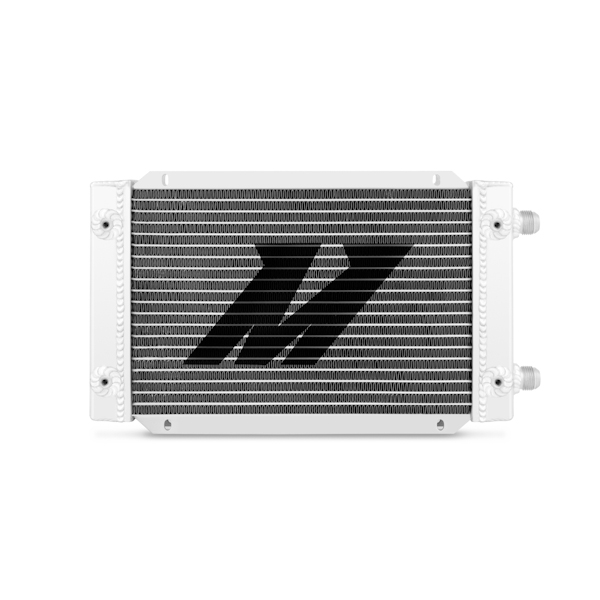

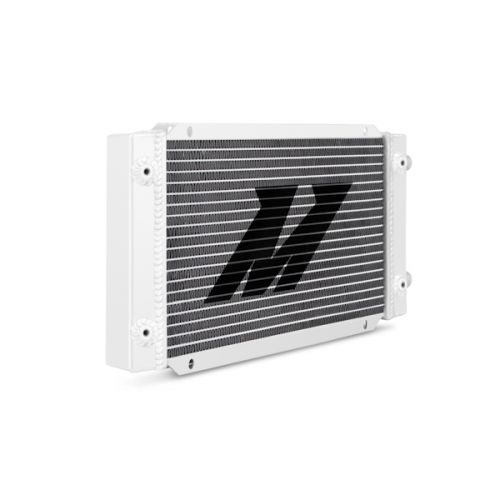

Mishimoto has developed a brand new universal dual pass oil cooler for enthusiasts that demand the most from their vehicles. Keeping oil temperatures in control is crucial for a successful day at the track, street or strip. High engine oil temperatures can promote engine wear and lead to serious internal engine damage. The Mishimoto dual pass cooler is constructed from high pressure internal tubes rated to 120psi and is built to handle the most extreme conditions.

The Mishimoto dual pass cooler offers an extremely large surface cooling area thanks to 8mm external fins so you can concentrate more on driving and less on temperatures. These coolers also possess the ability to cool all of your automotive fluids such as transmission and power steering fluid. As with all of our products the Mishimoto dual pass cooler is protected with our signature lifetime warranty.
