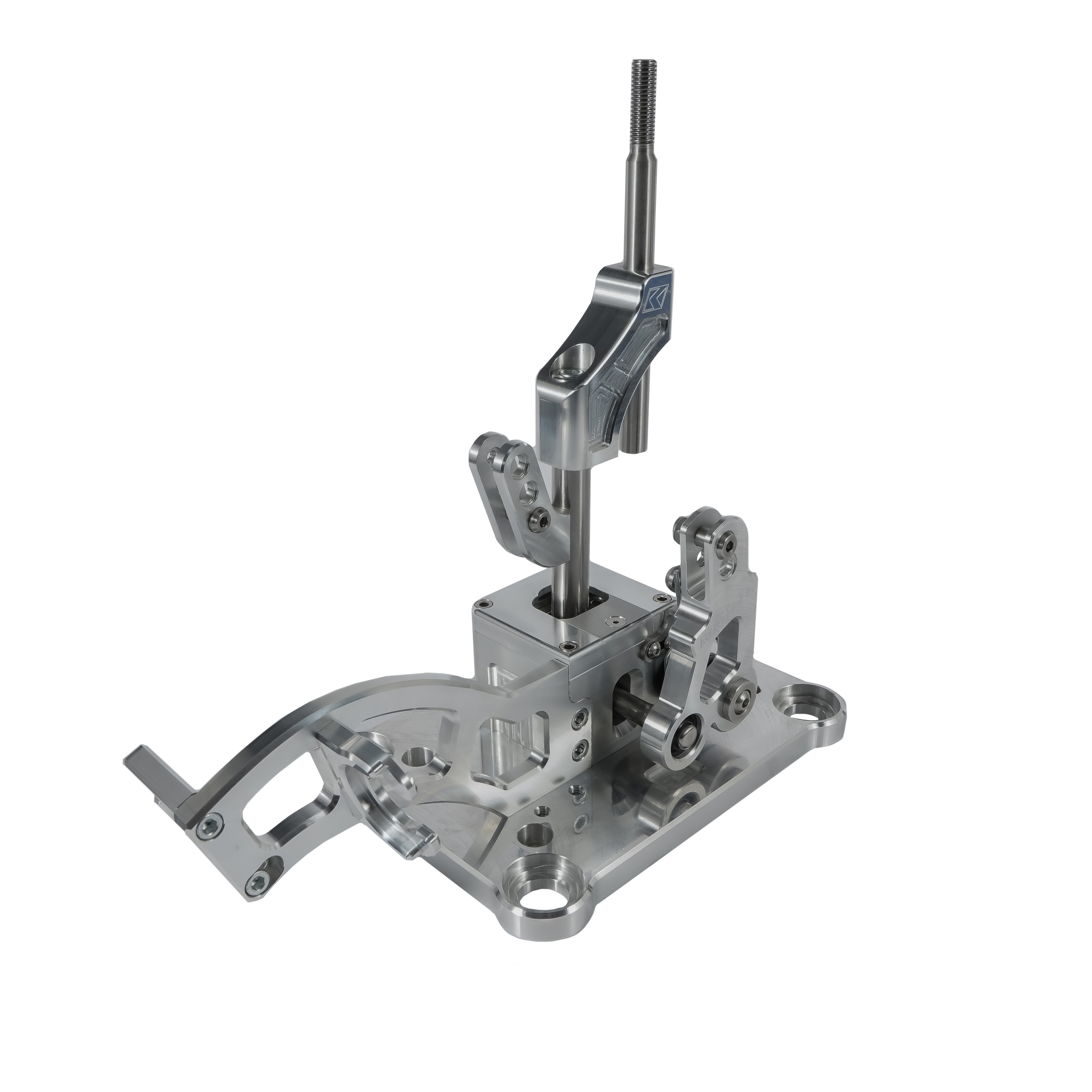

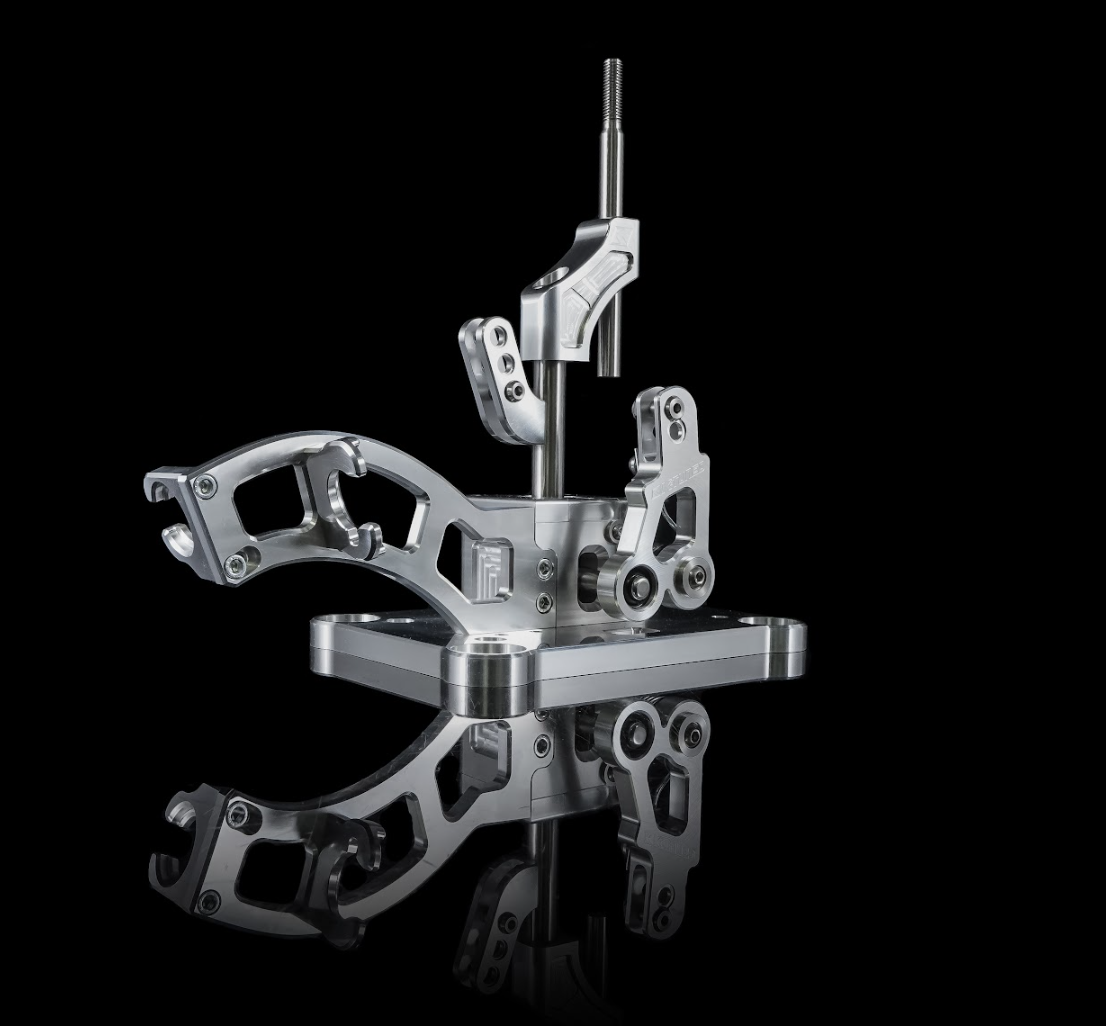

K-Tuned 02-06 RSX V3 Billet Shifter Box
Part Number: KTD-RSX-SF3

Images may be for reference only

Product Details

Part Number:	KTD-RSX-SF3
Brand:	K-Tuned
Transmission:	Manual

Newest revision of our popular Billet RSX Shifter. V3 features a full overhaul. The center cage section now uses self lubricating Delrin to ensure the longest and smoothest operation. We have retained the ability to adjust seat pressure but moved it to the top to make adjustment

Two available designs. Street version features an elbow that rotates through 10 positions to allow greater adjustment for ship knob position. You can also retain the shift boot in certain situations if installed in an RSX or using our under car mounting kit in a swap car. The drag/race version features a stronger elbow directly connected to the cables to reduce flex and increase overall strength.

The Rev3 features some refined and tweaked overall performance to give the shifter a crisper and smoother feel. We have made some visual changes to the design we think that really adds to the overall look. We were also able to take some weight out of it while increasing overall strength.

The K-Tuned Billet RSX Shifter is a direct replacement for the OEM 2002-2006 RSX-S shifter box and has been designed to work with both factory and aftermarket shifter cables. The full billet design is extremely strong and eliminates all the flex and looseness that are felt with the stock plastic box. The shift lever and pivot ball are made from solid stainless steel and are seated in a Delrin cage. For mounting, there are two different sets of holes on the base, so it can be easily bolted into several stock and K-swap applications. The Race-Spec Billet RSX Shifter was designed for professional hard-core racers and we are pleased to offer them a shifter that is truly "Race Proven".

Features:

Direct replacement for 2002-2006 RSX manual & 2002-2006 RSX Type S
Shifter arm does not clear shift boot in RSX, EM2, and ES1 on 6spd transmissions.
If you want to retain the stock look some minor modification is needed to the collar.
Also works for K-swapped EF, EG, DC, and EK
Upgraded cage featuring a self lubricating enclosure to ensure smooth operation for years
Independent Adjustment for Throw, Gate and Height
Angle Correcting Cable Bracket (Front/Back shifter cable bracket swivels to align shifter cables
Two Available styles - Race/Drag Version with stronger center section and Street/Road Course with swivel elbow allow more customization of shift knob position. (Can also retain shift boot with street version in some applications)
Adjustable seat pressure (Ensures shifter does not become sloppy over time)

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim	Notes
2001	Honda	Civic	DX	Manual
2001	Honda	Civic	EX	Manual
2001	Honda	Civic	GX	Manual
2001	Honda	Civic	HX	Manual
2001	Honda	Civic	LX	Manual
2002	Acura	RSX	Base	Manual
2002	Acura	RSX	Type-S	Manual
2002	Honda	Civic	DX	Manual
2002	Honda	Civic	EX	Manual
2002	Honda	Civic	GX	Manual
2002	Honda	Civic	HX	Manual
2002	Honda	Civic	LX	Manual
2002	Honda	Civic	Si	Manual
2003	Acura	RSX	Base	Manual
2003	Acura	RSX	Type-S	Manual
2003	Honda	Civic	DX	Manual
2003	Honda	Civic	EX	Manual
2003	Honda	Civic	GX	Manual
2003	Honda	Civic	HX	Manual
2003	Honda	Civic	LX	Manual
2003	Honda	Civic	Si	Manual
2004	Acura	RSX	Base	Manual
2004	Acura	RSX	Type-S	Manual
2004	Honda	Civic	DX	Manual
2004	Honda	Civic	EX	Manual
2004	Honda	Civic	GX	Manual
2004	Honda	Civic	HX	Manual
2004	Honda	Civic	LX	Manual
2004	Honda	Civic	Si	Manual
2004	Honda	Civic	Value Package	Manual
2005	Acura	RSX	Base	Manual
2005	Acura	RSX	Type-S	Manual
2005	Honda	Civic	DX	Manual
2005	Honda	Civic	EX	Manual
2005	Honda	Civic	EX Special Edition	Manual
2005	Honda	Civic	GX	Manual
2005	Honda	Civic	HX	Manual
2005	Honda	Civic	LX	Manual
2005	Honda	Civic	LX Special Edition	Manual
2005	Honda	Civic	Si	Manual
2005	Honda	Civic	Value Package	Manual
2006	Acura	RSX	Base	Manual
2006	Acura	RSX	Type-S	Manual
