Product Details
Part Number: | KWP-TK-506 |
Brand: | K-Tuned |
Back in 2006 we originally designed our K-Series Water Plate Kit that ran D/B Series alternator. We have revisited the project to breathe some new life into it. We constantly strive to improve and bring the very best to our customers and racers. The original design is still for sale today and that will not change. However, we have brought some nice new options with the ability to run a k-series alternator. The V2 kit can be installed on your original K-Tuned Water Plate *EXCLUDING* some original designs for those who want to upgrade to a k-series alternator.
For several years now racers have used electric water pumps to reduce the power robbing effects of parasitic drag from their engines. The reason is pretty simple, by reducing the number of accessories the crank needs to turn there can be some noticeable and impressive gains. The K-Tuned Water Pump Block Off Plate system was designed to setup a K-series engine to use an electric water pump cooling system. It replaces all of the bulky and heavy OEM accessories with a simple lightweight aluminum plate. The original alt bracket setup was designed to hold the older and lighter B or D series alternator and works well. The only difference is a little extra work for installation, so we decided to design a compatible alternator bracket setup that works with the original oem K-Series alternator.
This updated kit features a fully adjustable tensioner with an integrated pulley that mounts cleanly on the left side of our original Water Plate. The lower alt bracket then easily bolts up to existing holes on most K20 and K24A engine blocks. The result is a setup that is much simpler to install, with no additional parts or wiring needed. With the new version of this kit, We have upgraded our mounting hardware to include a larger ARP upper alternator mounting bolt, as well as 2 sets of larger bolts depending on which style K series alternator you have, for the lower mounting bracket. There are 2 mounting positions available to allow proper fitment with most stock crank pulleys. For the alternator, we made a lightweight CNC machined 6061 billet aluminum alternator pulley to replace the heavy oem unit. We have also included a custom length 7-rib belt, that fits with most oem crank pulleys and all hardware for installation. As a final bonus, check out our custom billet water pump bracket, it has been designed to hold our K-Tuned electric water pump right beside the plate setup. Just like the other brackets, this bolts up perfectly to existing holes on most K20 and K24A engine blocks. We can now confidently say that the K-Tuned Water Plate Kit is more complete than ever.
Features:
- Does NOT fit K24Z-Series
- Must drill out mounting bolt passages in alternator to allow for upgraded hardware. (SEE INSTRUCTIONS)
- This kit is designed to use the crank pulley from a K20 Type R or a medium sized K20A2.
- If using a larger crank pulley you may need to use a longer belt
- The 505 kit requires you to mount the electric water pump and source the coolant line from pump to plate depending on where the pump is mounted. You can utilize the supplied -12AN 90 degree fittings for your custom line.

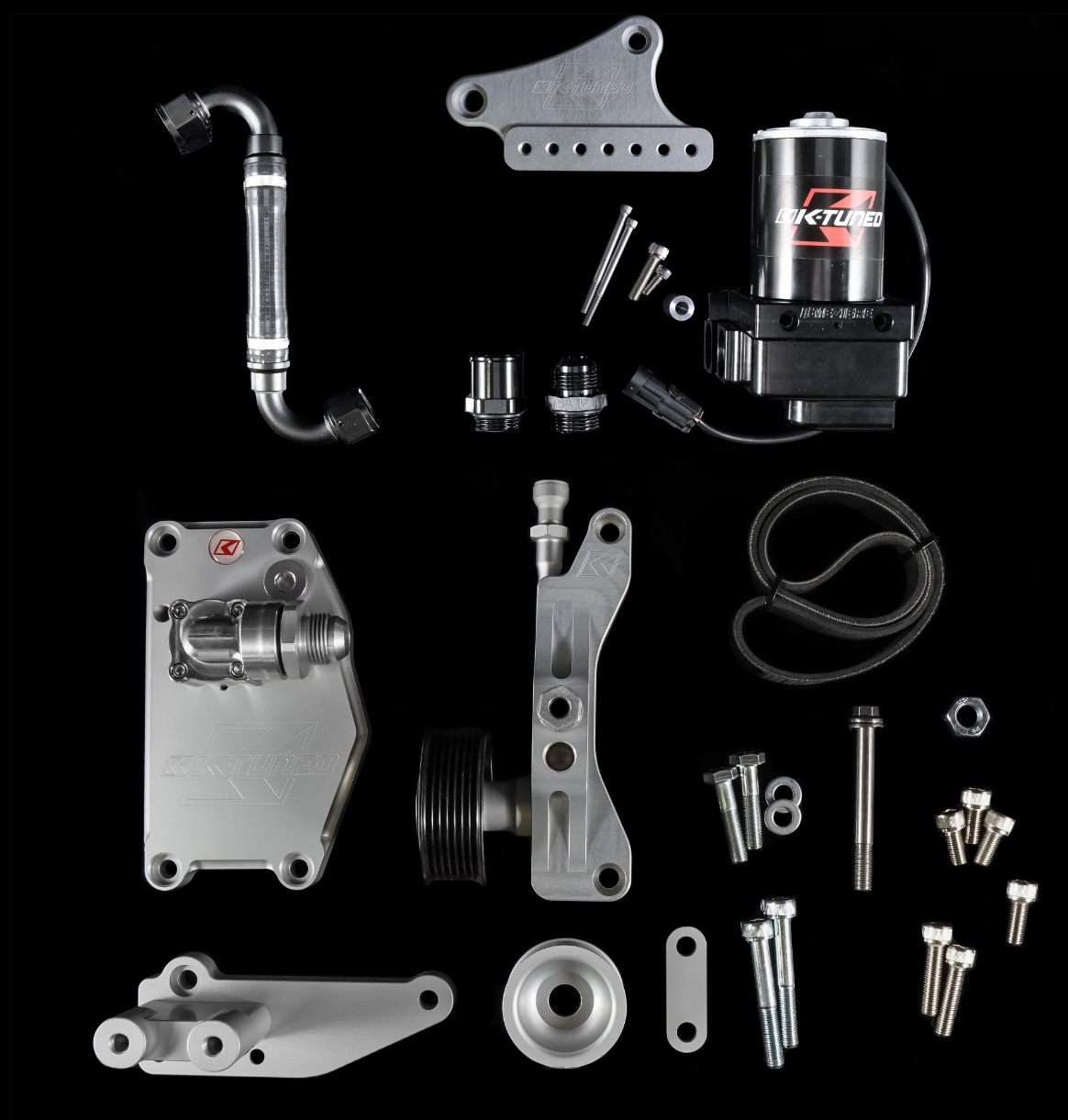

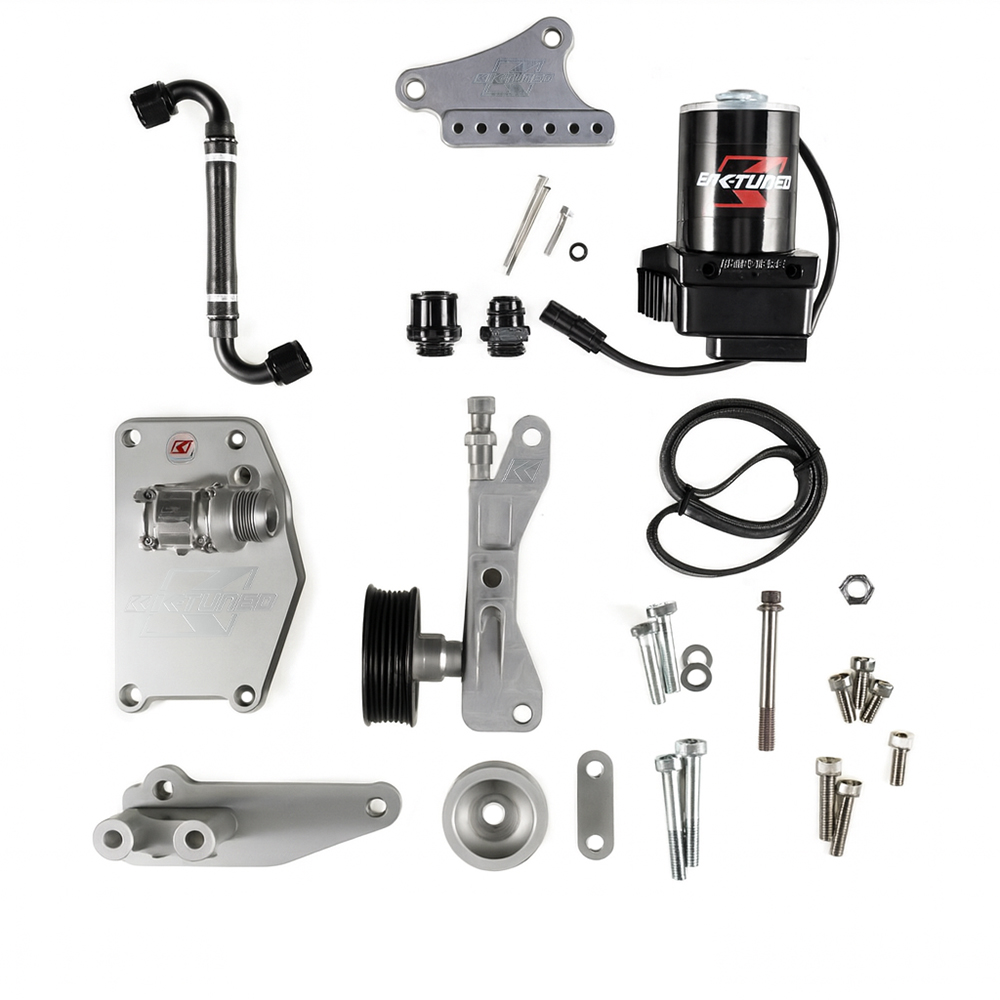

Complete Water Plate Kit Includes:
- Water pump block-off plate
- Alternator Mount kit and Tensioner
- Alternator Belt
- Alternator Pulley
- K-Tuned Electric Water Pump
- K-Tuned Water Pump Bracket (506 Kit)
- 8AN breather port plug
- 12AN 1.25 hose end fitting
- 12AN - 12 ORB fitting
- 2 feet of -12AN braided coolant line
- Pre assembled coolant line from pump to plate (506 Kit)
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
Acura RSX
2002 Acura RSX Manual
2003 Acura RSX Manual
2004 Acura RSX Manual
2005 Acura RSX Manual
2006 Acura RSX Manual
2002 Acura RSX Type-S
2003 Acura RSX Type-S
2004 Acura RSX Type-S
2005 Acura RSX Type-S
2006 Acura RSX Type-S
Acura TSX
2004 Acura TSX All
2005 Acura TSX All
2006 Acura TSX All
2007 Acura TSX All
2008 Acura TSX All
Honda Accord
2003 Honda Accord Coupe
2004 Honda Accord Coupe
2005 Honda Accord Coupe
2006 Honda Accord Coupe
2007 Honda Accord Coupe
2008 Honda Accord Coupe
2009 Honda Accord Coupe
2010 Honda Accord Coupe
2011 Honda Accord Coupe
2012 Honda Accord Coupe
2003 Honda Accord Sedan
2004 Honda Accord Sedan
2005 Honda Accord Sedan
2006 Honda Accord Sedan
2007 Honda Accord Sedan
2008 Honda Accord Sedan
2009 Honda Accord Sedan
2010 Honda Accord Sedan
2011 Honda Accord Sedan
2012 Honda Accord Sedan
Honda Civic
2006 Honda Civic Si Coupe
2007 Honda Civic Si Coupe
2008 Honda Civic Si Coupe
2009 Honda Civic Si Coupe
2010 Honda Civic Si Coupe
2011 Honda Civic Si Coupe
2002 Honda Civic Si Hatchback
2003 Honda Civic Si Hatchback
2004 Honda Civic Si Hatchback
2005 Honda Civic Si Hatchback
2007 Honda Civic Si Sedan
2008 Honda Civic Si Sedan
2009 Honda Civic Si Sedan
2010 Honda Civic Si Sedan
2011 Honda Civic Si Sedan
Honda CR-V
2006 Honda CR-V All
2007 Honda CR-V All
2008 Honda CR-V All
2009 Honda CR-V All
2010 Honda CR-V All
2011 Honda CR-V All
Honda Element
2003 Honda Element All
2004 Honda Element All
2005 Honda Element All
2006 Honda Element All
2007 Honda Element All
2008 Honda Element All
2009 Honda Element All
2010 Honda Element All
2011 Honda Element All
