Product Details
| Part Number: | KUW-4ZS-F04 |
| Brand: | K-Tuned |

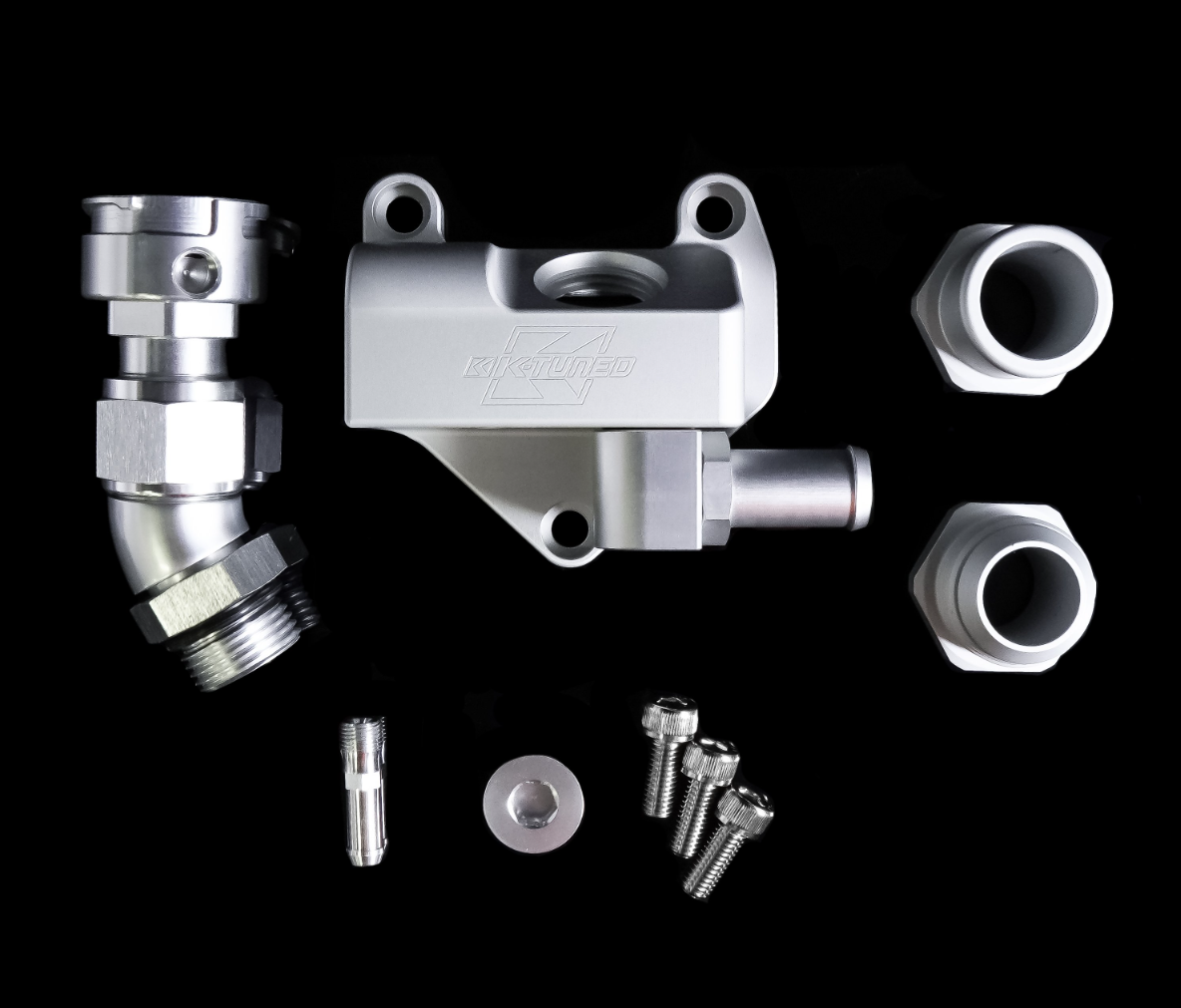

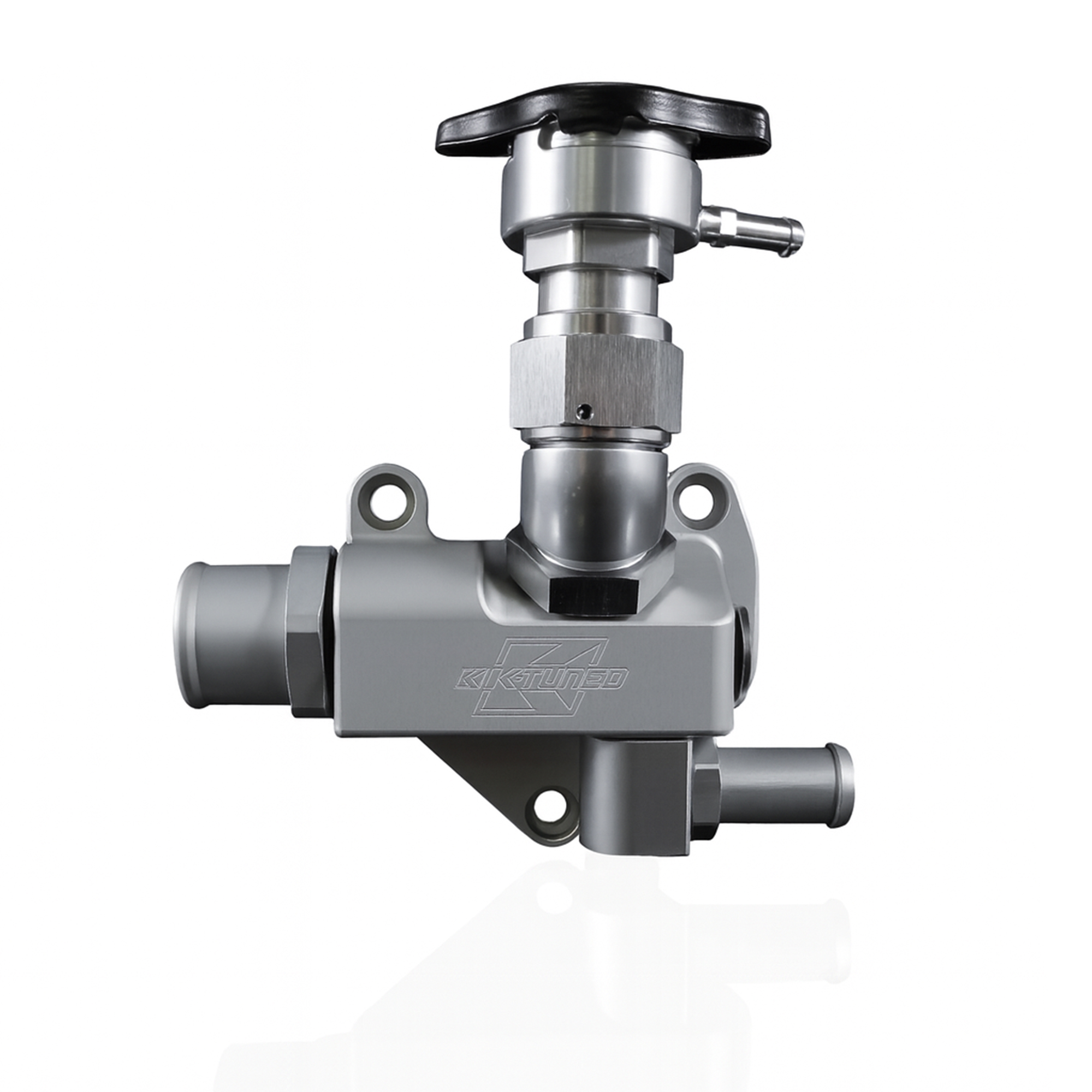

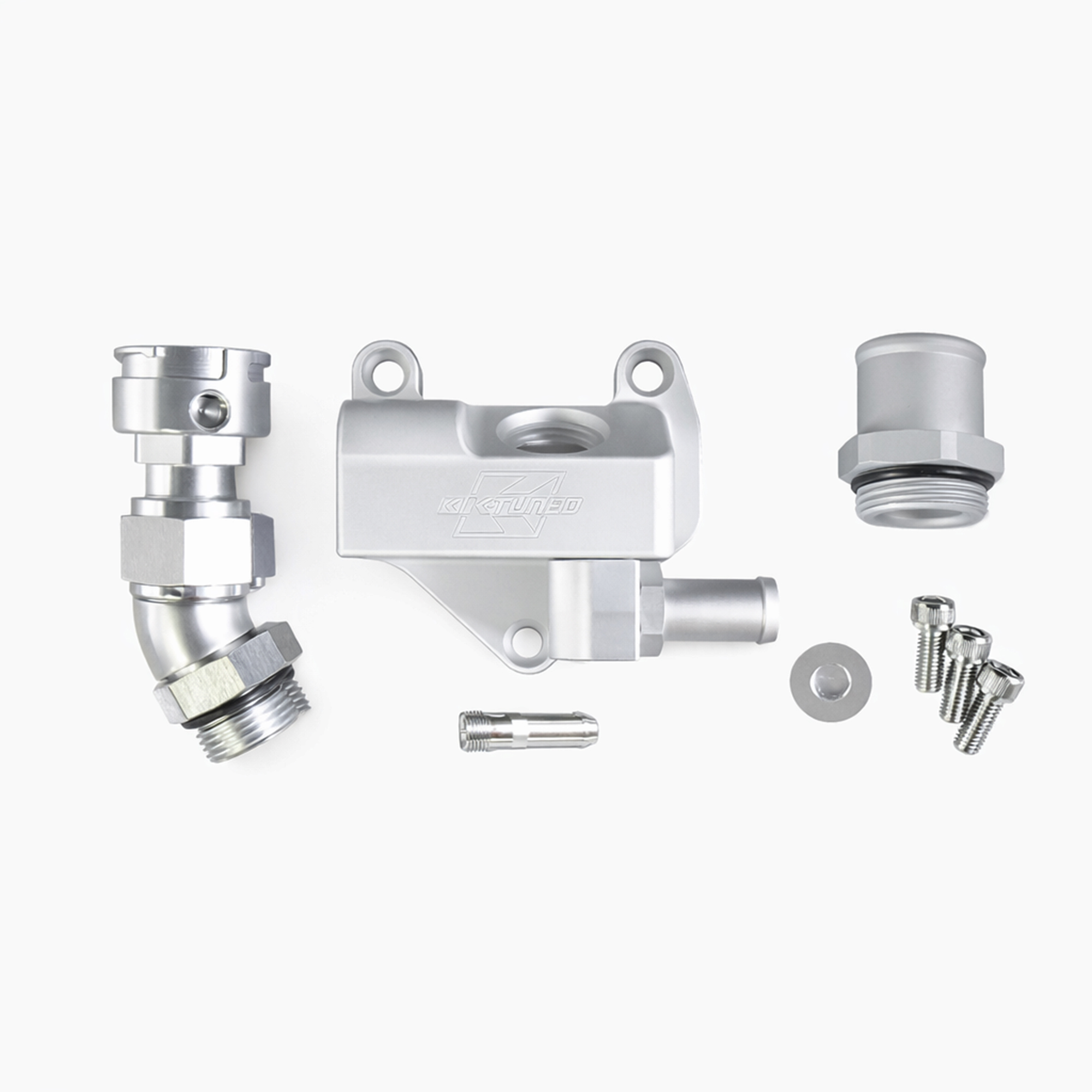

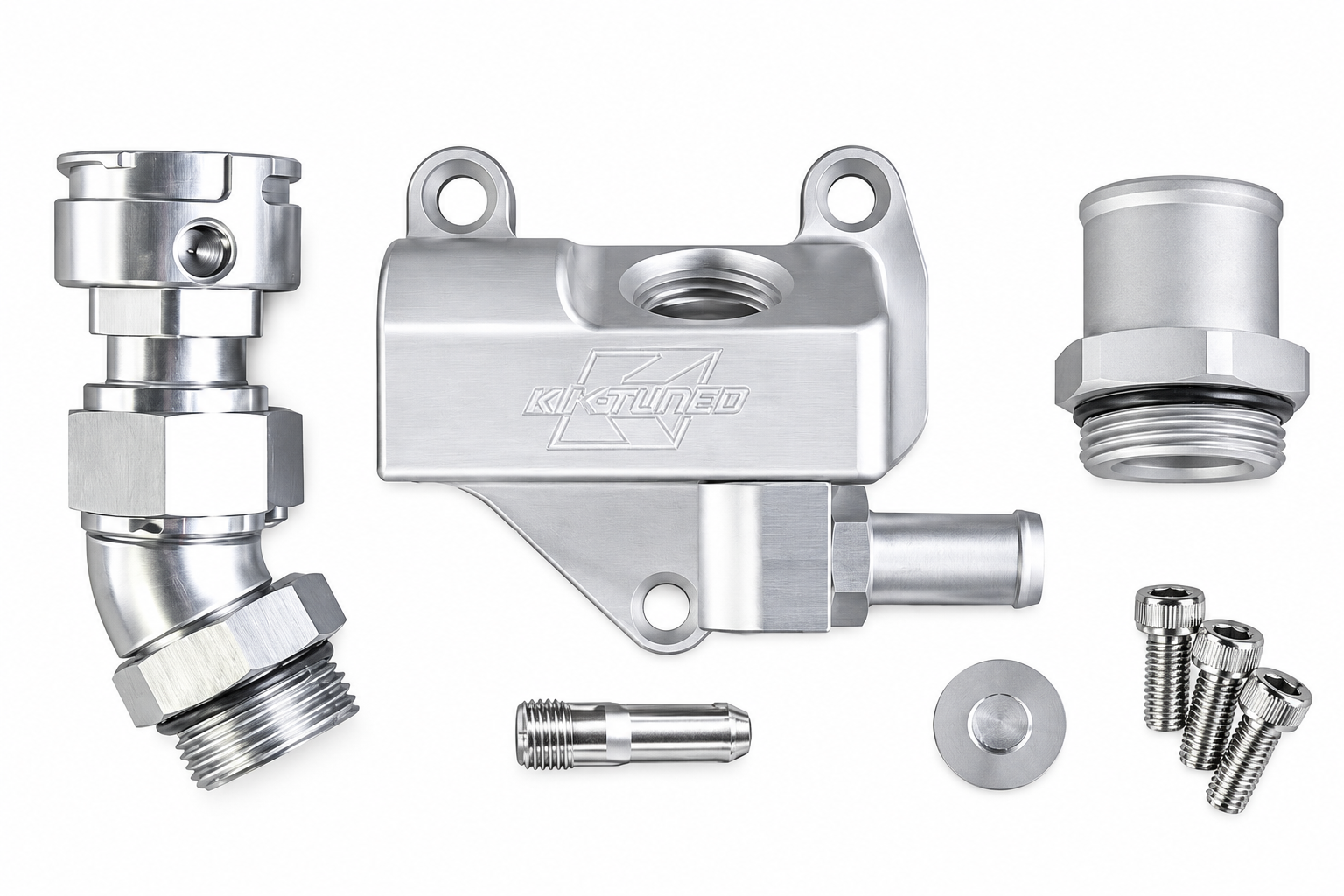

K-Tuned Upper Coolant Housing for the K24Z series engines will provide several unique advantages over the stock units. The hose outlet on the K-Tuned housing pivots slightly, allowing approximately 15 degrees of angle adjustment. This is helpful when compared to the fixed the factory outlet that always seems to put the upper rad hose in the path of the intake piping. There are three available hose outlets to work with any radiator hose setup. Choose the standard 1.25" rad hose outlet for use with regular rubber or silicone rad hoses.
We have also designed an optional Filler Neck that can be used to relocate the radiator cap to a higher point on the engine itself. The new location is the highest point of the cooling system and allows air pockets to easily escape during the coolant bleeding process. The optional Filler Neck is also available with standard 1.25" hose or in 16AN sizes and was designed for use with an OEM 92-00 Honda Civic radiator cap. This part will be very helpful on an engine that already has a bad reputation for coolant bleeding.
The K-Tuned Upper Coolant Housing will compliment our Swivel Neck Thermostat and our Water Pump Block off Plate. All of these parts allow plenty of options for custom and race engine cooling setups.
Applications:
- K24Z Series Engines
Features:
- Hose End 1.25
Note:
- Will NOT work with K24A1 and K24Y Series Engines
- May Have fitment issues with turbos depending on size of turbo and manifold
- Rad cap is not included
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2007 | Honda | CR-V | EX |
| 2007 | Honda | CR-V | EX-L |
| 2007 | Honda | CR-V | LX |
| 2008 | Honda | Accord | LX |
| 2008 | Honda | Accord | LX-P |
| 2008 | Honda | Accord | LX-S |
| 2008 | Honda | CR-V | EX |
| 2008 | Honda | CR-V | EX-L |
| 2008 | Honda | CR-V | LX |
| 2009 | Acura | TSX | Base |
| 2009 | Honda | Accord | EX-L |
| 2009 | Honda | Accord | LX |
| 2009 | Honda | Accord | LX-P |
| 2009 | Honda | Accord | LX-S |
| 2009 | Honda | CR-V | EX |
| 2009 | Honda | CR-V | EX-L |
| 2009 | Honda | CR-V | LX |
| 2010 | Acura | TSX | Base |
| 2010 | Honda | Accord | EX-L |
| 2010 | Honda | Accord | LX |
| 2010 | Honda | Accord | LX-P |
| 2010 | Honda | Accord | LX-S |
| 2010 | Honda | CR-V | EX |
| 2010 | Honda | CR-V | EX-L |
| 2010 | Honda | CR-V | LX |
| 2011 | Acura | TSX | Base |
| 2011 | Honda | Accord | EX |
| 2011 | Honda | Accord | LX |
| 2011 | Honda | Accord | LX-P |
| 2011 | Honda | Accord | LX-S |
| 2011 | Honda | Accord | SE |
| 2011 | Honda | CR-V | EX |
| 2011 | Honda | CR-V | EX-L |
| 2011 | Honda | CR-V | LX |
| 2011 | Honda | CR-V | SE |
| 2012 | Acura | TSX | Base |
| 2012 | Acura | TSX | Special Edition |
| 2012 | Honda | Accord | LX |
| 2012 | Honda | Accord | LX-P |
| 2012 | Honda | Accord | LX-S |
| 2012 | Honda | Accord | SE |
| 2012 | Honda | CR-V | EX |
| 2012 | Honda | CR-V | EX-L |
| 2012 | Honda | CR-V | LX |
| 2012 | Honda | Civic | Si |
| 2013 | Acura | ILX | Base |
| 2013 | Acura | TSX | Base |
| 2013 | Acura | TSX | Special Edition |
| 2013 | Honda | CR-V | EX |
| 2013 | Honda | CR-V | EX-L |
| 2013 | Honda | CR-V | LX |
| 2013 | Honda | Civic | Si |
| 2014 | Acura | ILX | Base |
| 2014 | Acura | TSX | Base |
| 2014 | Acura | TSX | Special Edition |
| 2014 | Honda | CR-V | EX |
| 2014 | Honda | CR-V | EX-L |
| 2014 | Honda | CR-V | LX |
| 2014 | Honda | Civic | Si |
| 2015 | Honda | Civic | Si |
Engine Fitment
Honda 2.4L/2354CC - 4 Cylinder (K24Z3)
Honda 2.4L/2354CC - 4 Cylinder (K24Z7)
Honda 2.4L/2354CC - 4 Cylinder (K24Z2)
Honda 2.4L/2354CC - 4 Cylinder (K24Z6)
Honda 2.4L/2354CC - 4 Cylinder (K24Z7)
Honda 2.4L/2354CC - 4 Cylinder (K24Z2)
Honda 2.4L/2354CC - 4 Cylinder (K24Z3)
Honda 2.4L/2354CC - 4 Cylinder (K24Z1)
