Product Details
| Part Number: | 302504 |
| Brand: | JE Pistons |
| Bore: | 81.5mm |
| Compression Ratio: | 10.0:1 |
| Oversize: | +0.5mm |
| Stroke (mm): | 77.4 |
| Rod (mm): | 134.4 |
| C/D (mm): | 30 |
| Head CC's: | 42.7 |
| Dome CC's: | 5.2 |
| Skirt: | F |
| Includes Piston Rings: | Yes |

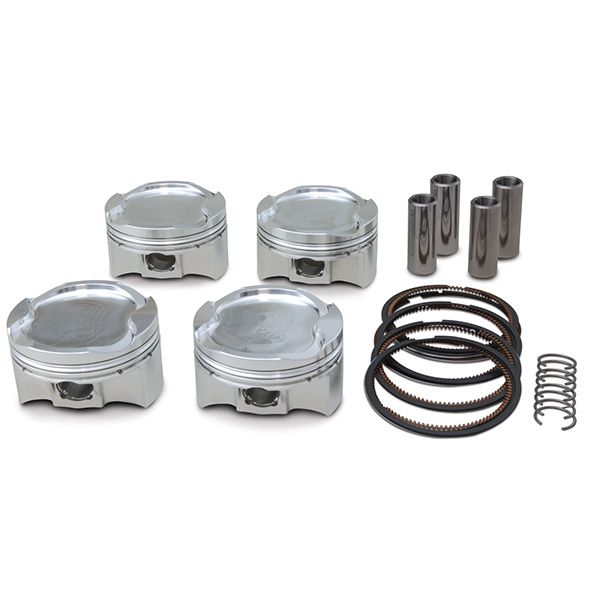

JE Pistons for the Honda B-Series with VTEC Head
- 10.0:1 Compression
- 81.5 Bore
- Dome/Dish requires no deburring or preparation
- 2618 T6 high tensile forged aluminum
- JE designs are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy.
- Dome and dishes feature smooth flowing radii for excellent flame travel.
- 1.0 x 1.2 x 2.8mm ring widths.
- .827 x 2.250 straight wall carbon steel wrist pin provided.
- Pin fitting and wire locks included
- Rings Now Included
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1994 | Acura | Integra | GS-R |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | Type R |
| 1999 | Acura | Integra | GS-R |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
