Product Details
| Part Number: | 302503 |
| Brand: | JE Pistons |
| Bore: | 81.5mm |
| Compression Ratio: | 9.0:1 |
| Oversize: | +0.5mm |
| Stroke (mm): | 77.4 |
| Rod (mm): | 134.4 |
| C/D (mm): | 30 |
| Head CC's: | 42.7 |
| Dome CC's: | -1.9 |
| Skirt: | F |
| Includes Piston Rings: | Yes |

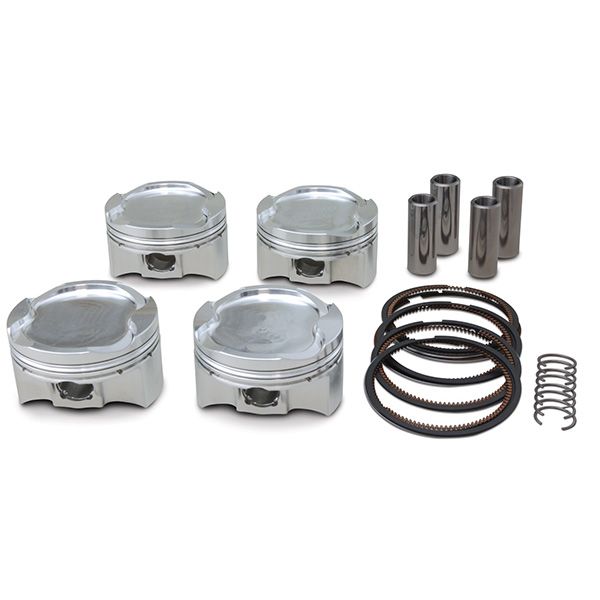

JE Pistons for the Honda B-Series with VTEC Head
- 9.0:1 Compression
- 81.5 Bore
- Dome/Dish requires no deburring or preparation
- 2618 T6 high tensile forged aluminum
- Dome and dishes feature smooth flowing radii for excellent flame travel.
- 1.0 x 1.2 x 2.8mm ring widths.
- .827 x 2.250 straight wall carbon steel wrist pin provided.
- Pin fitting and wire locks included
- Rings Now Included
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1994 | Acura | Integra | GS-R |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | Type R |
| 1999 | Acura | Integra | GS-R |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
