Product Details
| Part Number: | 166035 |
| Brand: | JE Pistons |
| Bore: | 87mm |
| Compression Ratio: | 11.5:1 |
| Stroke (mm): | 90.7 |
| C/D (mm): | 31.0 |
| Head CC's: | 53.8 |
| Dome CC's: | 11.3 |
| Includes Piston Rings: | Yes |
| CARB Approved: | No |

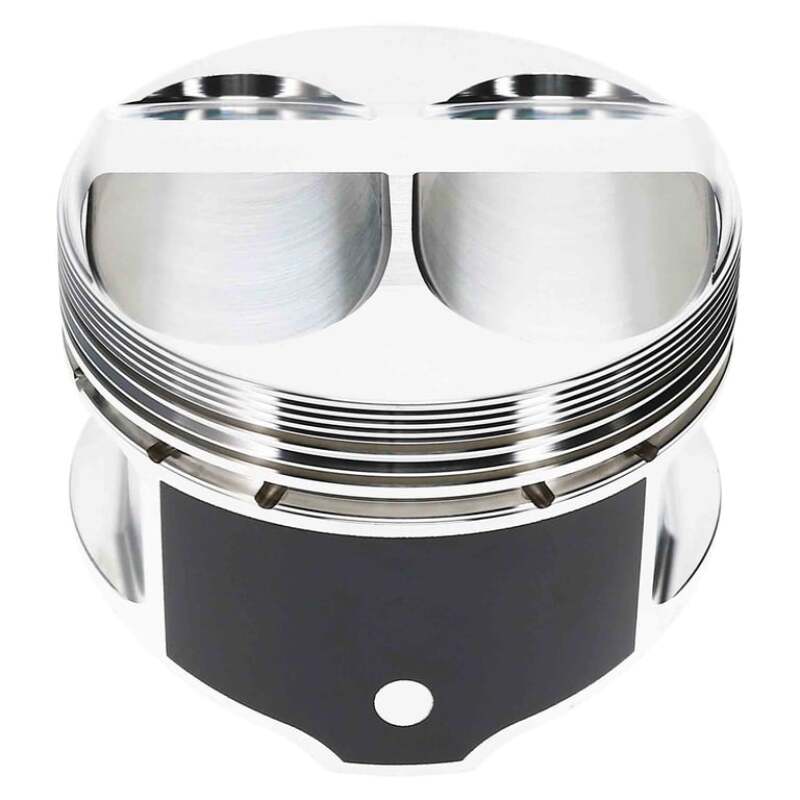

The JE Pistons 166035 Forged Piston Kit is designed for high-compression Honda H22A engine builds where strength, precision, and durability are priorities. Manufactured from 2618 forged aluminum, these pistons provide the strength required for demanding naturally aspirated performance applications while maintaining JE's precise piston-to-cylinder and ring-control characteristics. PerformanceParts.com
Part number 166035 features an 87.0mm standard bore, 31.0mm (1.220") compression height, and dome-style crown for increased compression. The pistons are designed around the H22A's 90.7mm stroke and approximately 143mm connecting rod. Each piston weighs approximately 354 grams. PerformanceParts.com
An important installation consideration is that this piston set requires the H22 block to be sleeved and should not be installed directly into the factory FRM cylinder walls. Additionally, JE catalog information identifies this particular high-compression 166035 configuration as not intended for turbocharged or nitrous applications. Real Street Performance
Features
- Forged 2618 aluminum alloy construction
- Designed specifically for Honda H22A-series engines
- 87.0mm standard bore
- High-compression dome piston design
- Approximately 11.7:1–12.0:1 compression ratio, depending on combustion-chamber volume, gasket thickness, deck height, and final engine configuration
- 31.0mm / 1.220" compression height
- 22mm / 0.866" wrist pin diameter
- Approximately 354g piston weight
- Full-round forging/skirt design
- Precision CNC-machined construction
- Designed around the factory 90.7mm stroke
- Designed for approximately 143mm factory-length connecting rods
- Includes wrist pins and pin locks
- JE Pro Seal piston rings are listed with the kit by current retailers
- Sold as a matched set of 4 pistons
- Made for performance and competition-oriented H22 builds
- Requires aftermarket cylinder sleeves
- Not intended for turbo or nitrous use
Specifications
- Specification JE 166035
- Manufacturer JE Pistons
- Part Number 166035
- Engine Family Honda H22A
- Piston Quantity 4
- Bore 87.00mm / 3.425"
- Bore Size Standard
- Stroke 90.7mm
- Rod Length Approx. 143mm
- Compression Height 31.00mm / 1.220"
- Piston Material 2618 Forged Aluminum
- Piston Style Dome
- Dome Volume 11.3cc in JE catalog data*
- Compression Ratio Approx. 11.7:1–12.0:1*
- Reference Chamber Volume 53.8cc
- Piston Weight Approx. 354g
- Wrist Pin Diameter 22mm / 0.866"
- Wrist Pin Style Floating
- Ring Package Approx. 1.2 / 1.2 / 2.8mm depending on current kit revision
- Recommended/Included Ring Set JE JC0004-3425
- Skirt Design Full Round
- Block Requirement Aftermarket sleeves required
- Turbo/Nitrous Not recommended for this piston configuration
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1993 | Honda | Prelude | VTEC |
| 1994 | Honda | Prelude | VTEC |
| 1995 | Honda | Prelude | VTEC |
| 1996 | Honda | Prelude | VTEC |
| 1997 | Honda | Prelude | Base |
| 1997 | Honda | Prelude | Type SH |
| 1998 | Honda | Prelude | Base |
| 1998 | Honda | Prelude | Type SH |
| 1999 | Honda | Prelude | Base |
| 1999 | Honda | Prelude | Type SH |
| 2000 | Honda | Prelude | Base |
| 2000 | Honda | Prelude | Type SH |
| 2001 | Honda | Prelude | Base |
| 2001 | Honda | Prelude | Type SH |
Engine Fitment
Honda 2.2L/2156CC - 4 Cylinder (H22A4)
Honda 2.2L/2156CC - 4 Cylinder (H22A1)
