Designed as a performance replacement for the factory engine and transmission mounting system, the Innovative Mounts 90750 provides increased drivetrain stability, reduced excessive engine movement, and improved throttle response compared with worn factory rubber mounts.

The Honda S2000's high-revving F20C and F22C engines deliver exceptional performance, but deteriorated factory mounts can allow unwanted drivetrain movement during aggressive acceleration, deceleration, and shifting. This movement can contribute to drivetrain clunking, inconsistent engine positioning, and a less connected driving experience.

The Innovative Mounts 90750 replaces the factory mounting components with durable steel assemblies featuring high-performance polyurethane bushings. These bushings are designed to resist excessive drivetrain movement while providing a degree of vibration isolation.

Unlike the billet aluminum B90750 kit, the steel 90750 package includes the rear transmission mount, providing a coordinated upgrade for the driver-side engine mount, passenger-side engine mount, and rear transmission mounting position.

Featuring CAD/CAM-engineered mounting geometry, stress-analyzed components, and Innovative Mounts' no-tear polyurethane bushing design, the 90750 is an excellent choice for daily-driven S2000s, naturally aspirated performance builds, supercharged and turbocharged applications, and dedicated motorsport vehicles.

Important: The Innovative Mounts 90750 is designed for factory-style F-Series engine and manual transmission applications. It is not a complete K-Series engine swap conversion kit.

Features

• 2000–2009 Honda S2000 Compatibility: Designed for AP1 and AP2 chassis.

• F-Series Engine Compatibility: Supports factory Honda F20C and F22C engine configurations.

• Manual Transmission Application: Engineered for the factory-style S2000 manual drivetrain.

• Direct-Replacement Design: Replaces the factory engine and transmission mounting components.

• Three-Mount Configuration: Includes driver-side, passenger-side, and rear transmission mounting positions.

• Durable Steel Construction: Provides strong mounting assemblies for demanding performance applications.

• Performance Polyurethane Bushings: Help reduce excessive drivetrain movement compared with conventional rubber mounts.

• No-Tear Bushing Design: Engineered to minimize unwanted engine movement while retaining some vibration isolation.

• CAD/CAM Engineered: Designed for accurate fitment and consistent mounting geometry.

• Stress-Analyzed Components: Developed to withstand demanding drivetrain loads.

• Improved Drivetrain Stability: Helps control unwanted engine and transmission movement during acceleration and shifting.

• Reduced Mount Deflection: Maintains more consistent drivetrain positioning under load.

• Improved Drivetrain Response: Firmer mounting provides a more connected drivetrain feel.

• Potential Wheel Hop Reduction: Reduced drivetrain movement may help minimize wheel hop during aggressive acceleration.

• Multiple Bushing Hardness Options: Available in 75A, 85A, and 95A polyurethane configurations.

• No Hood Modifications Required: Direct-replacement installation does not require hood trimming or notching.

• Street and Racing Applications: Suitable for properly configured daily-driven, autocross, road racing, and drag racing vehicles.

• Lifetime Warranty: Backed by Innovative Mounts' lifetime warranty, subject to manufacturer terms.

Popular Performance Applications

Honda S2000 AP1 Performance Builds

Provides upgraded engine and transmission mounting for F20C-powered S2000 applications.

Honda S2000 AP2 Performance Builds

Replaces the factory drivetrain mounts on compatible F22C1-powered vehicles.

Naturally Aspirated F20C/F22C Builds

Suitable for S2000s equipped with upgraded intake systems, headers, exhaust components, camshafts, and other naturally aspirated performance upgrades.

Supercharged Honda S2000 Applications

Helps control excessive drivetrain movement in properly configured supercharged builds.

Turbocharged Honda S2000 Applications

Provides increased mounting rigidity for modified forced-induction applications.

Daily-Driven Performance Vehicles

The 75A bushing option provides increased drivetrain rigidity while retaining some vibration isolation for street-oriented builds.

Autocross and Road Racing

Reduced mount deflection helps maintain more consistent drivetrain positioning during acceleration, braking, and cornering.

Drag Racing Applications

Firmer polyurethane bushings help resist excessive drivetrain movement during aggressive launches.

Worn Factory Mount Replacement

An excellent upgrade when the original rubber or fluid-filled engine mounts have deteriorated, separated, or begun allowing excessive drivetrain movement.

Additional Information

• Manufacturer: Innovative Mounts
• Part Number: 90750
• Product Type: Steel Replacement Engine & Transmission Mount Kit
• Vehicle Application: 2000–2009 Honda S2000
• Chassis Compatibility: AP1 / AP2
• Engine Compatibility: Honda F20C / F22C1
• Transmission Compatibility: Factory-Style 6-Speed Manual
• Mount Construction: Steel
• Bushing Material: Performance Polyurethane
• Available Bushing Hardness Options: 75A / 85A / 95A
• Mounting Configuration: Three-Mount Replacement System
• Driver-Side Engine Mount: Innovative Mounts 90710
• Passenger-Side Engine Mount: Innovative Mounts 90720
• Rear Transmission Mount: Innovative Mounts 90730
• Billet Aluminum Alternative: Innovative Mounts B90750
• Engineering: CAD/CAM Designed and Stress Analyzed
• Installation Type: Direct Replacement
• Hood Modifications: Not Required
• Manufacturer-Listed Weight: Approximately 17 lbs
• Warranty: Manufacturer Lifetime Warranty, Subject to Terms

Available Polyurethane Bushing Hardness Options

75A – Black – Street / Performance

The softest available bushing option for the 90750.

Recommended for daily-driven and performance-oriented Honda S2000 applications where improved drivetrain stability is desired while retaining some vibration isolation.

Manufacturer horsepower guidance: approximately 250–400 HP.

85A – Grey – Performance / Race

Provides increased drivetrain rigidity for modified engines, aggressive driving, and competition applications.

Manufacturer horsepower guidance: approximately 400–500 HP.

95A – Red – Extreme Race

The stiffest available polyurethane option, intended for high-output engines and dedicated racing applications.

Manufacturer horsepower guidance: 500+ HP.

These horsepower ranges are general manufacturer bushing selection guidelines rather than guaranteed load ratings or minimum horsepower requirements.

Important: Increasing bushing hardness generally increases noise, vibration, and harshness transmitted into the vehicle cabin. The 75A option is typically the most appropriate starting point for a street-driven S2000.

Innovative Mounts 90750 vs. B90750

Innovative Mounts 90750 – Steel Replacement Mount Kit

• Steel construction

• Designed for 2000–2009 Honda S2000 AP1/AP2

• Compatible with factory F20C/F22C manual drivetrain configurations

• Includes driver-side engine mount

• Includes passenger-side engine mount

• Includes rear transmission mount

• Available with 75A, 85A, or 95A polyurethane bushings

Innovative Mounts B90750 – Billet Aluminum Replacement Mount Kit

• Billet aluminum construction

• Designed for 2000–2009 Honda S2000 AP1/AP2

• Compatible with factory F20C/F22C manual drivetrain configurations

• Includes driver-side engine mount

• Includes passenger-side engine mount

• Does not include rear transmission mount

• Available with polyurethane bushing options and manufacturer-listed solid billet configurations

Important: Customers choosing the B90750 billet aluminum kit must purchase the Innovative Mounts 90730 rear transmission mount separately if they want to upgrade all three mounting positions.

Innovative Mounts 90750 vs. Individual Mounts

Innovative Mounts 90710: Individual driver-side engine mount.

Innovative Mounts 90720: Individual passenger-side engine mount.

Innovative Mounts 90730: Individual rear transmission mount.

Innovative Mounts 90750: Complete steel replacement mounting package combining the three primary mounting positions.

The 90750 is an excellent choice when replacing or upgrading the factory drivetrain mounting system as a coordinated package.

Common Reasons for Replacement

• Cracked Factory Rubber: Aging rubber can deteriorate and allow excessive engine movement.

• Deteriorated Factory Mounts: Original mounting components may lose their ability to control drivetrain movement.

• Leaking Factory Mounts: Fluid-dampened mounting components can lose effectiveness when damaged.

• Separated Mount Bushings: Worn factory mounts may develop excessive movement under load.

• Excessive Engine Rocking: Firmer polyurethane helps control unwanted drivetrain movement.

• Clunking During Acceleration: Worn mounts may allow excessive movement that results in noticeable drivetrain noise.

• Clunking During Gear Changes: Excessive drivetrain movement can contribute to noticeable movement during shifting.

• Reduced Drivetrain Stability: Performance polyurethane helps maintain more consistent engine and transmission positioning.

• Performance Engine Upgrades: Modified F20C and F22C engines can benefit from firmer drivetrain mounting.

• Track and Racing Applications: Provides increased mount rigidity for demanding driving conditions.

• Coordinated Mount Replacement: Replaces the three primary mounting positions together rather than upgrading only one mount.

Installation Notes

1. Verify Vehicle Compatibility: Confirm that the vehicle is a 2000–2009 Honda S2000 AP1 or AP2 equipped with a compatible F-Series engine and manual transmission.

2. Inspect the Existing Mounts: Check the factory engine and transmission mounts for cracked rubber, fluid leakage, separation, corrosion, or excessive movement.

3. Support the Drivetrain: Properly support the engine and transmission before removing the factory mounting components.

4. Remove the Factory Mounts: Follow the applicable Honda S2000 factory service procedures.

5. Inspect Mounting Locations: Check the chassis, subframe, transmission crossmember, and mounting brackets for damage or corrosion.

6. Install the Driver-Side Engine Mount: Position the Innovative Mounts 90710 in the factory driver-side mounting location.

7. Install the Passenger-Side Engine Mount: Position the Innovative Mounts 90720 in the factory passenger-side mounting location.

8. Install the Rear Transmission Mount: Position the Innovative Mounts 90730 at the factory rear transmission mounting location.

9. Verify Mount Alignment: Ensure all mounts and brackets are properly aligned without excessive preload or binding.

10. Install the Required Hardware: Use the hardware specified by Innovative Mounts and reuse applicable factory fasteners where instructed.

11. Torque Mounting Fasteners: Follow the Honda S2000 factory service manual and Innovative Mounts installation instructions.

12. Inspect Drivetrain Clearance: Verify that the engine, transmission, driveshaft, exhaust, and surrounding chassis components have adequate clearance.

13. Check for Additional Vibration: Some increase in noise, vibration, and harshness is normal when upgrading from factory rubber mounts to performance polyurethane.

14. Perform a Final Inspection: Verify proper mounting alignment and secure hardware before operating the vehicle.

15. Recheck After Initial Use: Inspect the mounts and mounting hardware after the initial driving period.

Important: Innovative Mounts advises that mounts showing bolt impressions from installation cannot be returned or exchanged. Confirm fitment before installation.

Professional installation is strongly recommended.

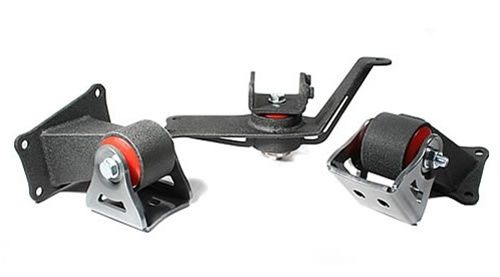

What's Included

The Innovative Mounts 90750 steel replacement mount kit includes:

• 1 × Innovative Mounts 90710 Driver-Side Steel Engine Mount

• 1 × Innovative Mounts 90720 Passenger-Side Steel Engine Mount

• 1 × Innovative Mounts 90730 Steel Rear Transmission Mount

• Performance polyurethane bushings in the selected hardness configuration

Additional Information

This listing is for the steel replacement engine and transmission mount kit.

The following components are not included unless separately specified:

• Engine or transmission assemblies

• K-Series engine swap conversion components

• Aftermarket transmission adapters

• Additional mounting brackets for non-factory drivetrain configurations

• Hardware not specified by the manufacturer

Verify the exact supplied fasteners and small components against the manufacturer packaging and installation instructions.

Upgrade your Honda S2000 with the Innovative Mounts 90750 Steel Replacement Engine & Transmission Mount Kit, engineered specifically for 2000–2009 Honda S2000 AP1 and AP2 applications equipped with factory F20C or F22C engines and manual transmissions.

Featuring durable steel construction, CAD/CAM engineering, stress-analyzed components, performance polyurethane bushings, and a direct-replacement mounting design, the 90750 provides improved drivetrain stability and reduced excessive engine movement compared with worn factory mounts.

Unlike the billet aluminum B90750 kit, the steel 90750 includes the rear transmission mount, making it an excellent choice for enthusiasts looking to upgrade all three primary drivetrain mounting positions together.

Whether you're replacing deteriorated OEM mounts, upgrading a daily-driven S2000, or preparing a naturally aspirated or forced-induction performance build, Innovative Mounts delivers a dependable performance mounting solution.
